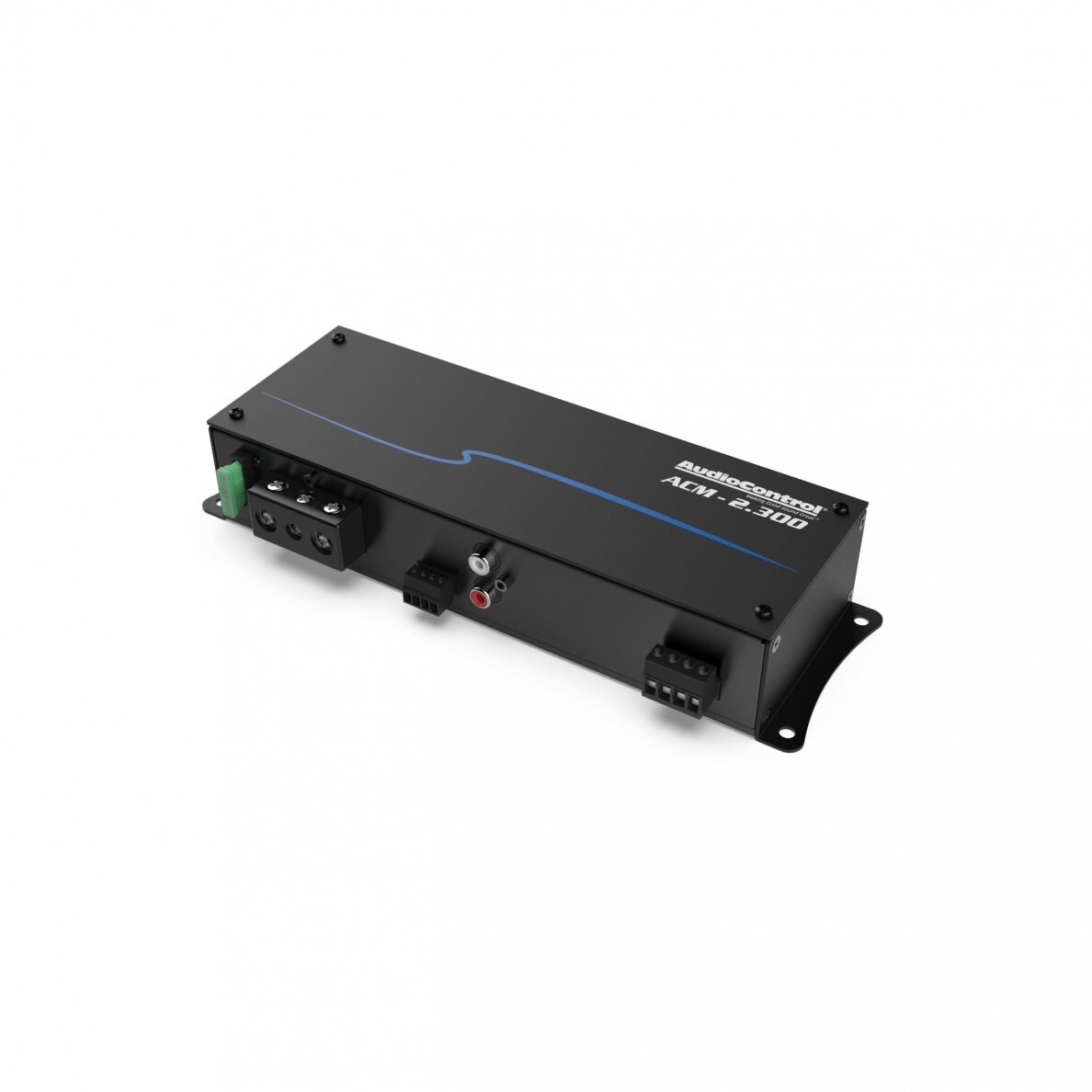

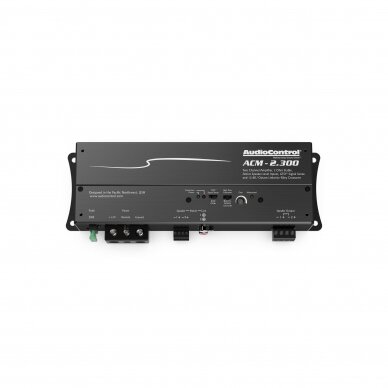

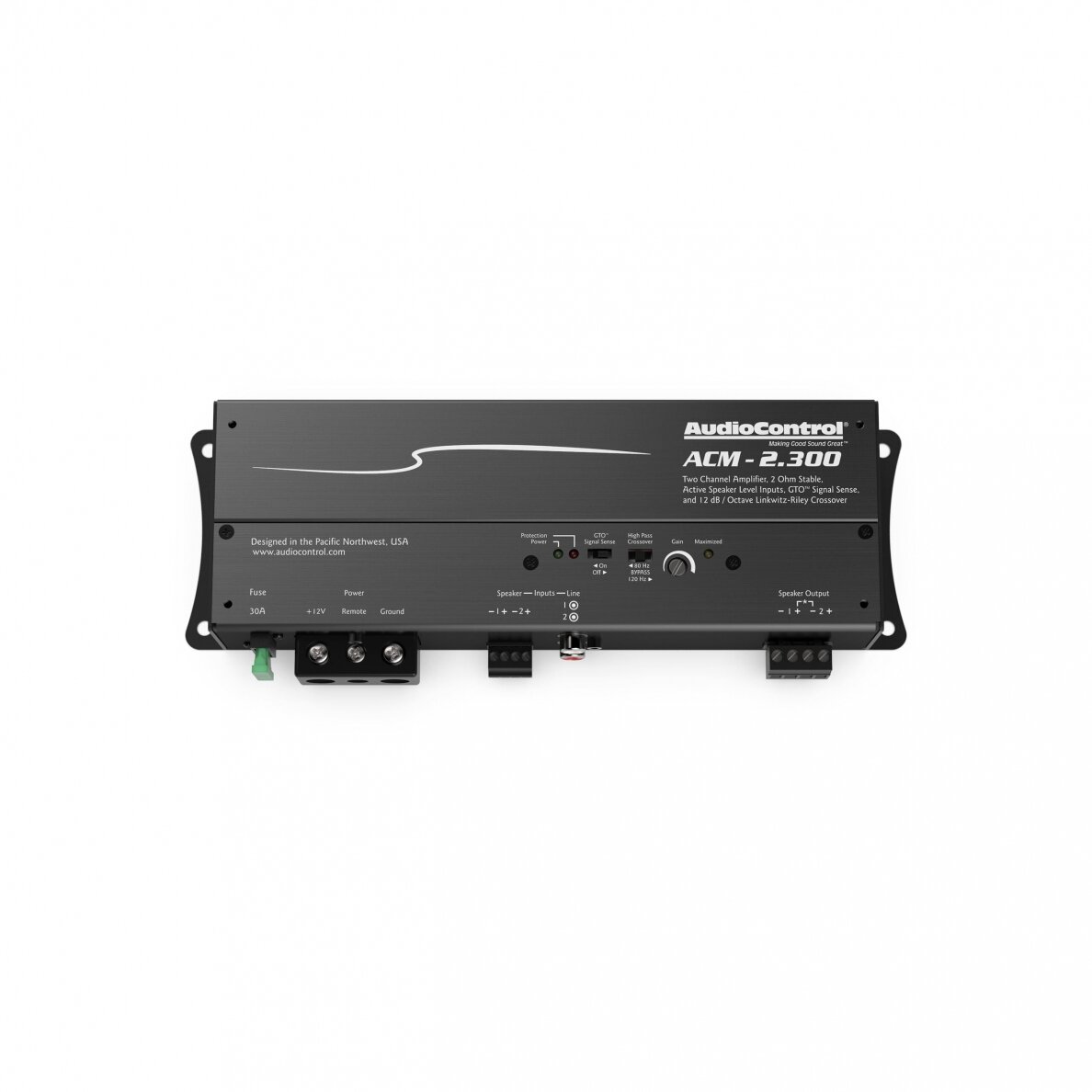

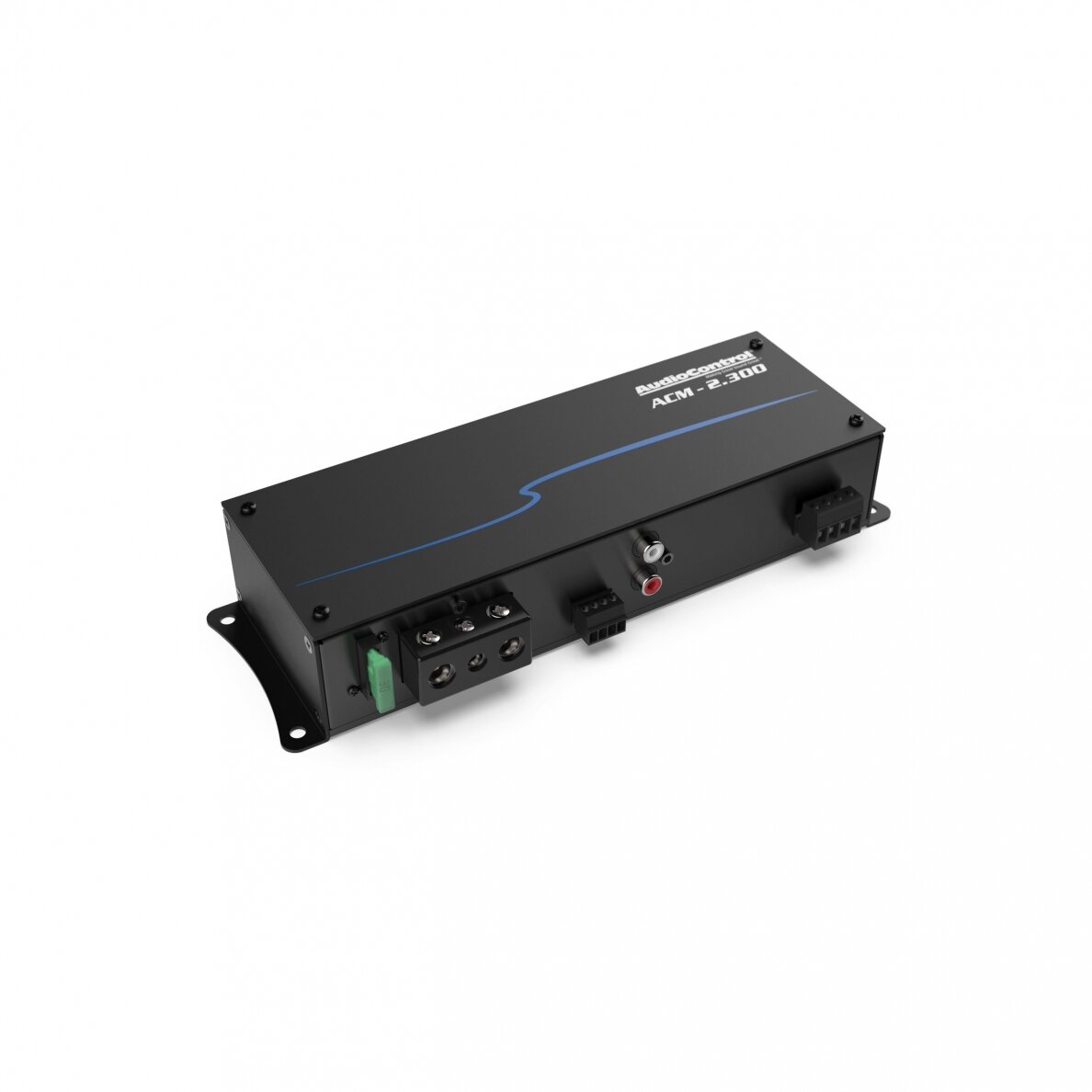

Audio Control ACM-2.300

Specifications:

Inputs
Preamp Inputs: 2 Balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 2
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 75 W x 2 RMS
2 Ω – 150 W x 2 RMS
Bridged 4 Ω – 300 W RMS

Performance
Frequency Response: 10 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.01%
Power / Ground Wire Gauge: 10 to 4 AWG wire
Fuse Rating: 1 x 30 A
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
PFM Subsonic Filter: 32 Hz

Weights & dimensions
Dimensions: 9.4″W x 3.0″D x 1.75″H
Weight: 2.1 lbs. (0.95 kg)

In the box: ACM-2.300, Speaker Connectors, Fuse, Manual, Warranty

Features
2 x 150 watts @ 2 ohms
2 x 75 watts @ 4 ohms
300 watts @ 4 ohms bridged
GTOTM Signal Sense
Active speaker-level inputs for OEM integration
RCA Line Inputs
Linkwitz-Riley Crossover
Reversible Cover Plate
Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
