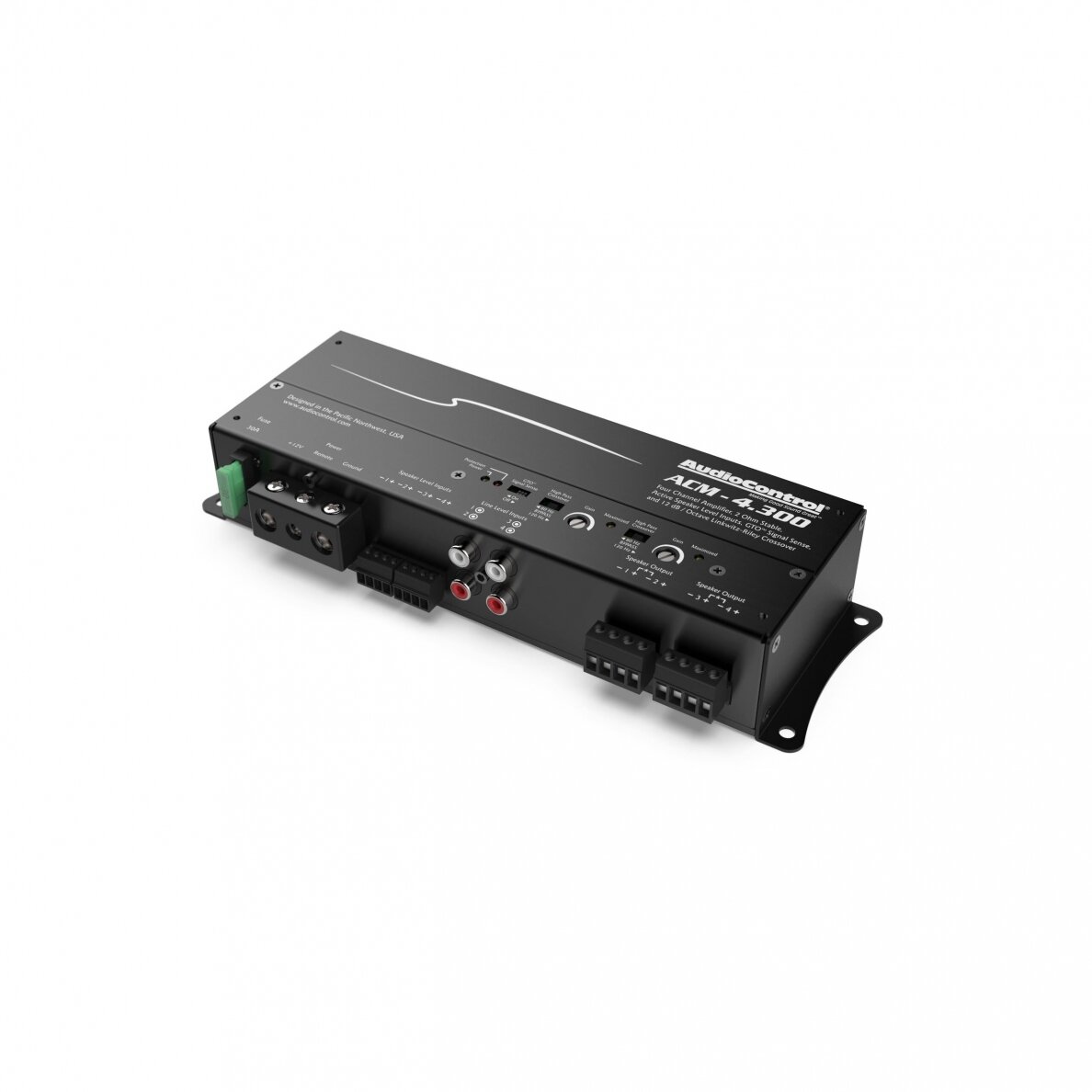

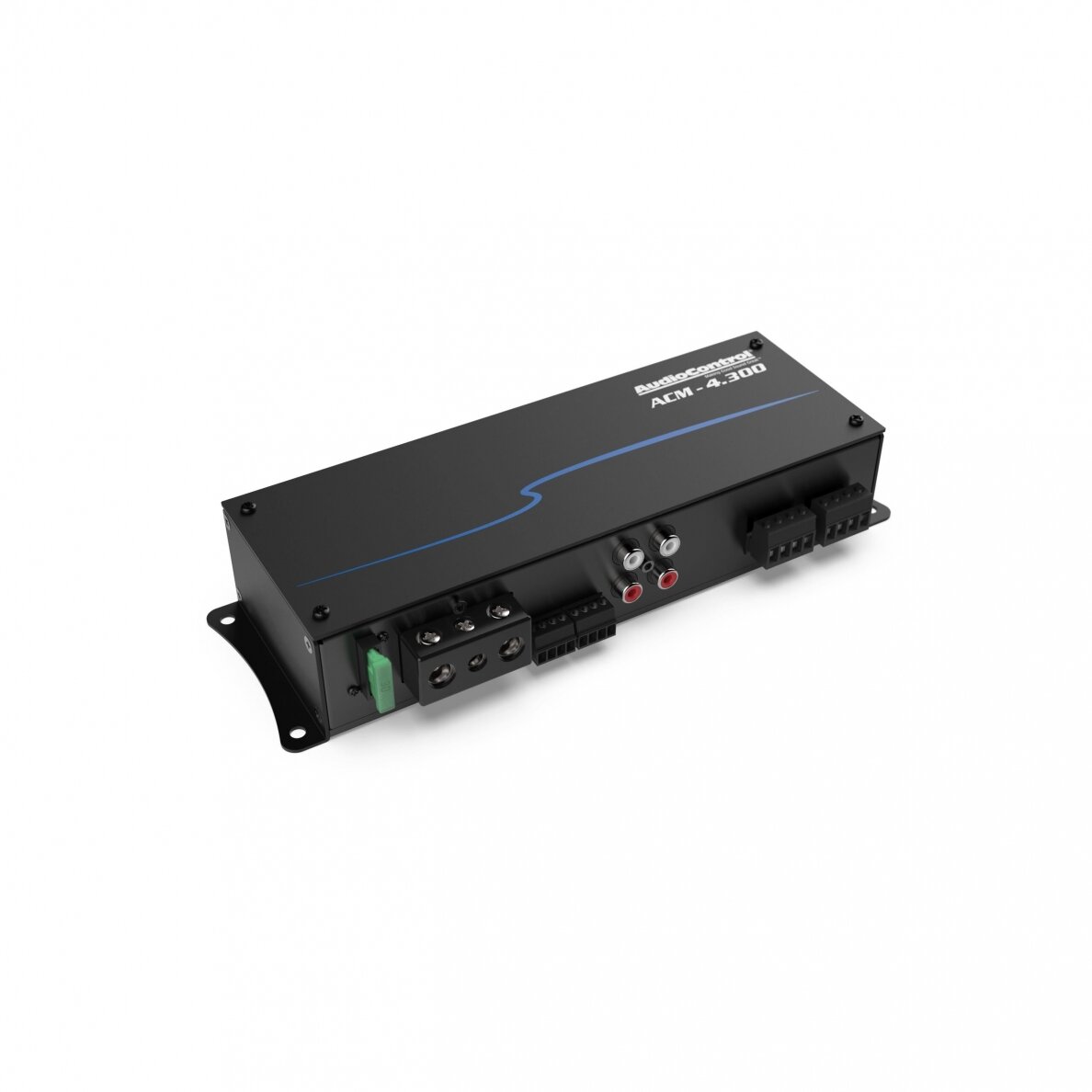

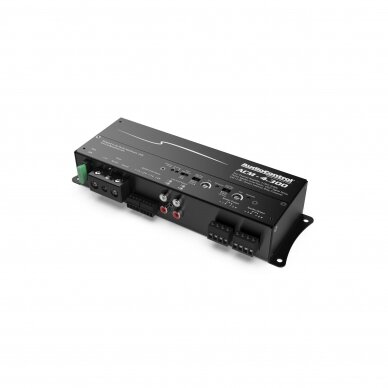

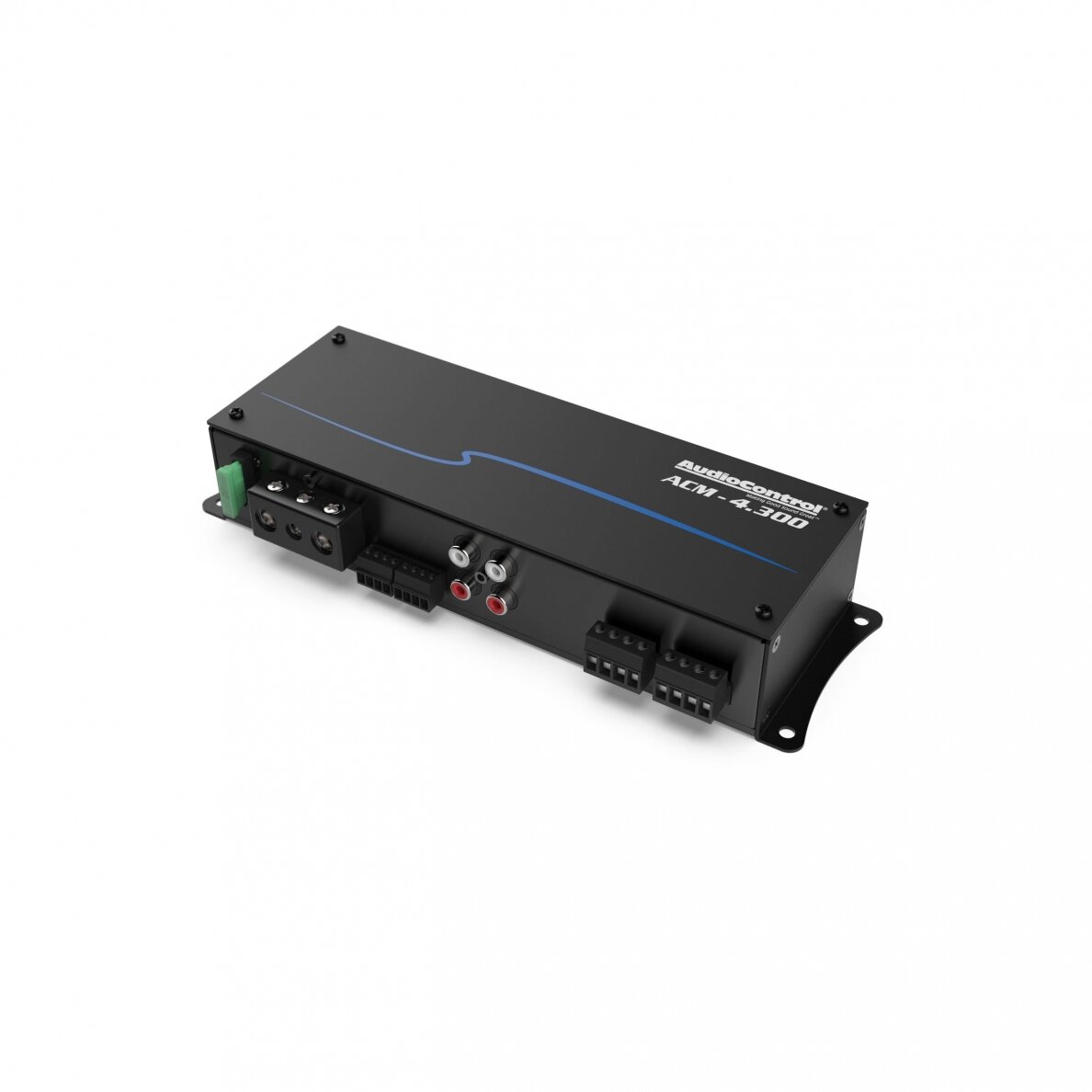

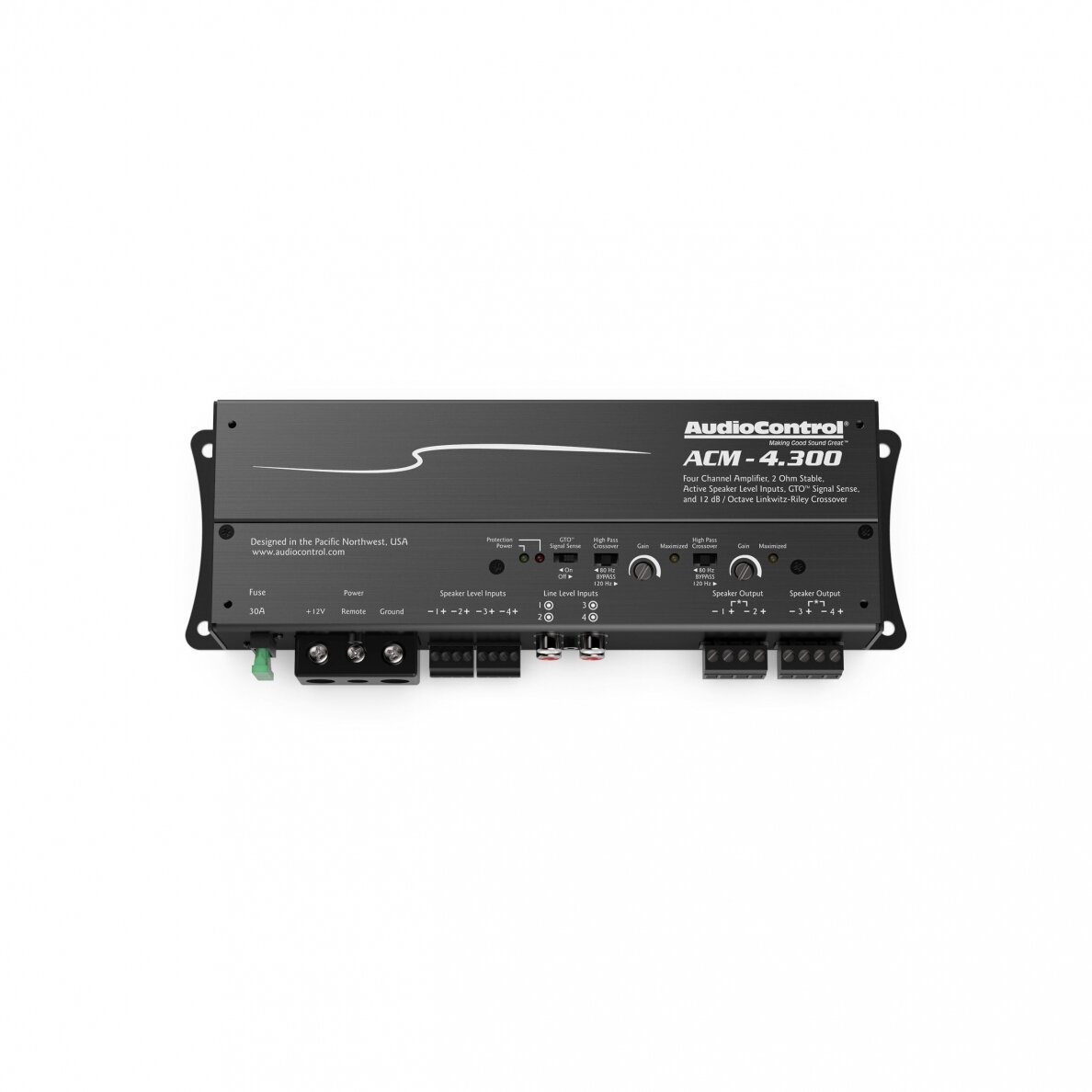

Audio Control ACM-4.300
Audio Control ACM-4.300
GamintojasKanalų skaičius4-
Specifications:
Inputs
Preamp Inputs: 4 Balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 4
Speaker Level Input Voltage Range: 3 V – 40 VrmsOutputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 50 W x 4 RMS
2 Ω – 75 W x 4 RMS
Bridged 4 Ω – 150 W RMSPerformance
Frequency Response: 10 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.01%
Power / Ground Wire Gauge: 10 to 4 AWG wire
Fuse Rating: 1 x 30 A
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
PFM Subsonic Filter: 32 HzWeights & dimensions
Dimensions: 9.4″W x 3.0″D x 1.75″H
Weight: 2.2 lbs. (0.98 kg)Features
4 x 75 watts @ 2 ohms
4 x 50 watts @ 4 ohms
150 watts @ 4 ohms bridged
GTOTM Signal Sense
Active speaker-level inputs for OEM integration
RCA Line Inputs
Linkwitz-Riley Crossover
Reversible Cover Plate
Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
