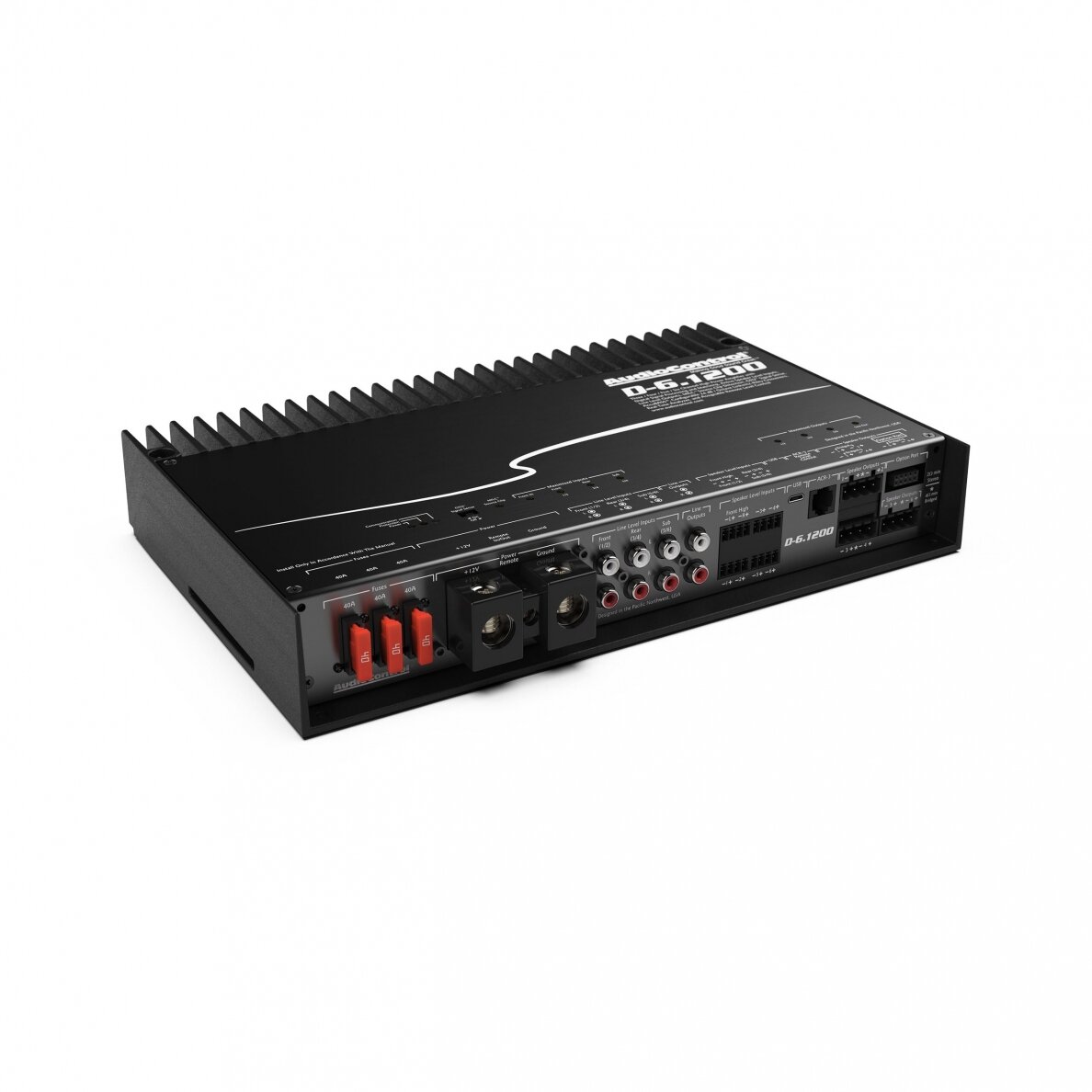

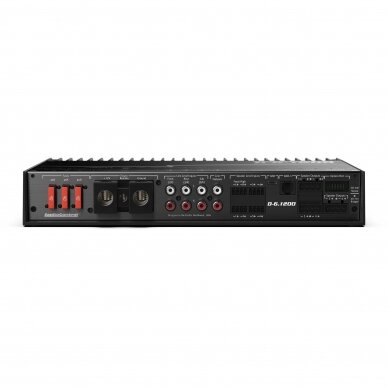

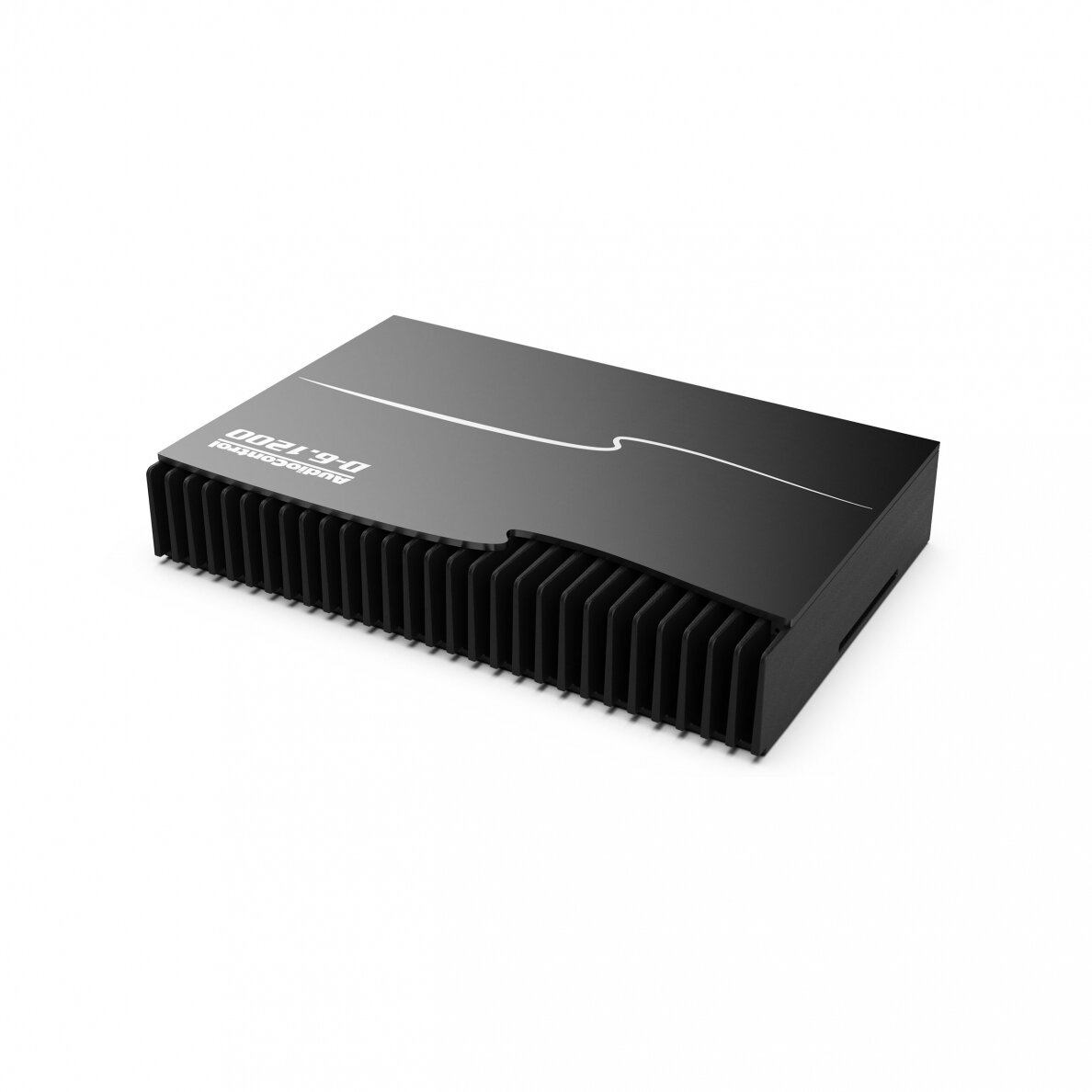

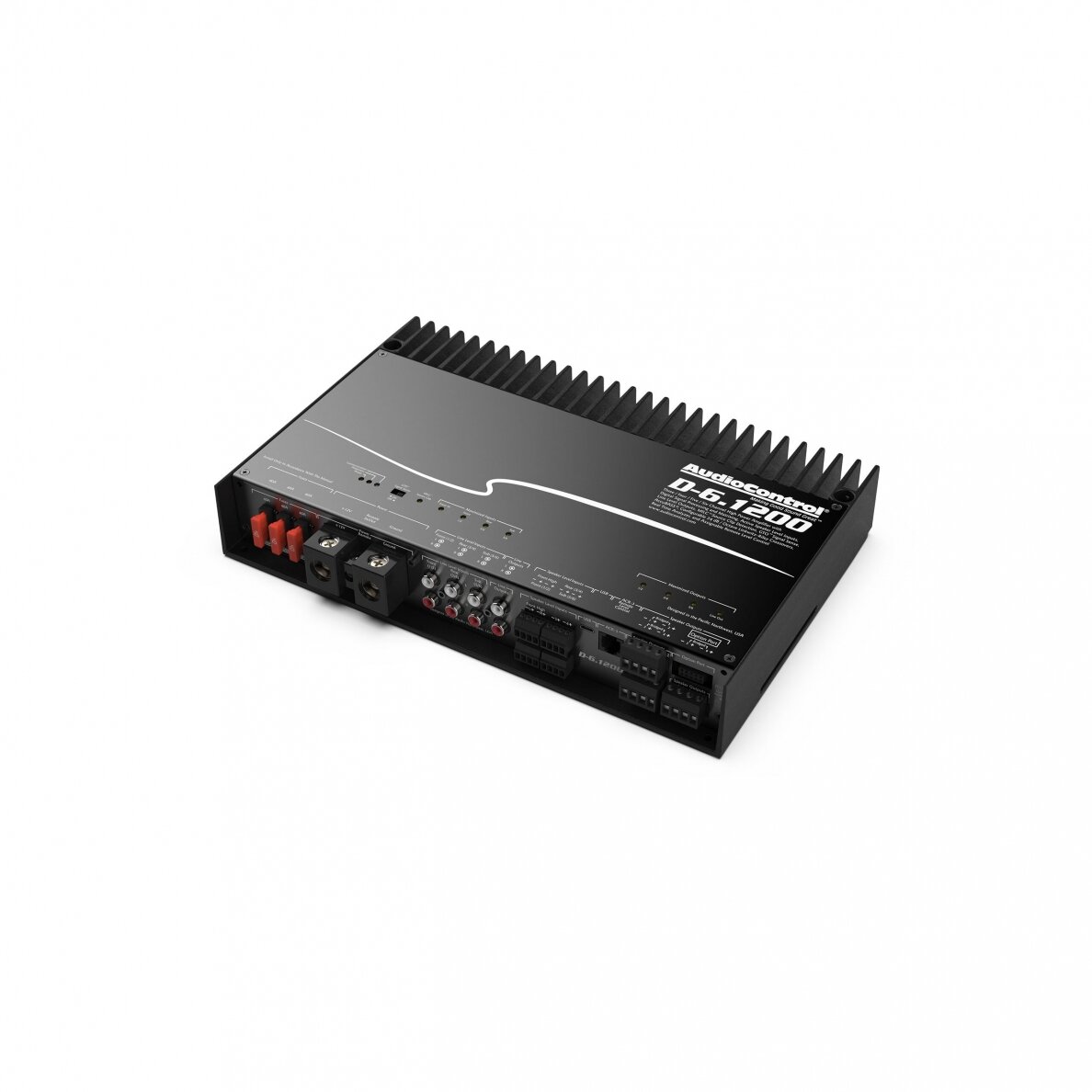

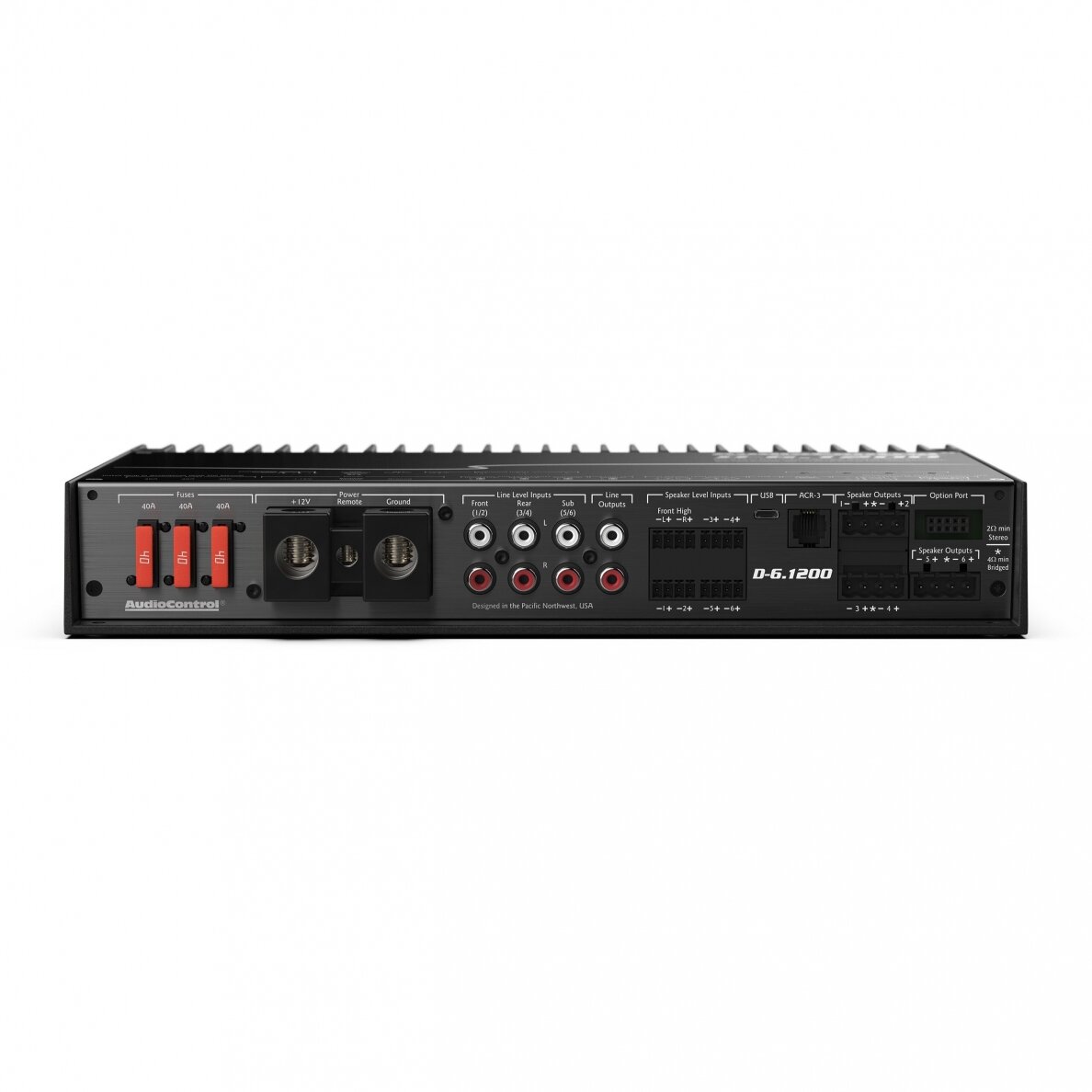

Audio Control D-6.1200

specifications:

Inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 250 mV – 8 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 125 W x 6 RMS
2 Ω – 200 W x 6 RMS
Bridged 4 Ω – 400 W RMS
Preamp Outputs: 2
Maximum Preamp Output: 8.5 V RMS

Performance
Frequency Response: 20 Hz – 24 kHz
Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Power / Ground Wire Gauge: 8 to 3 AWG wire
Fuse Rating: 3 x 40 A

Weights & dimensions
Dimensions: 12.0″W x 8.0″D x 2.1″H
Weight: 7.1 lbs. (3.2 kg)

In the box: D-6.1200, Speaker Connectors, Fuses, Manual, Warranty

Features
Built-in DSP
Configurable as 6/5/4/3 channel amplifier
6 x 200 watts @ 2 ohms
6 x 125 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILCTM Maximum Input Level Control (Patent Pending)
GTOTM Signal Sense
Active speaker-level inputs (8 channels) for OEM integration
6 preamp inputs
2 assignable preamp outputs
Solid One-Piece Aluminum Chassis
Input and Output RTA for precise and informed tuning
Input and Output Delay
12 and 24 dB/octave Linkwitz-Riley crossovers
30 band equalizer
Optional ACR-3 remote for preset recall and level control
Optional AC-BT24 Bluetooth Streamer/Programmer
DM Smart DSP app available in downloads for Mac/PC
