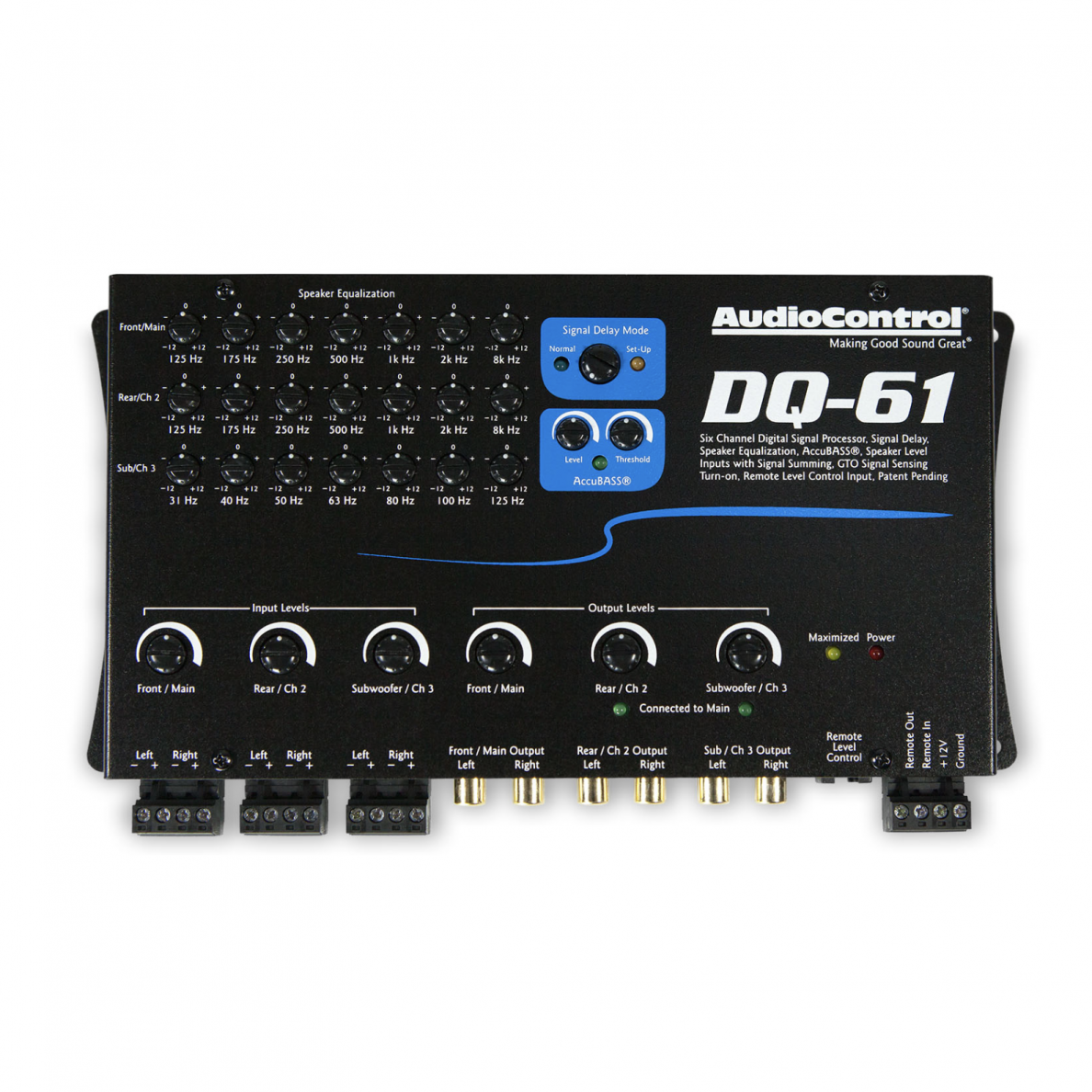

Audio Control DQ-61

Features
User friendly Signal Delay enhances the acoustical alignment between the left and right channels plus the front and subwoofer channels
Individual equalization controls for the front, rear and subwoofer channels for simple yet precise system tuning
Six channels of active speaker level inputs – accepts up to 400 watts per channel
AccuBASS® – AudioControl’s patented pending processing to correct the bass roll-off in factory source units
ACR-3 Dash Control Remote allows for control of the subwoofer level plus processing bypass which makes it ideal for demonstrations
Internal Channel Summing – Easy interface with factory installed amplifiers with built-in crossovers
GTOTM (Great Turn-On) Circuit – Powers up the DQ-61 when it detects signal on the main speaker level input
Discrete Input and output level controls
Free iOS Mobile Tools app with DQ-61 Delay module

Specifications

Inputs
Speaker Level Inputs: 3 (6 channels)
Maximum Input (speaker level): 400W per channel at 4Ω
Input Impedance: 20kΩ

Outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 7.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω

Performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
Equalizer Frequencies (front/rear): 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
Equalizer Frequencies (sub): 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz
Signal Delay Max (Left/Right): 10ms
Signal Delay Max (Front/Sub): 35ms

Control
Remote In
12VDC Remote Out (always active when unit is on)

General
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A

Weights & dimensions
Dimensions: 8.6”W x 5”D x 1.25”H
Weight: 3.0lbs (1.4kg)

In the box: DQ-61, ACR-3 Remote, Speaker and Power connectors, Manual, Warranty
