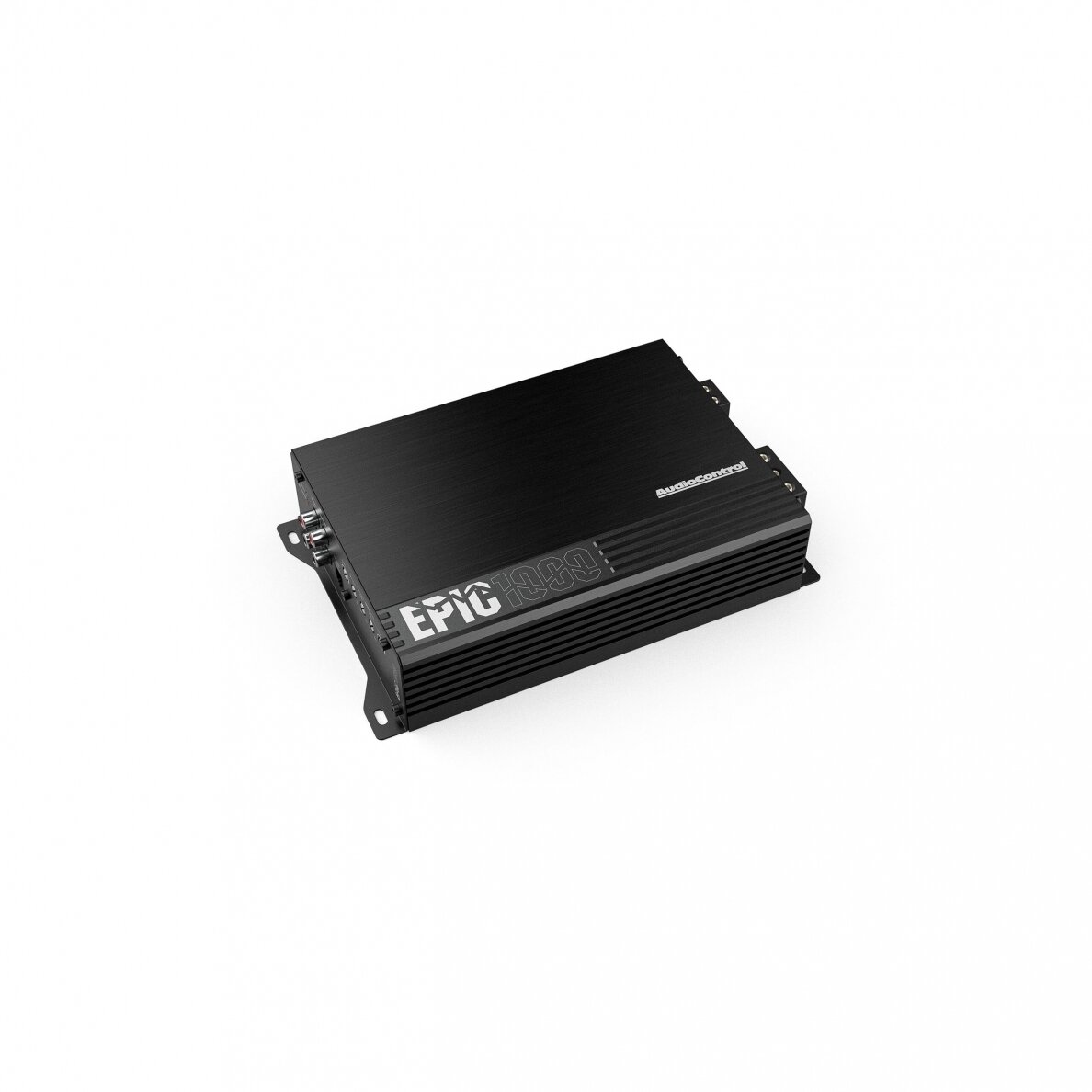

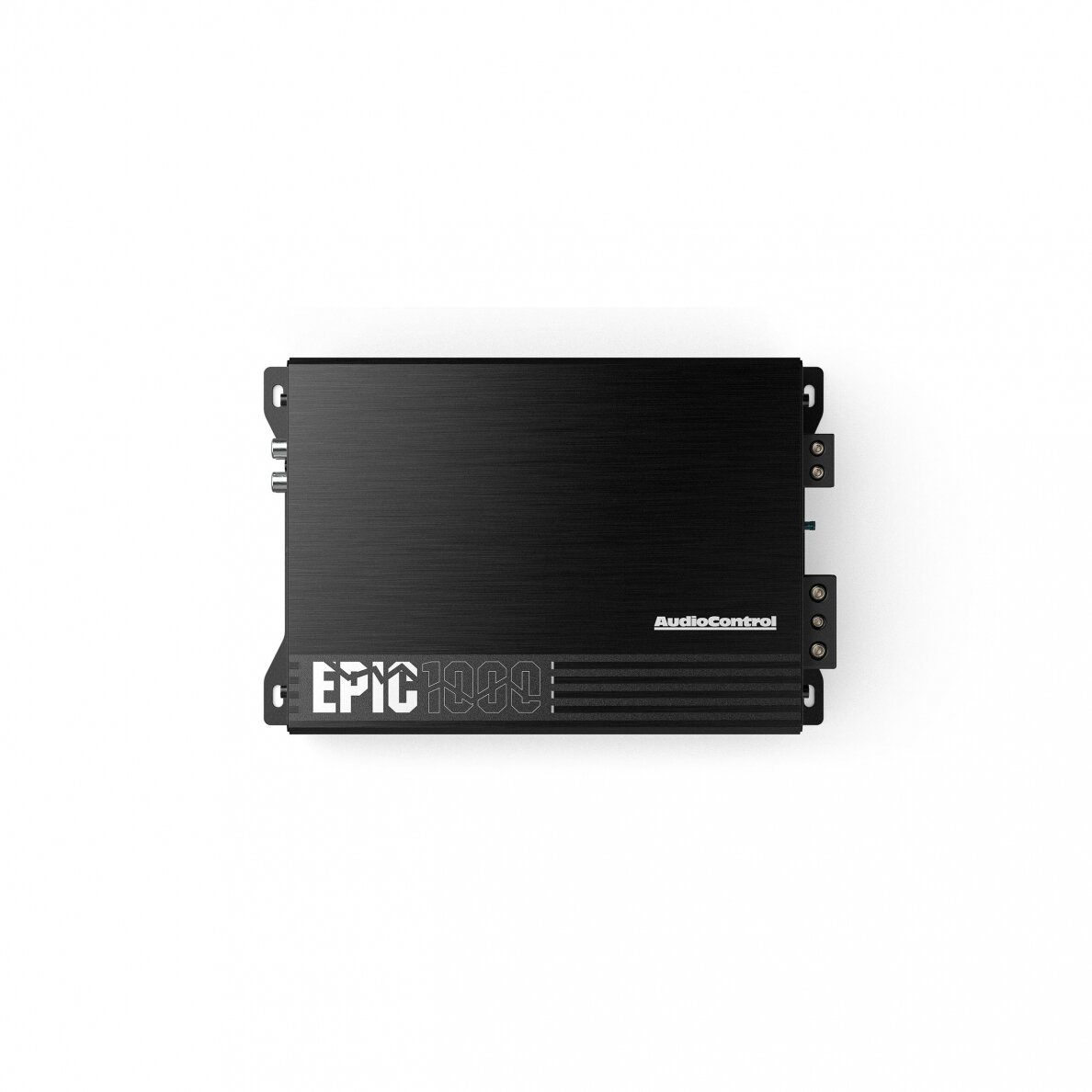

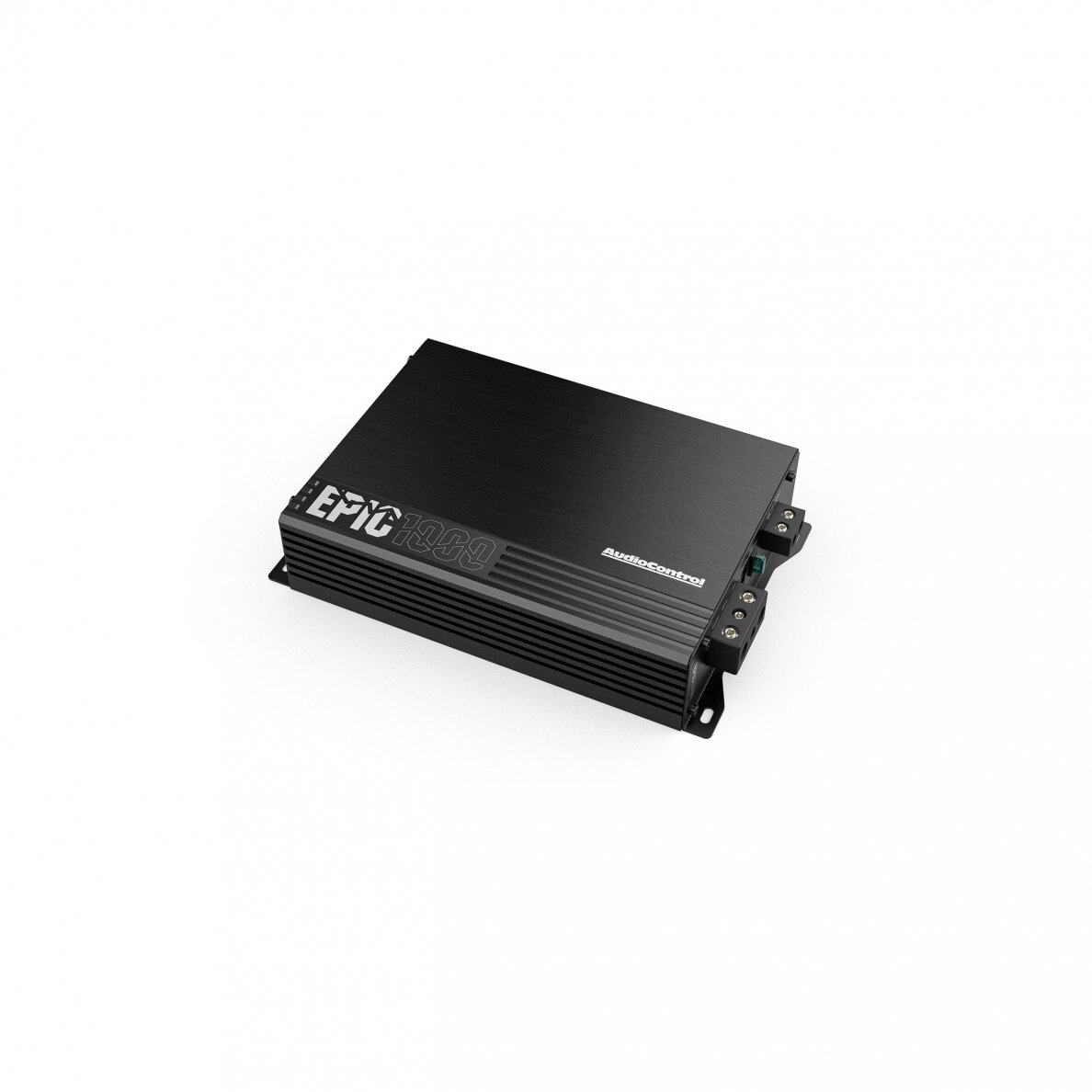

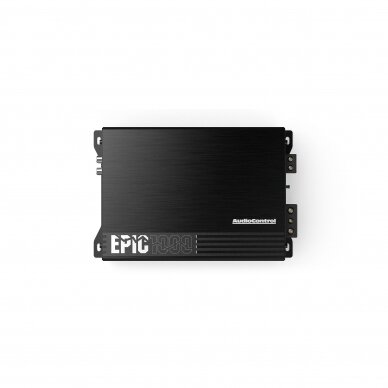

Audio Control Epic 1000

Specifications

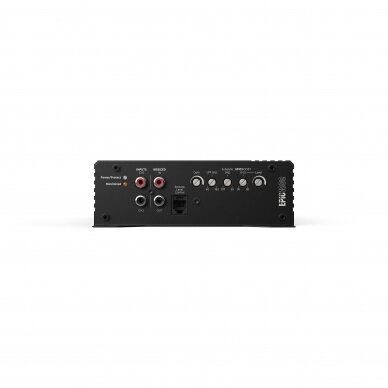

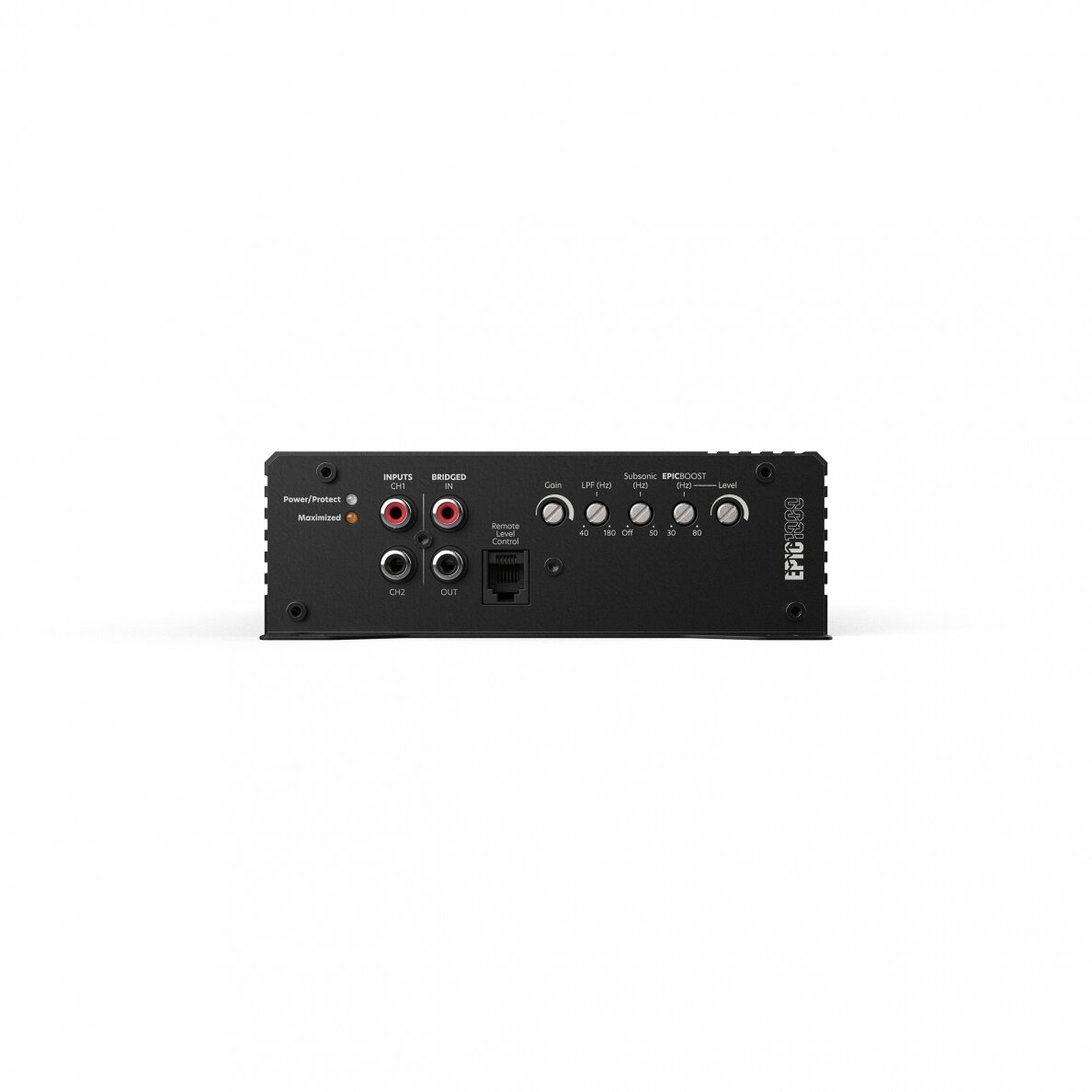

Inputs
Line-Level Inputs: 500mV – 6V RMS

Outputs
Continuous Power (RMS) @ 14.4V
1 x 400 Watts @ 4 ohms
1 x 700 Watts @ 2 ohms
1 x 1000 Watts @ 1 ohm
1 x 2000 Watts @ 2 ohms Bridged (Strapped)

Remote level control
Included

Weights & dimensions
DIMENSIONS: 6.1″ W x 9.41″ L x 2.01″ H

Performance
Frequency Response (+/- 1 dB): 10 Hz – 190 Hz
S/N Ratio: 92.1 dBa, Ref 400 Watts @ 4 ohms

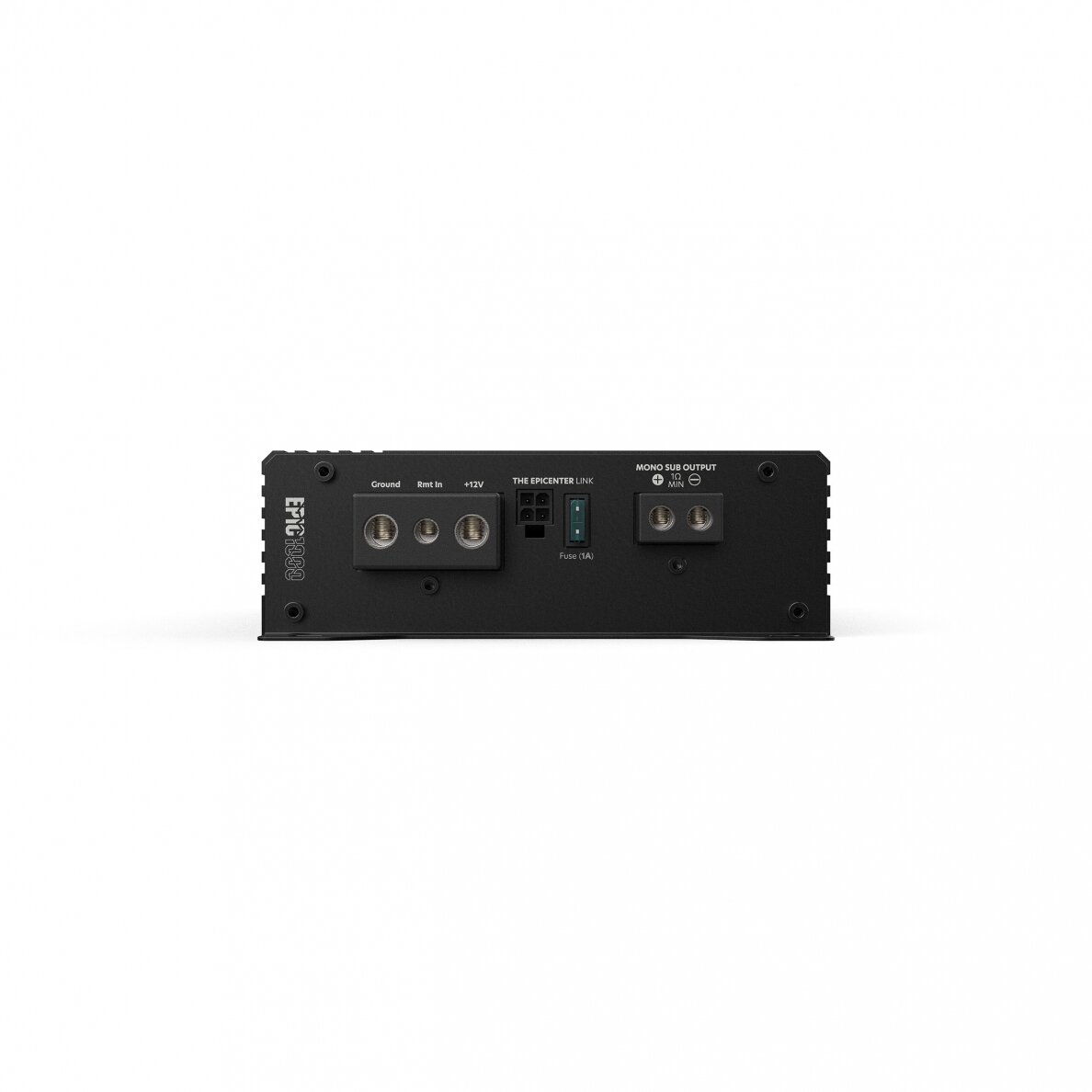

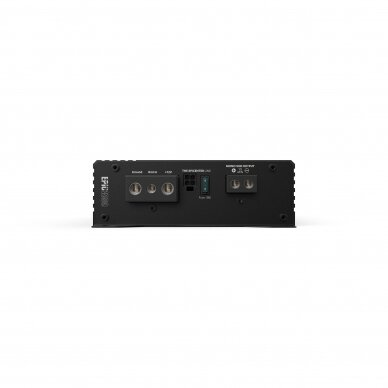

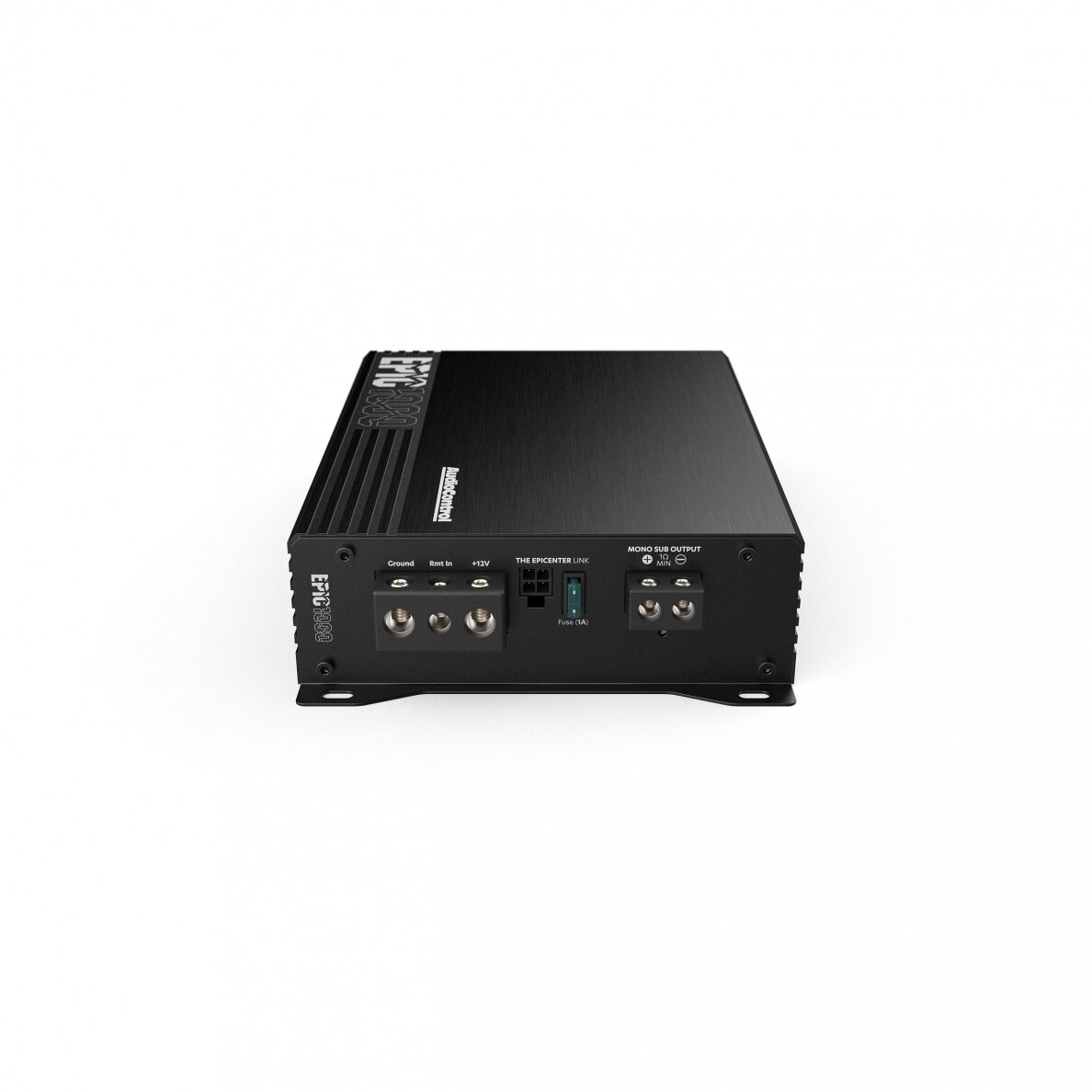

Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 100 Amps
Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
EPIC Boost: Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB
Speaker Terminal Wire Gauge: 8 AWG
Strapable: Yes
Epicenter Link: Yes

In the box: EPIC1000, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1m Harness), Manual, Warranty
