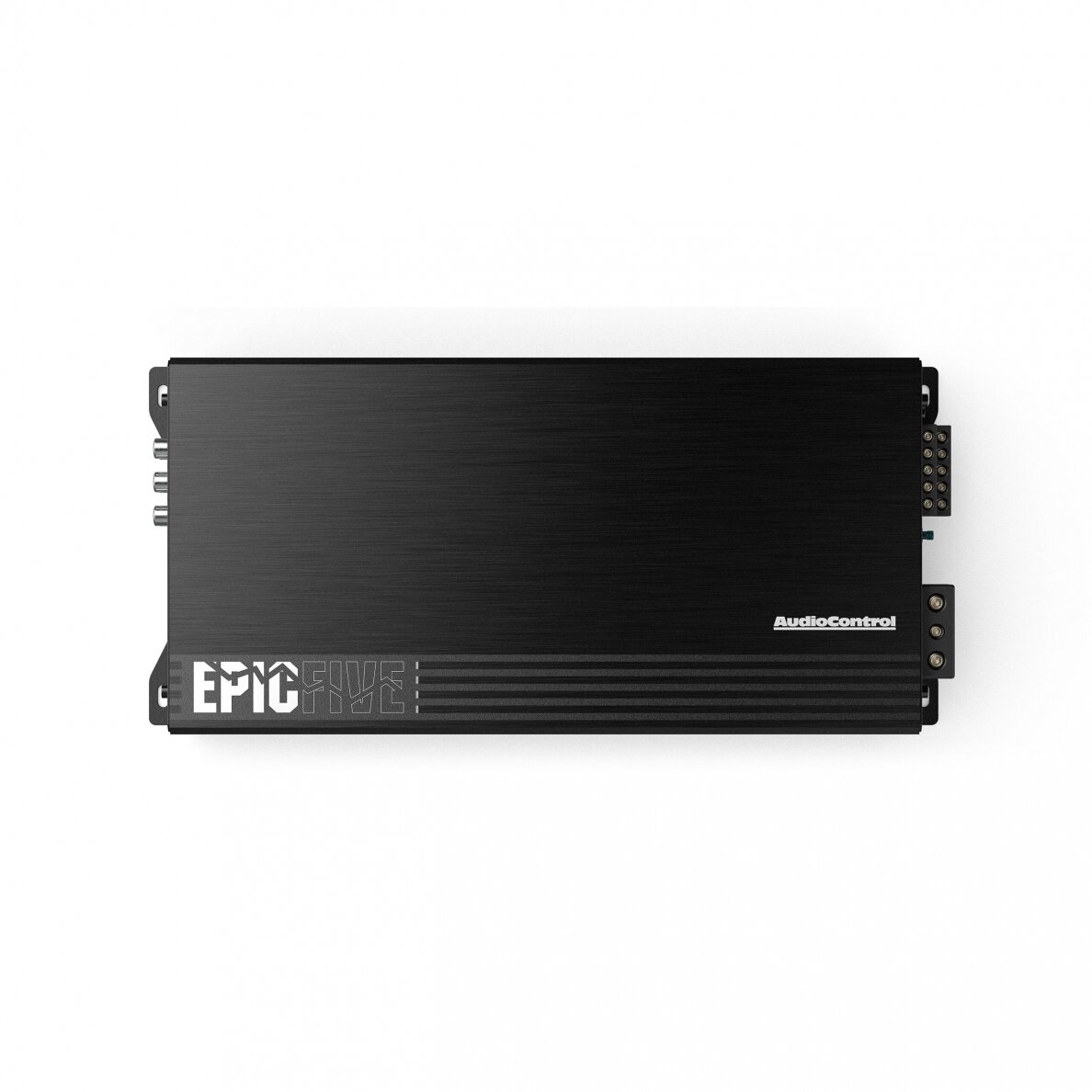

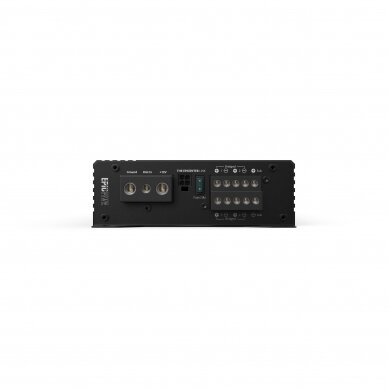

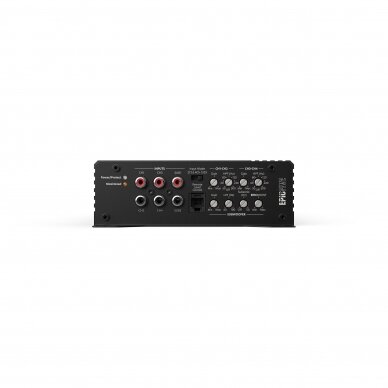

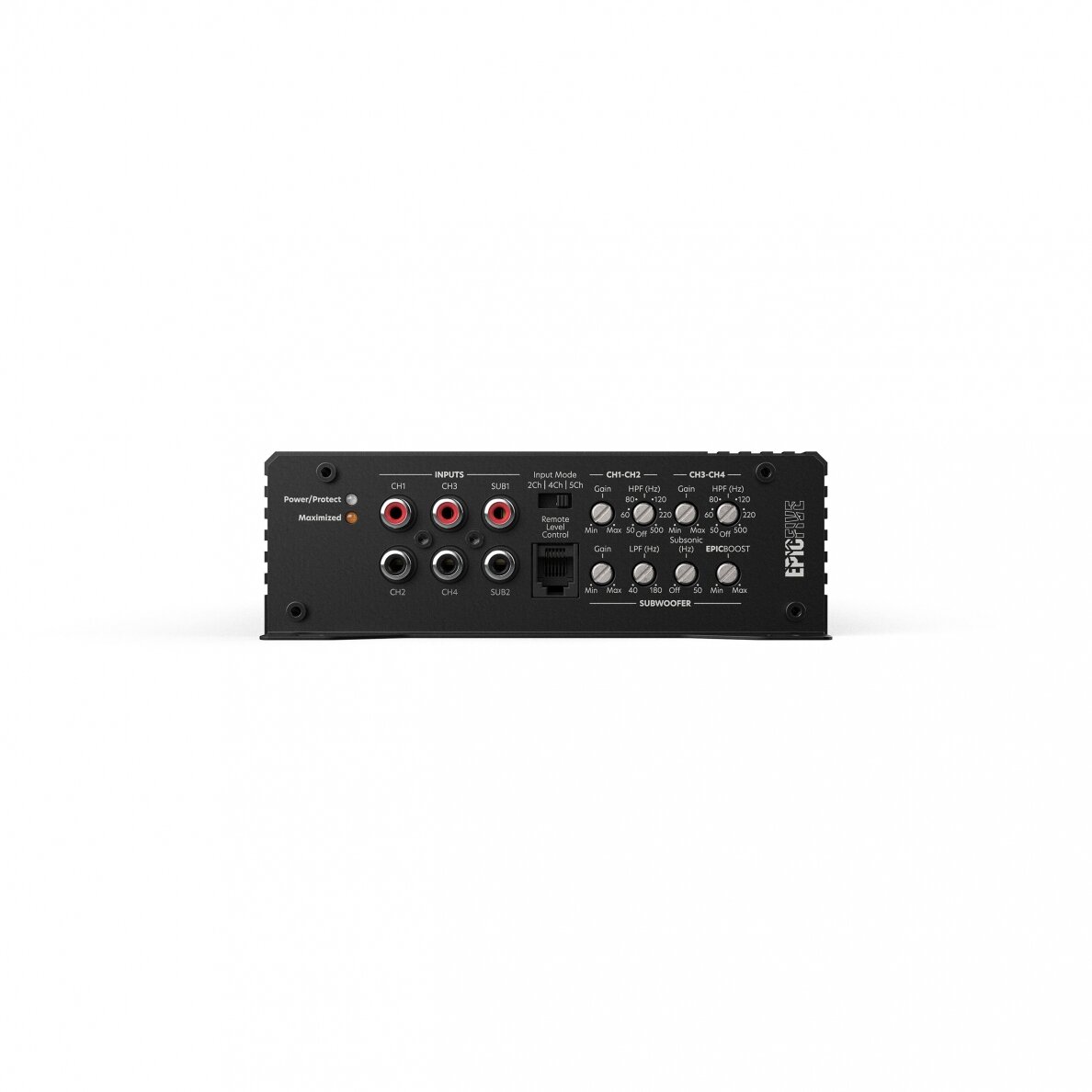

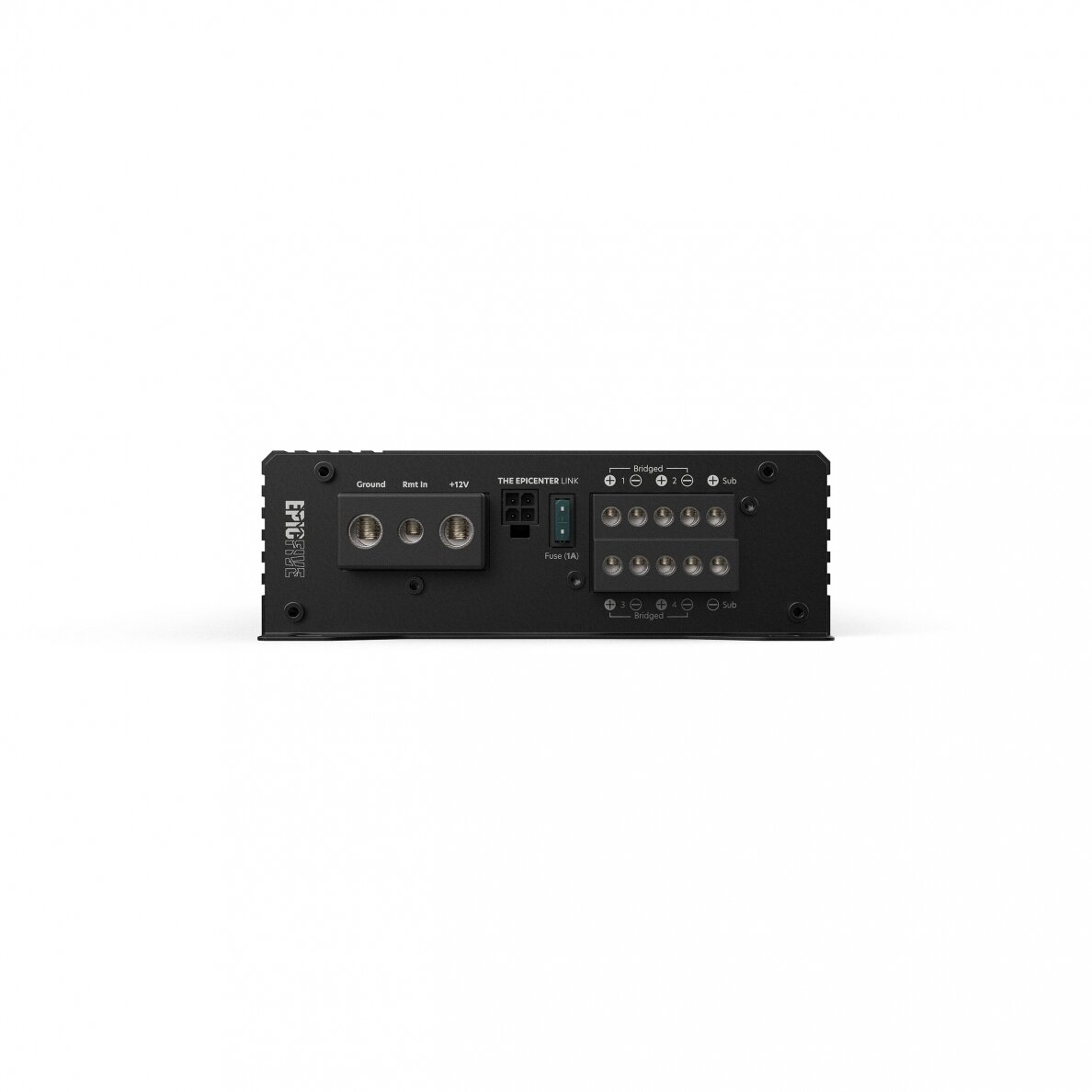

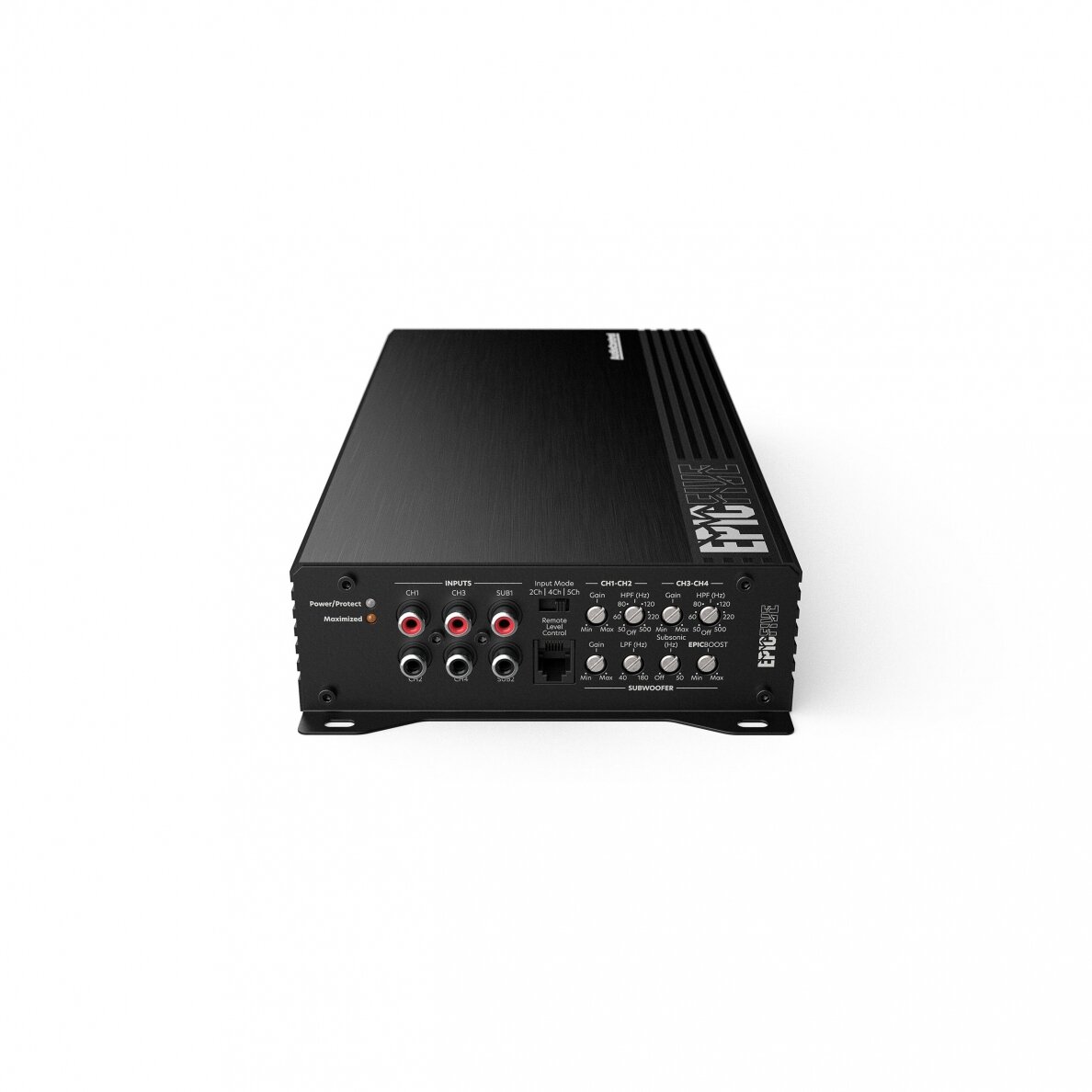

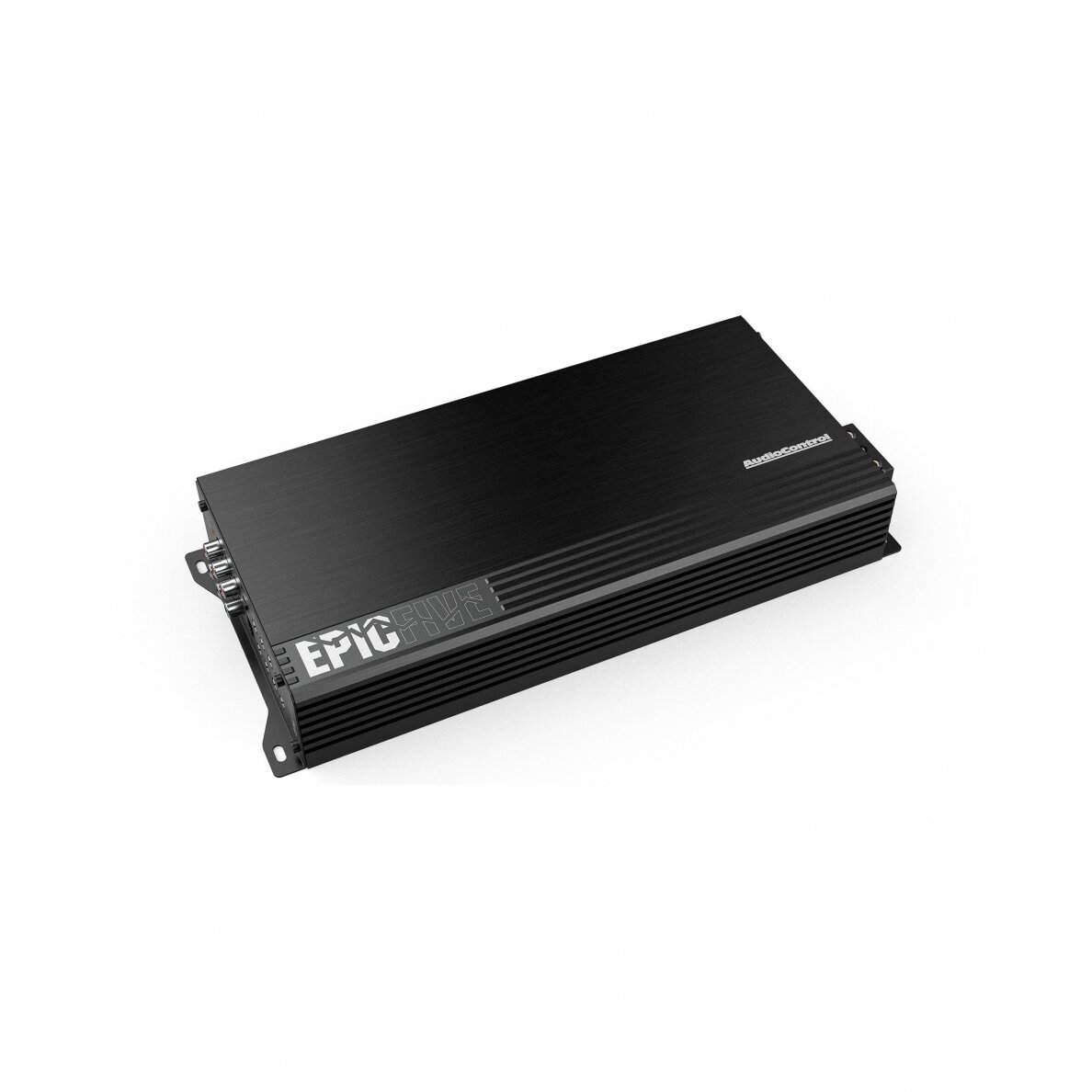

Audio Control Epic Five

Specifications

Inputs
Line-Level Inputs: 500mV – 6V RMS

Outputs
Continuous Power (RMS) @ 14.4V
4 x 75 Watts + 1 x 300 Watts @ 4 ohms
4 x 150 Watts + 1 x 500 Watts @ 2 ohms
1 x 700 Watts @ 1 ohm (subwoofer output)
2 x 400 Watts @ 4 ohms Bridged

Weights & dimensions
DIMENSIONS: 6.1″ W x 13.35″ L x 2.01″ H

Performance
Frequency Response (+/- 1 dB):
10 Hz – 24 kHz (Ch1/2/3/4)
12 Hz – 181 Hz (Ch5)
S/N Ratio: 92.1 dBa, Ref 75 Watts @ 4 ohms
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 150 Amps
High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
EPIC Boost: Frequency Center: 45 Hz, Gain: 0 to 12 dB
Speaker Terminal Wire Gauge: 8 AWG

In the box: EPICFIVE, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1 meter harness), Manual, Warranty
