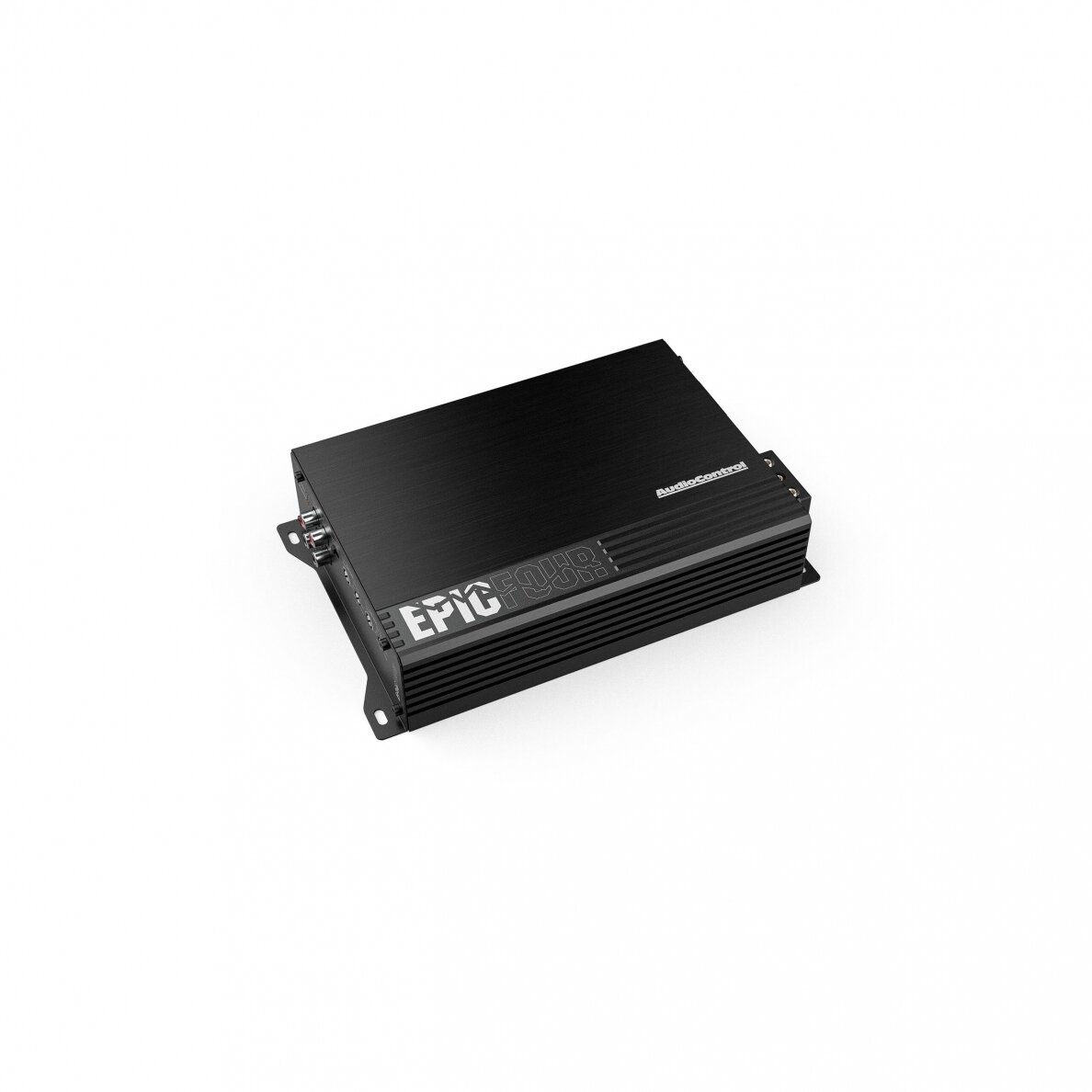

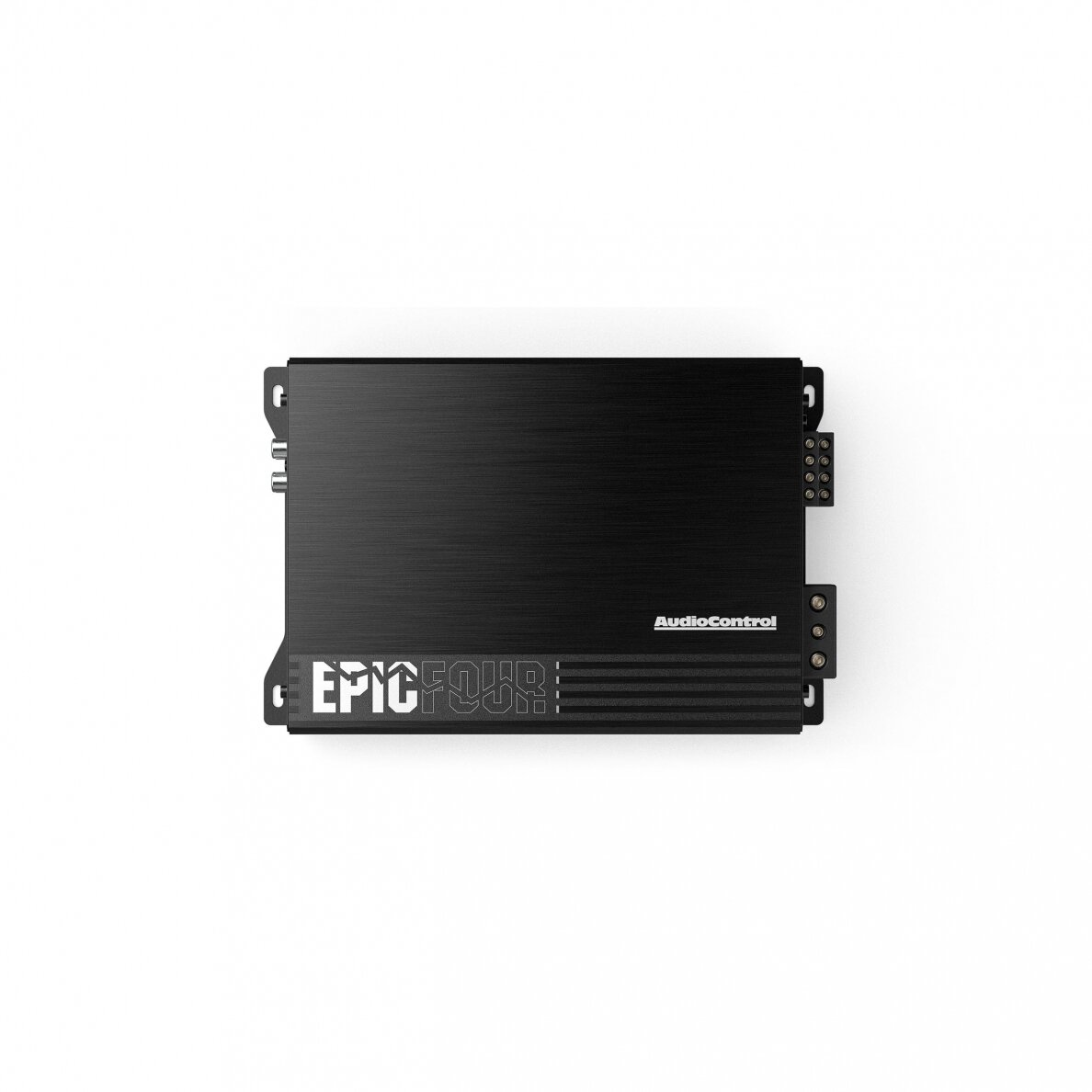

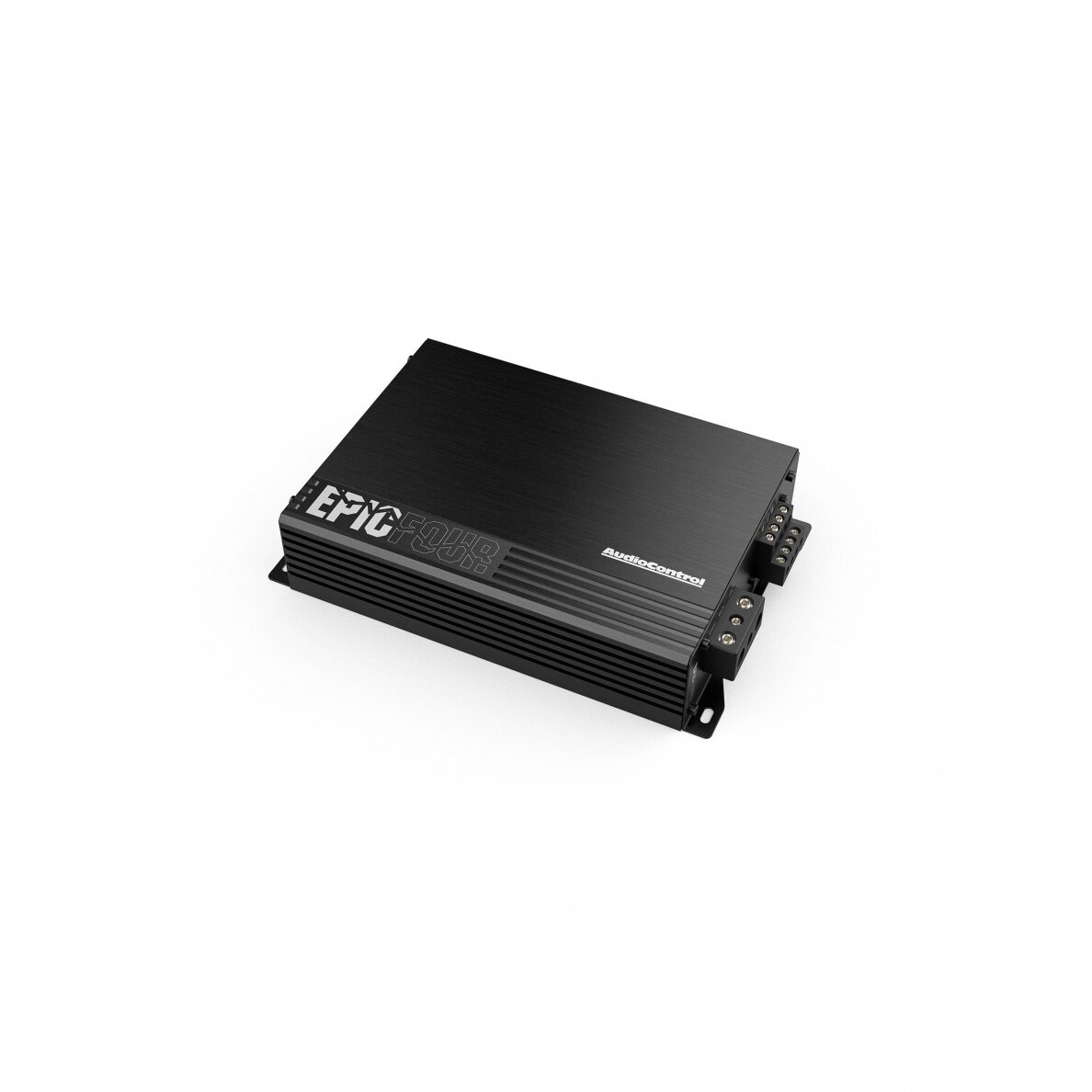

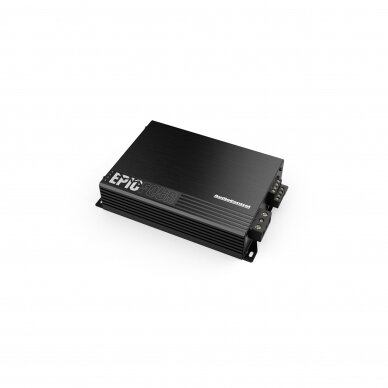

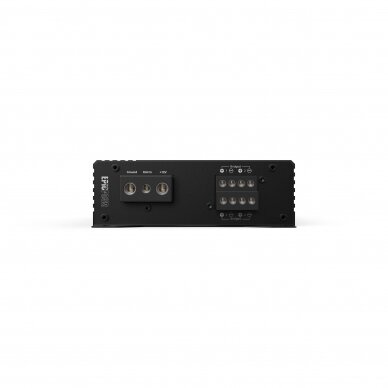

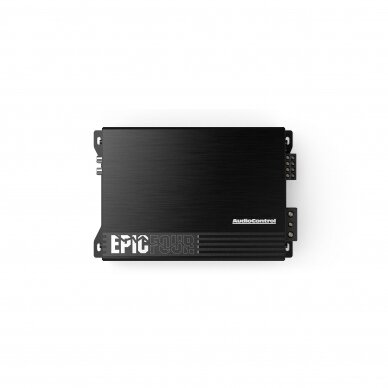

Audio Control Epic Four

Specifications

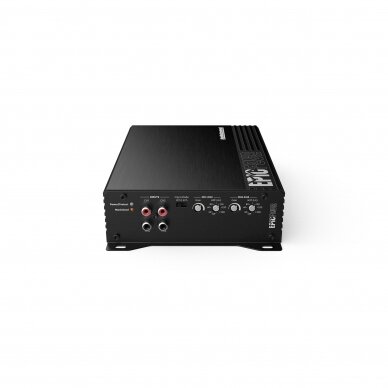

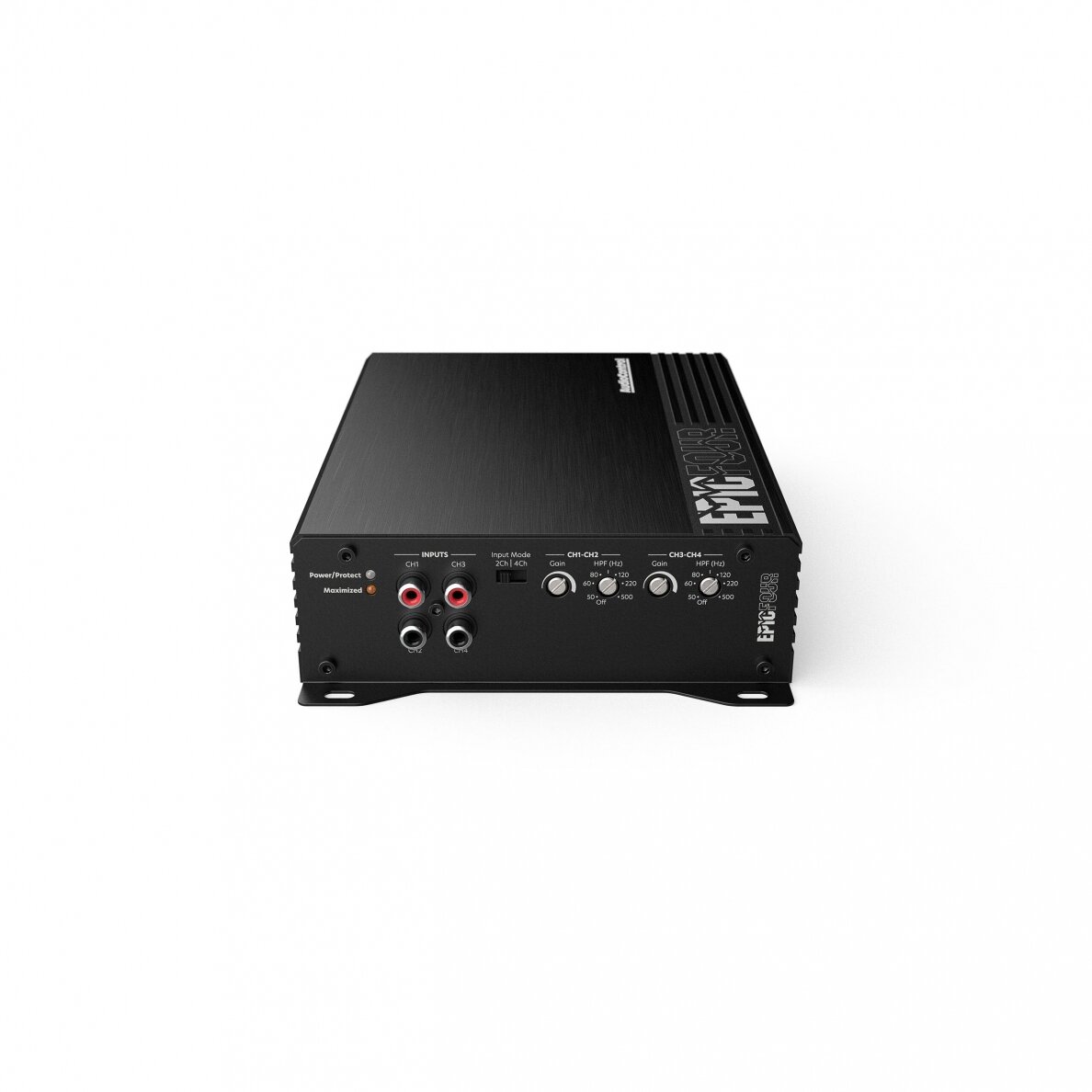

Inputs
Line-Level Inputs: 500mV – 6V RMS

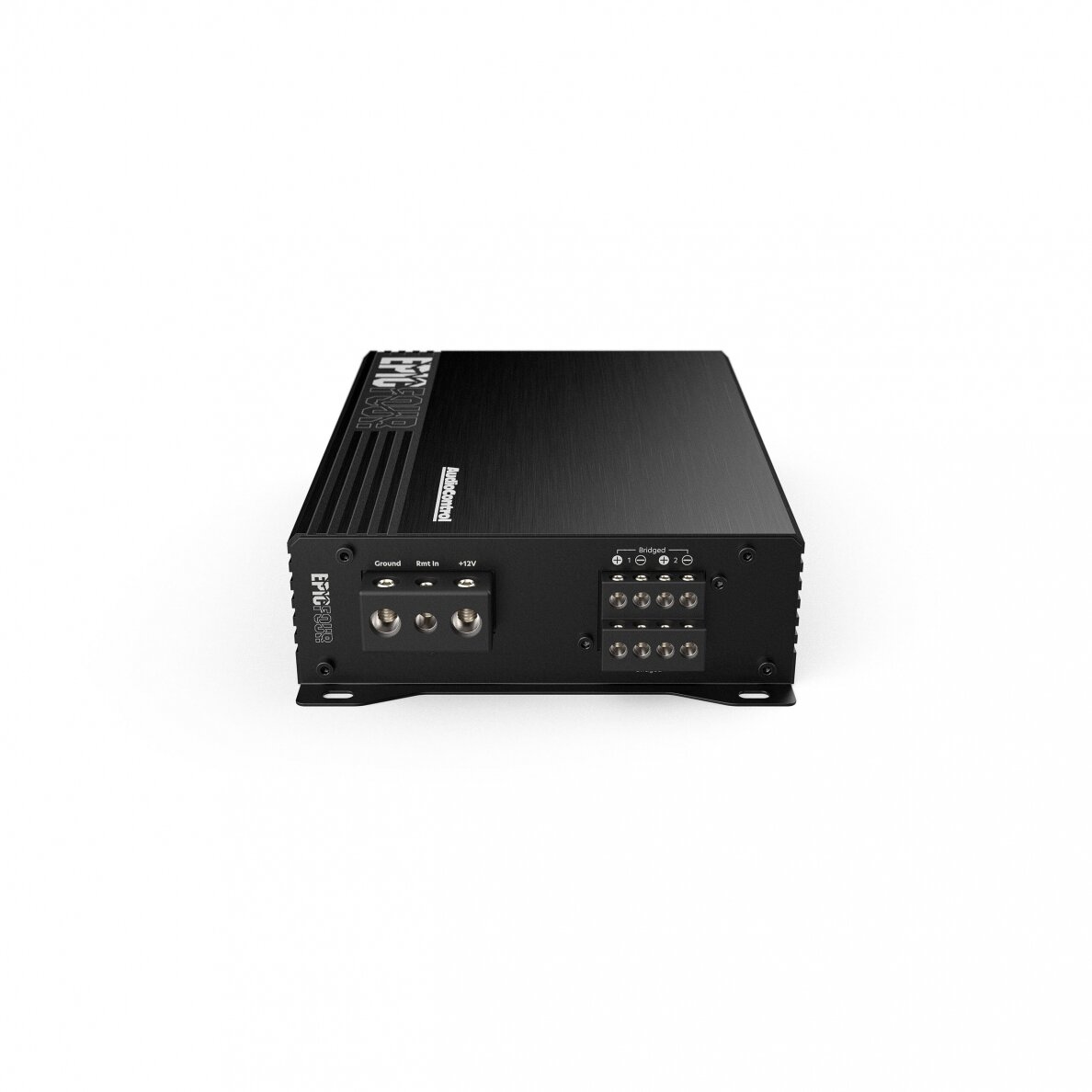

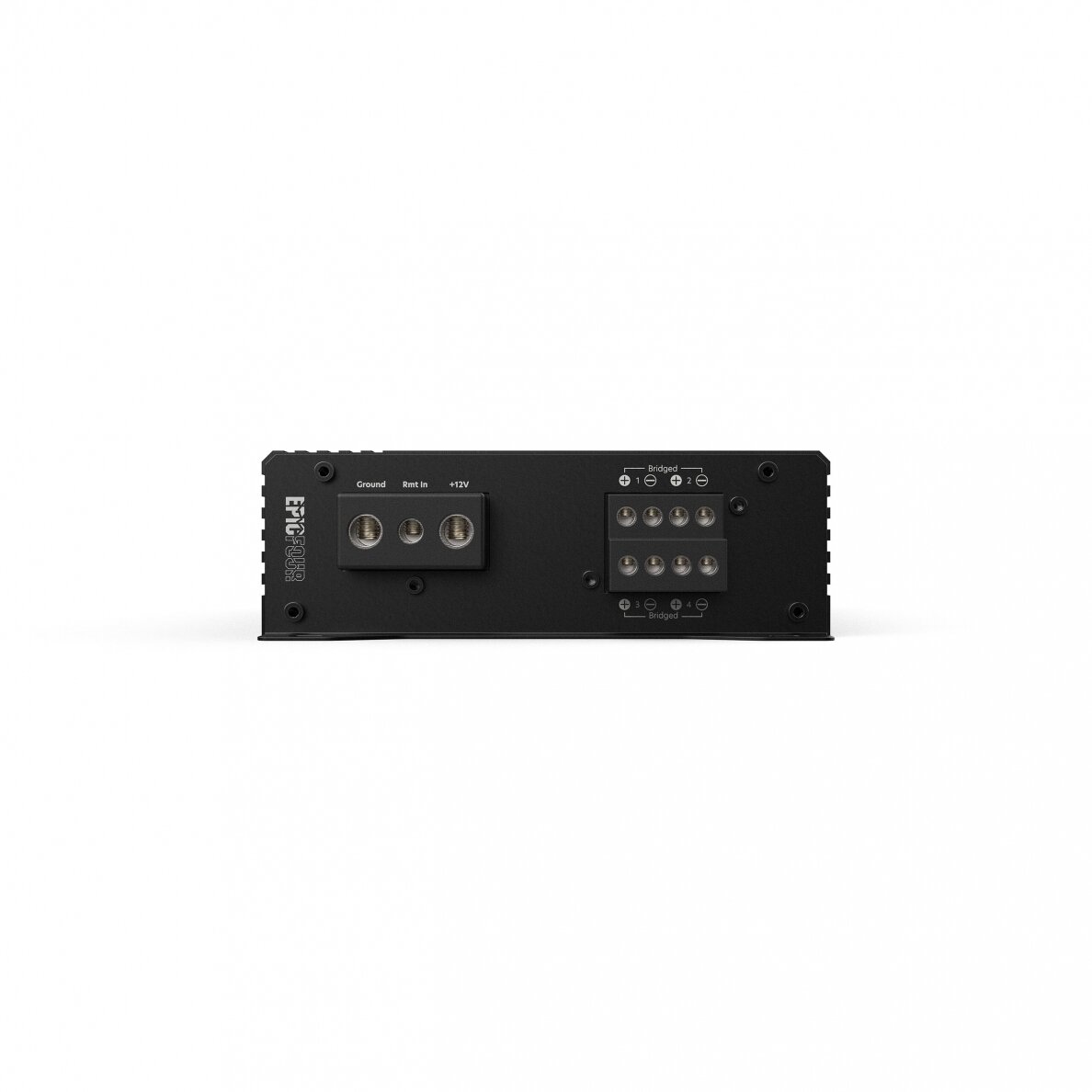

Outputs
Continuous Power (RMS) @ 14.4V
4 x 100 Watts @ 4 ohms
4 x 200 Watts @ 2 ohms
2 x 400 Watts @ 4 ohms Bridged

Weights & dimensions
DIMENSIONS: 6.1″ W x 9.41″ L x 2.01″ H

Performance
Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 80 Amps
High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
Speaker Terminal Wire Gauge: 8 AWG

In the box: EPICFOUR, Wrench, Screws, Manual, Warranty
