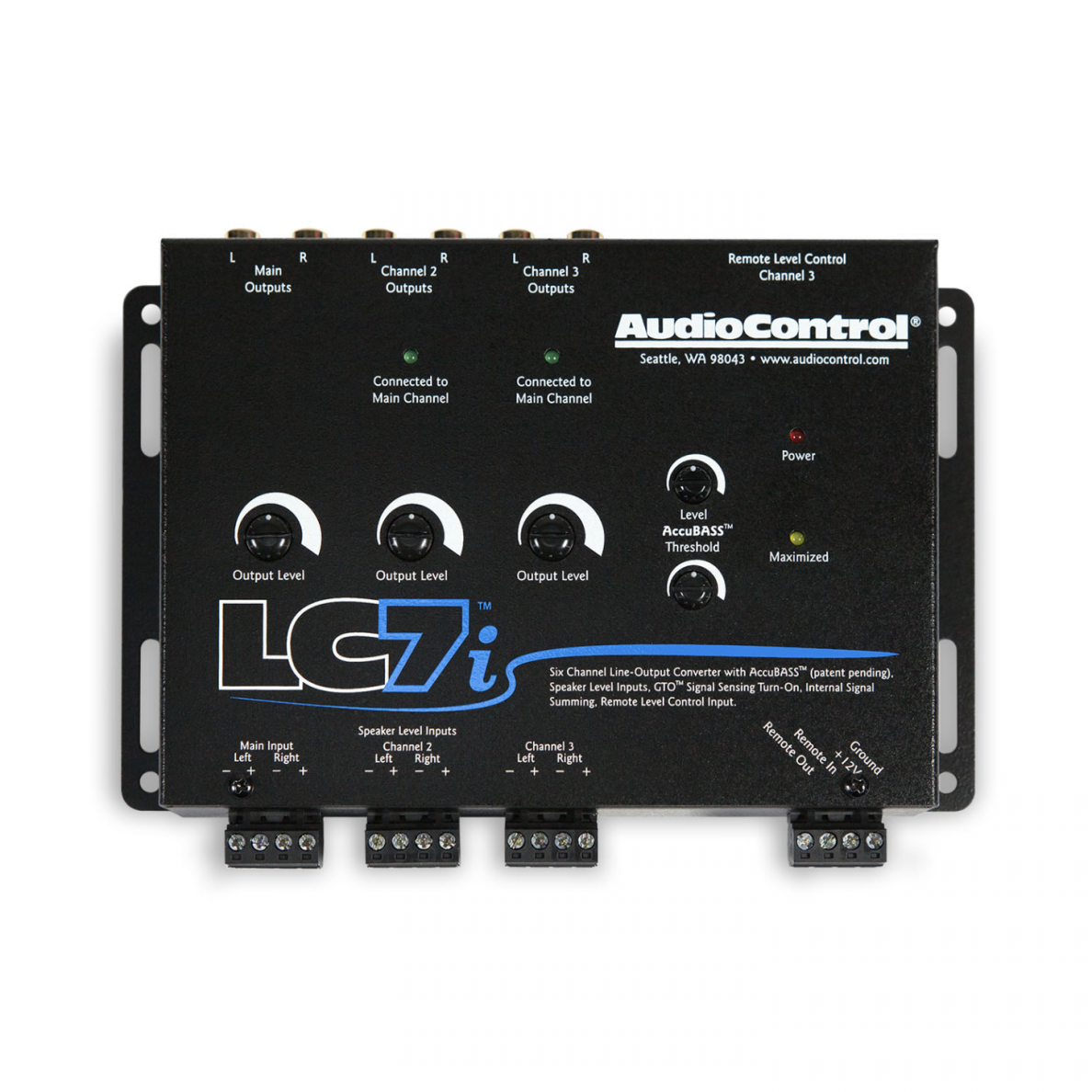

Audio Control LC7i

Features
Six channels of active speaker level inputs – accepts up to 400 watts per channel
Patent Pending AccuBASS™ circuitry
Optional ACR-1 Remote allows for user control of the subwoofer level
Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
GTO™ (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
Output level control
Compact chassis allowing for ease of installation

Specifications:

Inputs
Speaker Level Inputs: 3 (6 channels)
Maximum Input (speaker level): 400W per channel at 4Ω
Input Impedance: 20kΩ

Outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 8.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω

Performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz

Control
Remote In
12VDC Remote Out (always active when unit is on)

General
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A

Weights & dimensions
Dimensions: 7.5”W x 4.7”D x 1.2”H
Weight: 1.5 lbs (0.7 kg)

In the box: LC7i, Speaker and Power connectors, Manual, Warranty
