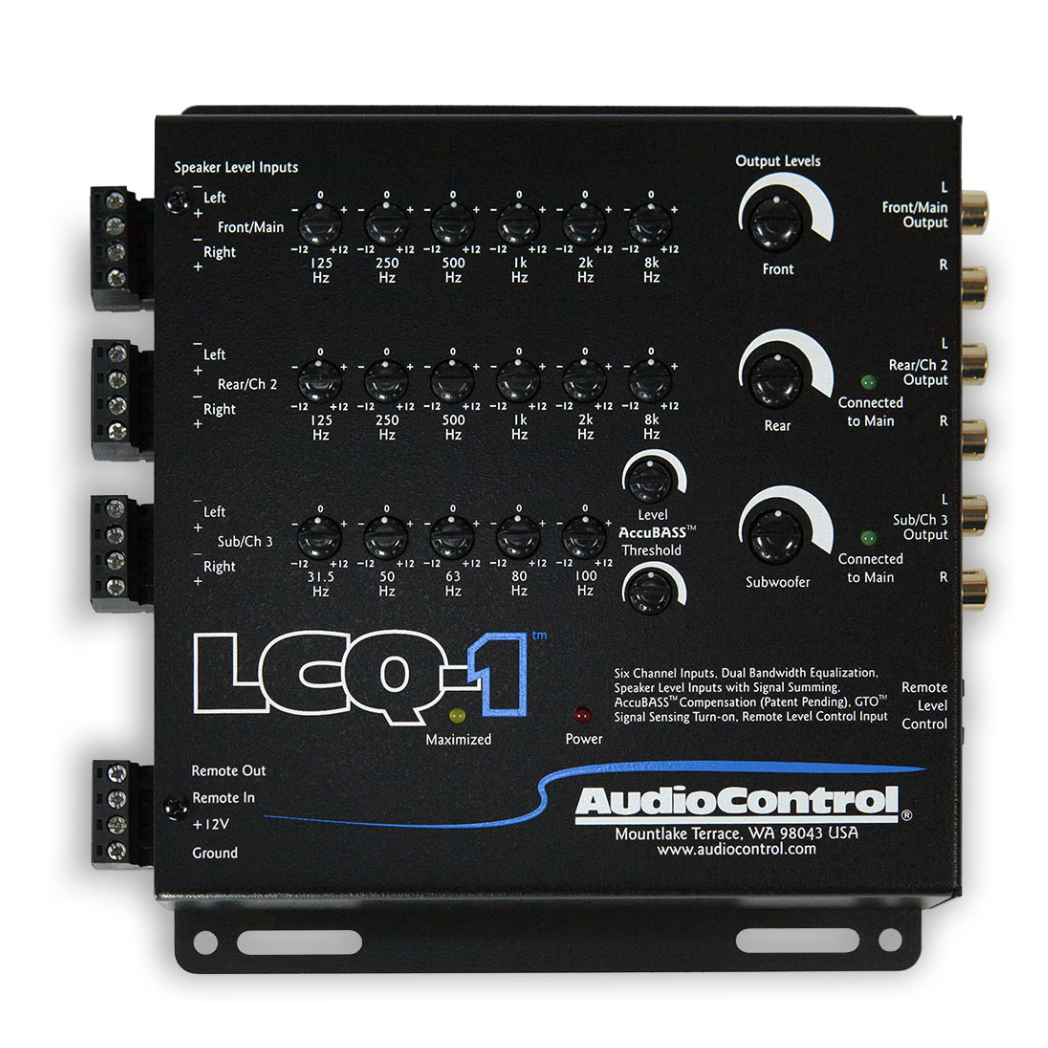

Audio Control LCQ-1

Features
Individual equalization controls for the front, rear and subwoofer channels for simple yet precise system tuning
AccuBASS™ processing for correction of bass roll-off
Six channels of active speaker level inputs – accept up to 400 watts per channel
Optional ACR-2 Remote allows for control of the subwoofer level plus EQ bypass which makes it ideal for demonstration applications
Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
GTO™ (Great Turn-On) Circuit – Powers up the LCQ-1 when it detects signal on the speaker level input
Compact (6”x 6”) chassis allowing for ease of installation

Specifications

Inputs
Speaker Level Inputs: 3 (6 channels)
Maximum Input (speaker level): 400W per channel at 4Ω
Input Impedance: 20kΩ

Outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 7.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω

Performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
Equalizer Frequencies (front/rear): 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
Equalizer Frequencies (sub): 31.5Hz, 50Hz, 63Hz, 80Hz, 100Hz

Control
Remote In
12VDC Remote Out (always active when unit is on)

General
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A

Weights & dimensions
Dimensions: 6.0”W x 5.9”D x 1.2”H
Weight: 3.0lbs (1.4kg)

In the box: LCQ-1, Speaker and Power connectors, Manual, Warranty
