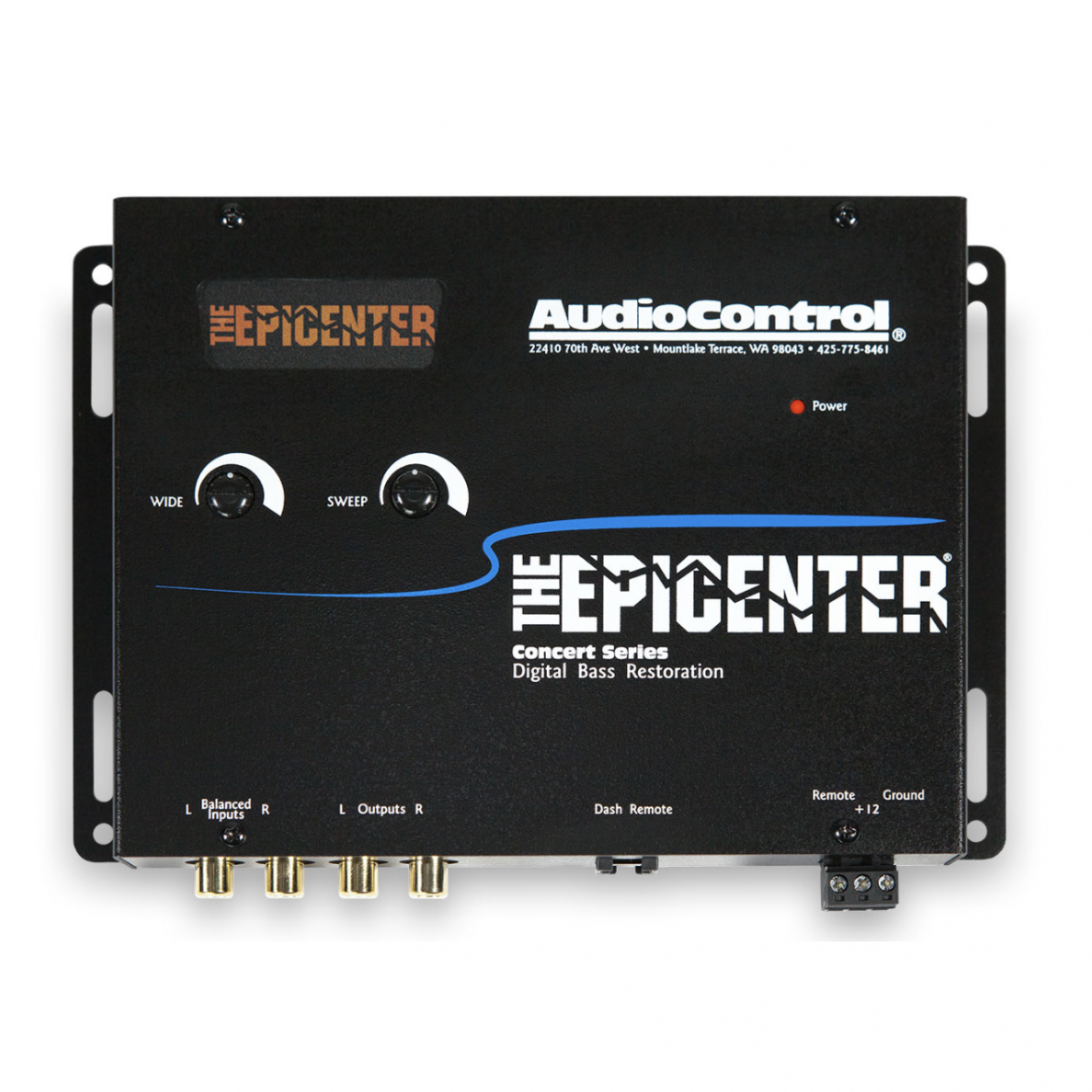

Audio Control The Epicenter

Digital bass restoration processor

Increase bass response from your vehicle’s audio system with The Epicenter Concert Series Digital Bass Restoration Processor by AudioControl. The Epicenter contains patented bass maximization circuity that analyzes the incoming audio signal from your source unit, recreates missing bass tones, and transmits this low-frequency information back into the signal path to increase bass response. This digital bass restoration processor also features parametric bass control and a subsonic filter for fine tuning. Restore the earth-shaking power and heart-pounding bass your subwoofers crave.

Features
Patented Bass Maximizer™
Dash mount control
Bass restoration lighted display
Parametric bass control
PFM Subsonic Filter
Balanced inputs
Bass Output Control

Specifications
Inputs
Preamp Inputs: 1 (2 channels)
Maximum Input Level: 15Vrms
Input Impedance: 10kΩ

Outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 13.5Vrms
Output Impedance: 150Ω

Performance
Total Harmonic Distortion: 0.003%
Frequency Response: 10Hz-100kHz
Signal to Noise: 110dB

Control
Remote In

General
Power Supply: High Headroom PWM Switching
Current Draw: 150mA
Recommended Fuse Rating: 1A

Weights & dimensions
Dimensions: 8″W x 5.5″D x 1.2″H
Weight: 1.8 lbs (0.8 kg)

In the box: The Epicenter, ACR-1 Remote, Power Connector, Manual, Warranty
