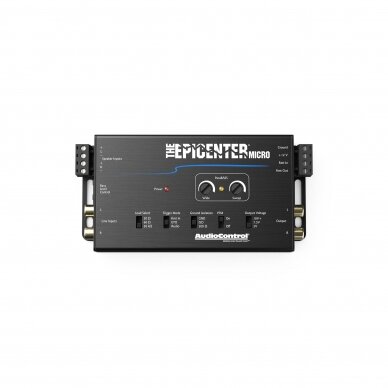

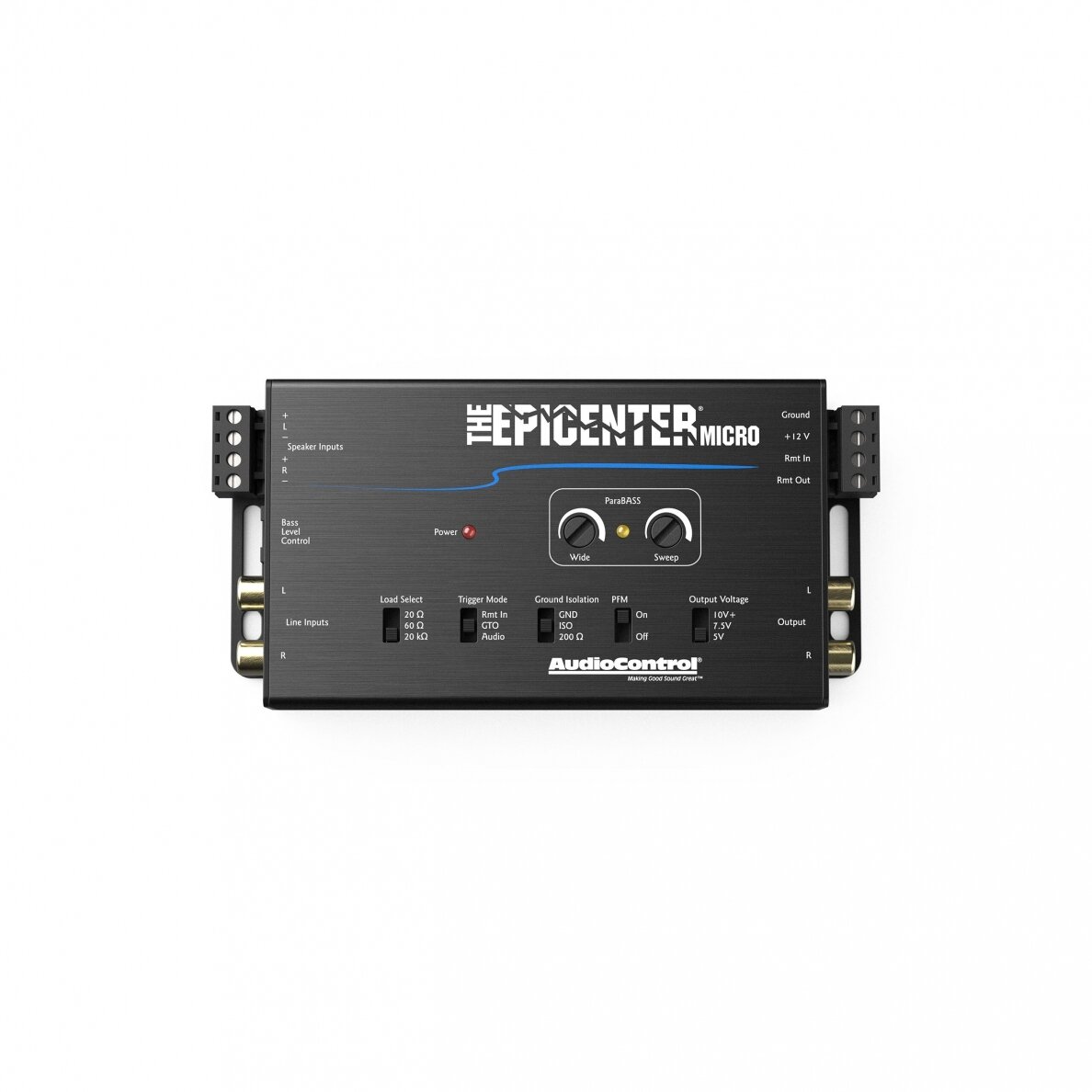

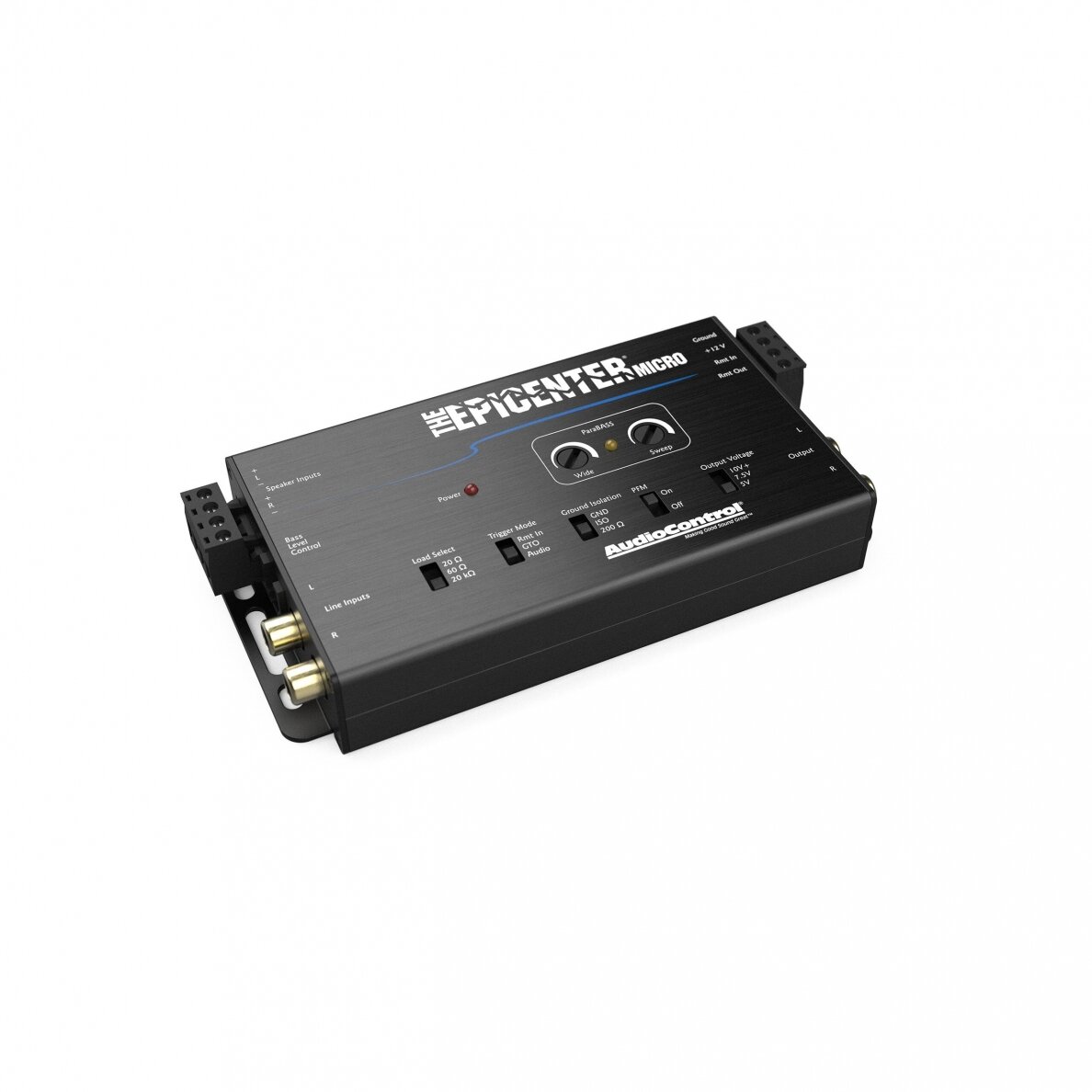

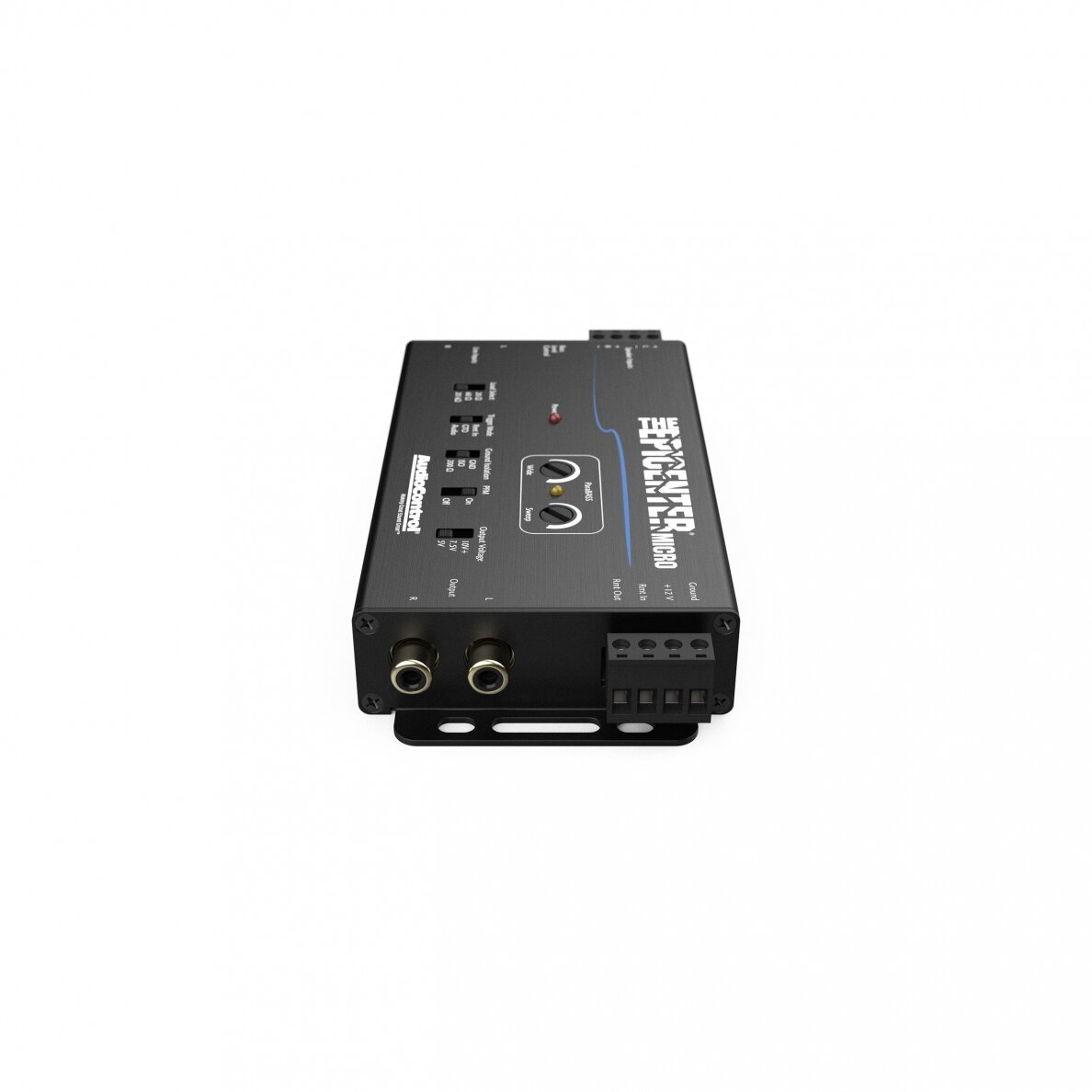

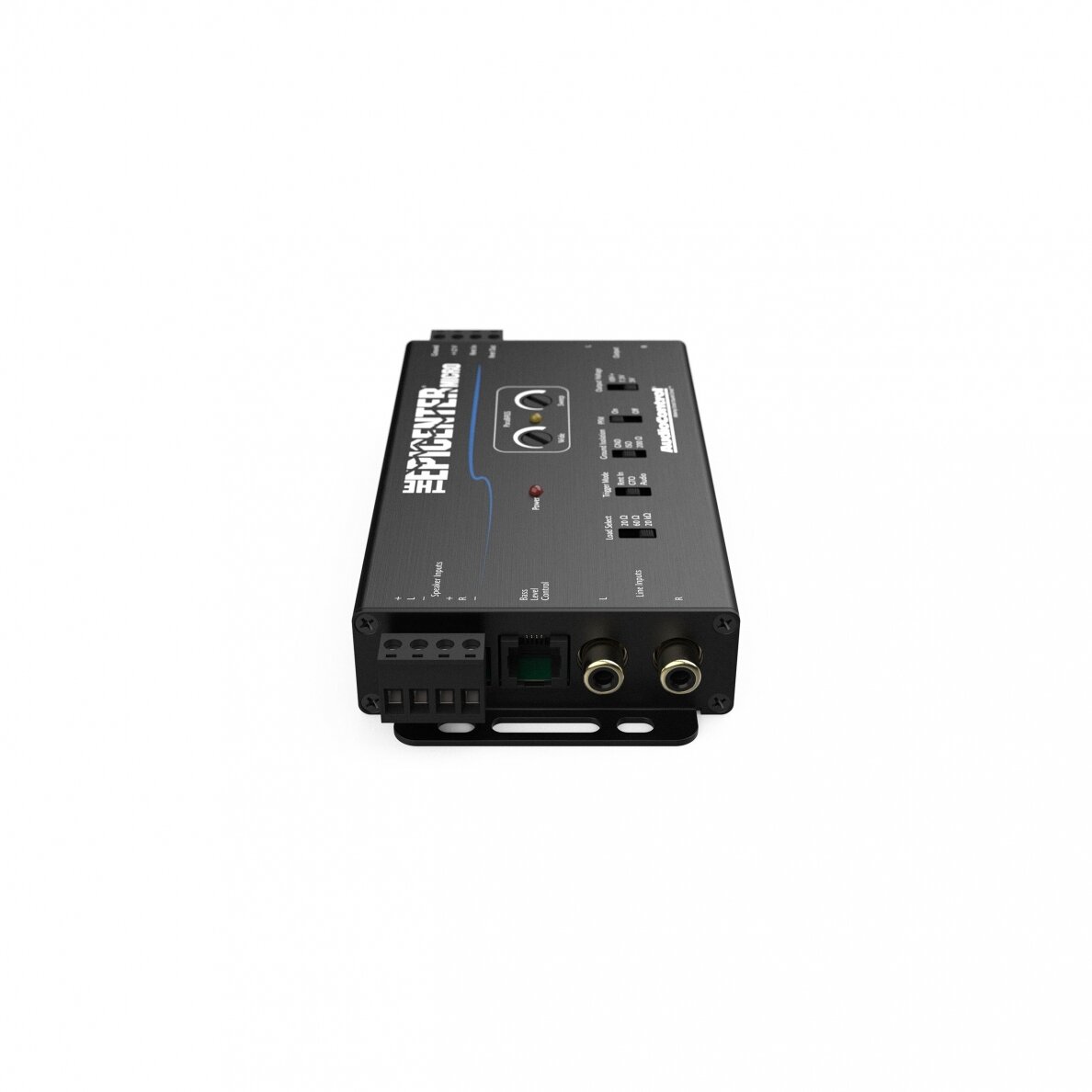

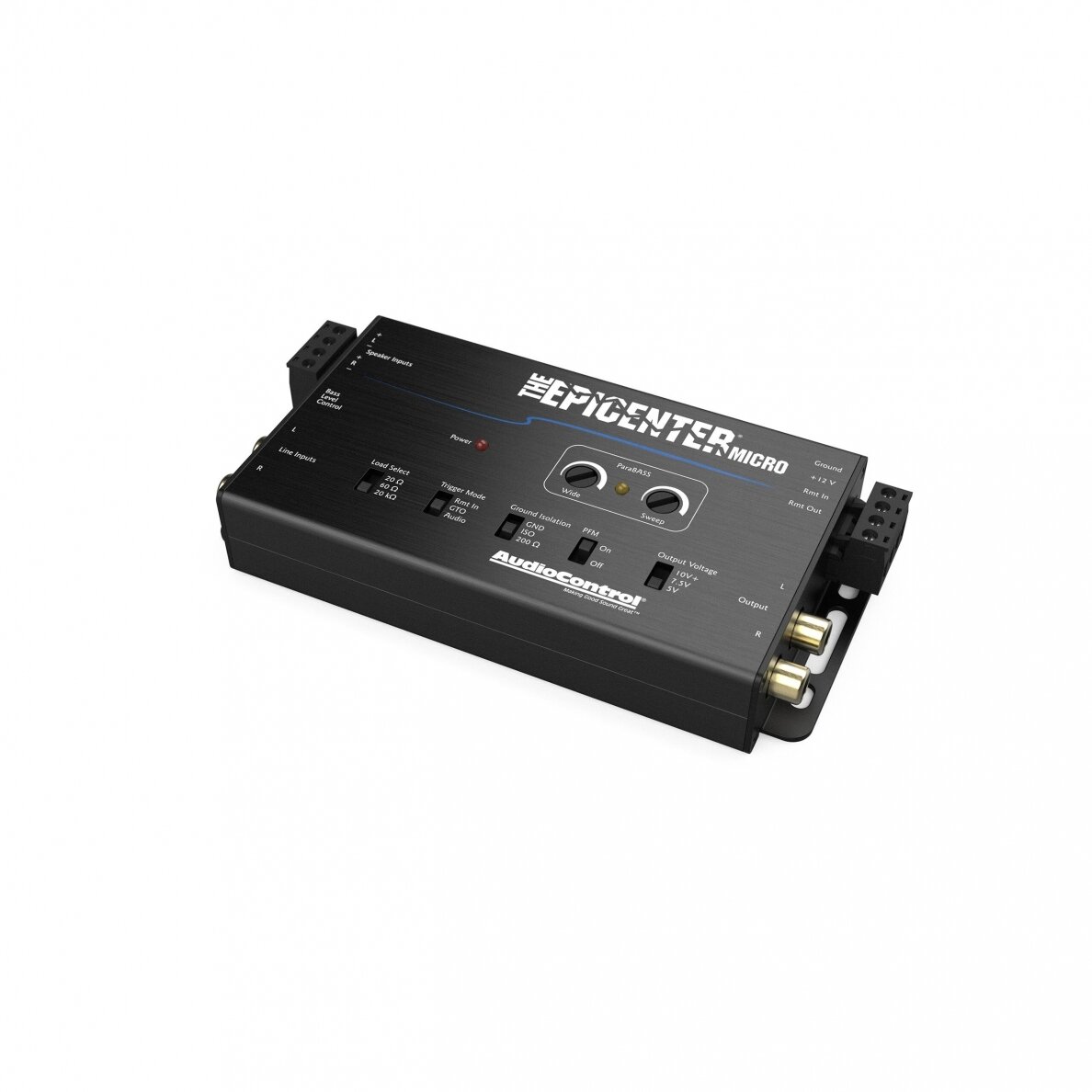

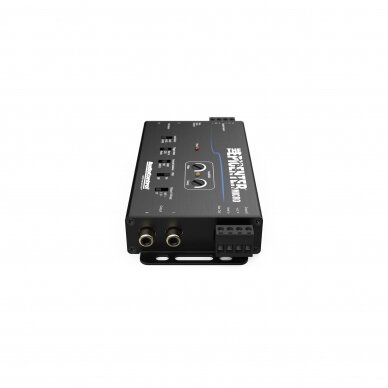

Audio Control The Epicenter Micro

Bass restoration processor & line output converter

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.

Features
Patented Digital Bass Restoration
ParaBASS® Bass Shaping
Speaker and Line Level Inputs
Load Matching Circuit
Multiple Trigger Modes
ACR-4 Dual Knob Dash Mount Control Included
Conformally Coated PCB for Increased Resistance to the Elements

Specifications
Inputs
Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
Line Level Input: 1 (2 channels)
Line Level Input Impedance: 7kΩ

Outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms/13V peak
Output Impedance: 150Ω

Performance
Total Harmonic Distortion: 0.03%
Signal to Noise: >105 dB
Frequency Response: 10 Hz – 22 kHz ±1 dB

Control
Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)

General
Current Draw: 300 mA
Recommended Fuse Rating: 1 A

Weights & dimensions
Dimensions: 5.9″L x 3″D x 1″H
Weight: 0.6 lbs. (0.27 kg)

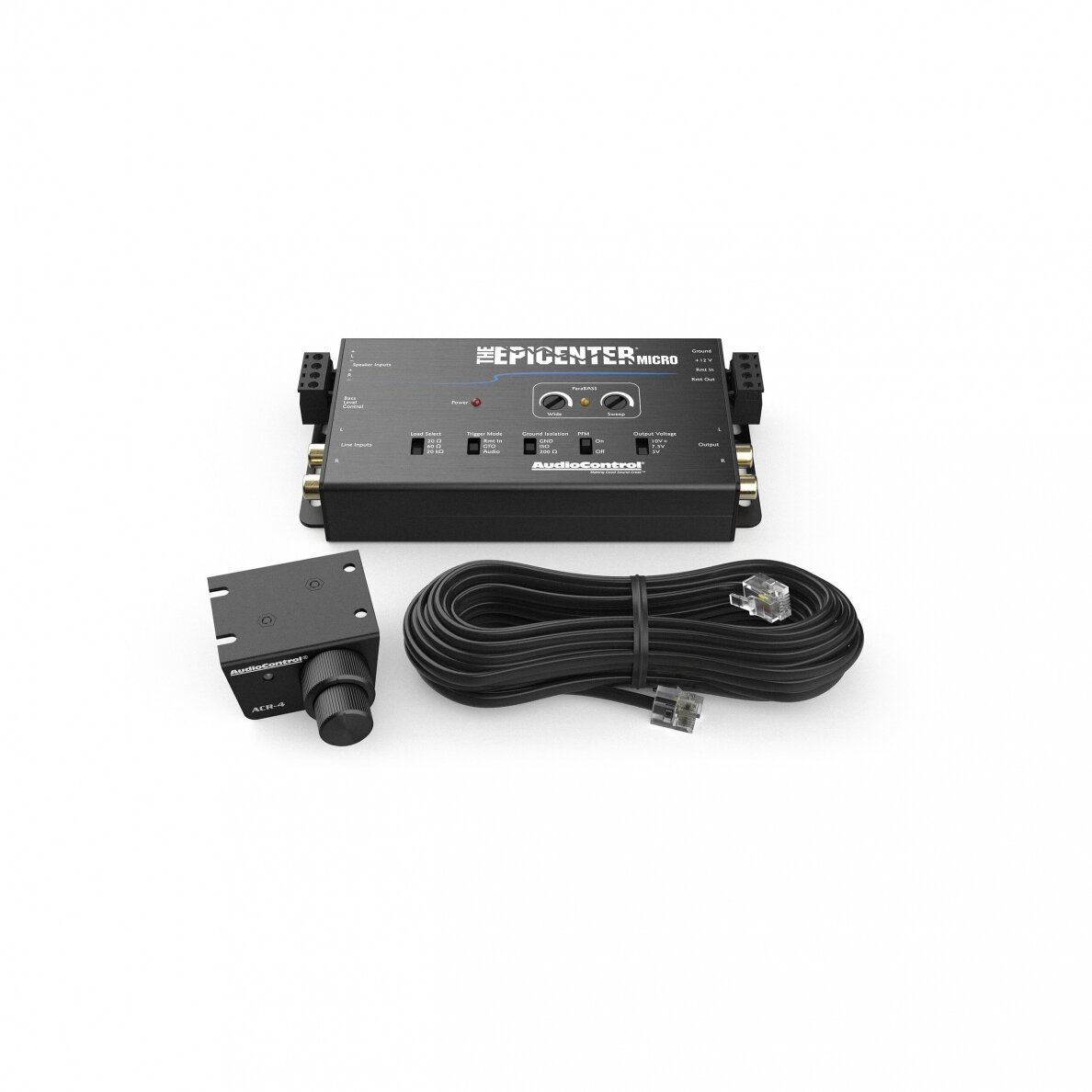

In the box: The Epicenter Micro, ACR-4, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
