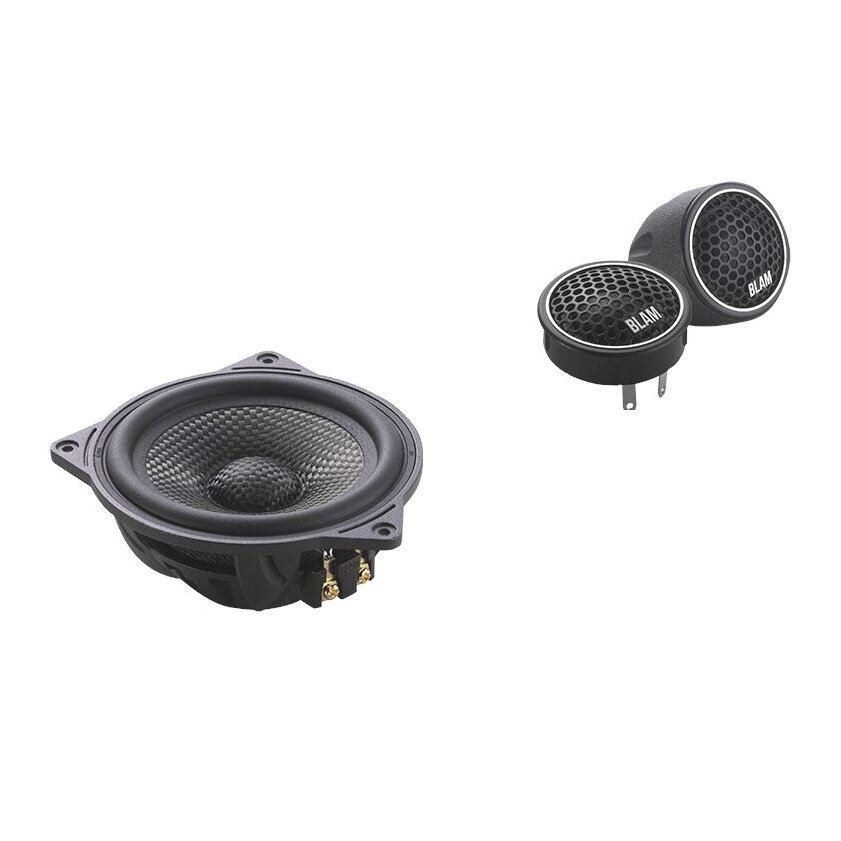

Component system dedicated for Mercedes & BMW (with optional hardness)
which includes two 100 mm (4”) midranges, two 20 mm (3/4”)
soft dome tweeters and four external crossovers.

MS 4N 24 HIGH FIDELITY MIDRANGE
• 100 mm (4“) slim midrange
• Max Power 120 W / RMS Power 60 W
• Frequency response 95 Hz – 9 kHz
• Sensitivity 88 dB – Impedance 3 Ω
Die cast aluminum basket
Ultra rigid carbon fiber
butyl surround
Long life « conex » spider
25 mm voice coil
fiberglass former
High grade neodymium magnet
precision machined pole piece and T yoke.

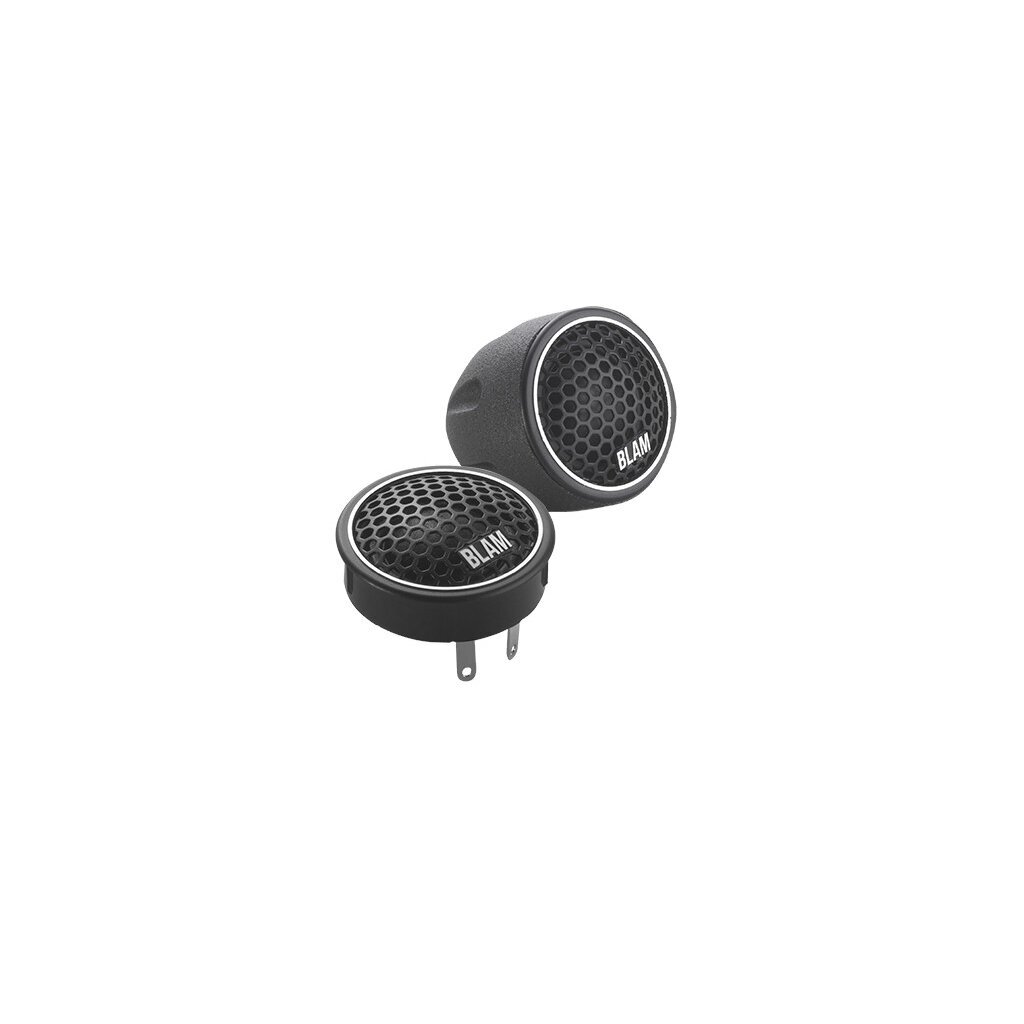

TS 20 HR HIGH RESOLUTION TWEETER
• 20 mm (3/4’’) textile dome diaphragm
• Frequency response 2.5 kHz – 43 kHz
• Sensitivity 88.3 dB – Impedance 5 Ω
Compact mounting dimensions
High efficiency magnet (N38H neodymium)
Ferrofluid for high power handling.
