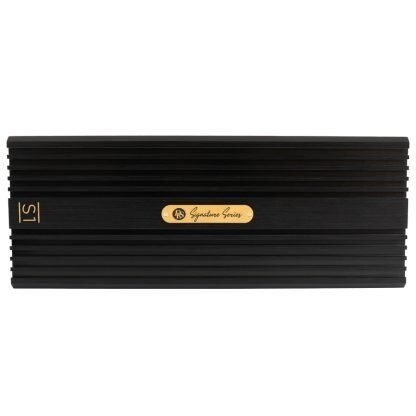

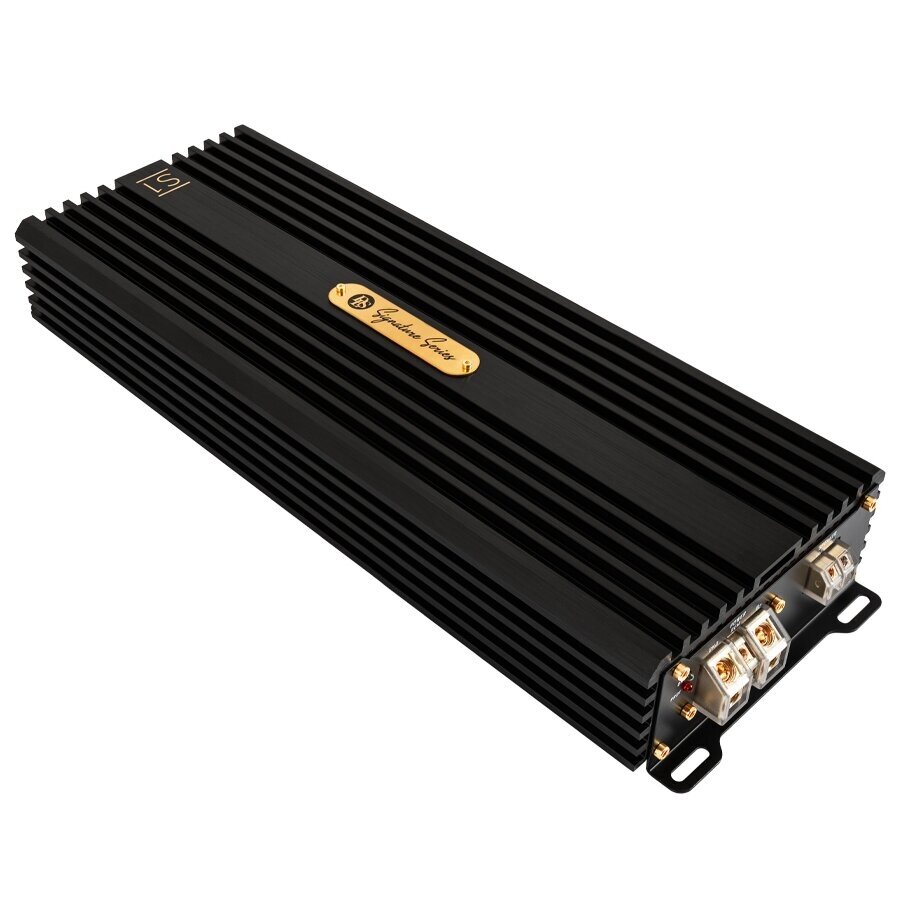

DLS Signature S1

Number of channels – 1
Amplifier class – D
Output power in 1 ohm – 1 x 1000 Watt
Output power in 2 ohm – 1 x 800 Watt
Output power in 4 ohm – 1 x 450 Watt
Damping factor >150
THD at 3W, 20Hz-300Hz <0,06%
THD at 400W, 100Hz <0,09%
S/N ratio, A-weighted 94 dB
Frequency range 10 Hz – 250 Hz
Input sensitivity 1 – 4 Volt
Input impedance, low level 22 kohm
Input impedance, high level 45 ohm
Filter low pass 35-250 Hz
Power consumption (idle) 1,2 A
Power consumption (max) 102 A
Bass boost @ 45 Hz 0- +6dB
Subsonic filter 30 Hz ON/OFF
Phase switch 0/180°
Remote sub level control with 5m cable
Internal cooling fan
Dimension (W x D x H) 129 x 370 x 54 mm (5,1″ x 14,6″ x 2,1″)
Weight 2,9 kg
