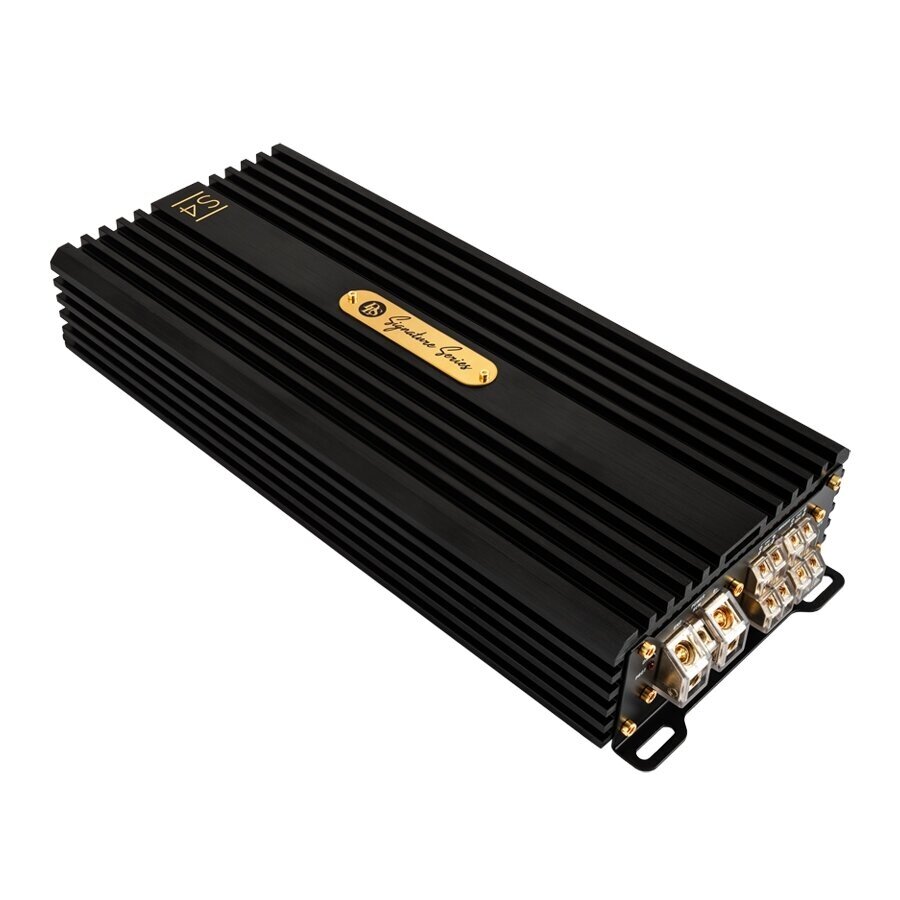

DLS Signature S4

Number of channels – 4
Amplifier class – AB
Output power in 2 ohm – 4 x 130 Watt
Output power in 4 ohm – 4 x 90 Watt
Output power in 4 ohm bridged – 2 x 260 Watt
Damping factor >300
THD at 3W, 20Hz-20kHz <0,065%
THD at 85W, 1kHz <0,065%
S/N ratio, A-weighted 116 dB
Frequency range 10 Hz – 60 kHz
Input sensitivity 1 – 4 Volt
Input impedance, low level 5 kohm
Input impedance, high level 45 ohm
Filter low pass 50-500 Hz
Filter high pass 50-500 Hz
Power consumption (idle) 0,7 A
Power consumption (max) 64 A
Internal cooling fan
Dimension (W x D x H) 129 x 320 x 54 mm (5,1″ x 12,6″ x 2,1″)
Weight 2,4 kg
