Focal EC 165 K

Diameter: 6 1/2" (165mm)
Voice coil diameter: 013/16" (20mm)
Voice coil height: 01/3" (8.5mm)
Motor: Neodymium
Tweeter: TKM ("M" profil aramid fiber inverted dome)
Cone: Composite K2 Power "W" sandwich cone
Surround: Tuned Mass Damper (TMD®)
Separated crossover: 12/12dB (3.5kHz)
Tweeter adjustable level: +3; 0; -3dB/oct
Max. power: 120W
Nom. power: 60W RMS
Sensitivity (2.83V/1m): 90dB
Frequency response: 110Hz-22kHz
Impedance: 4Ω
Accessories: supplied grilles

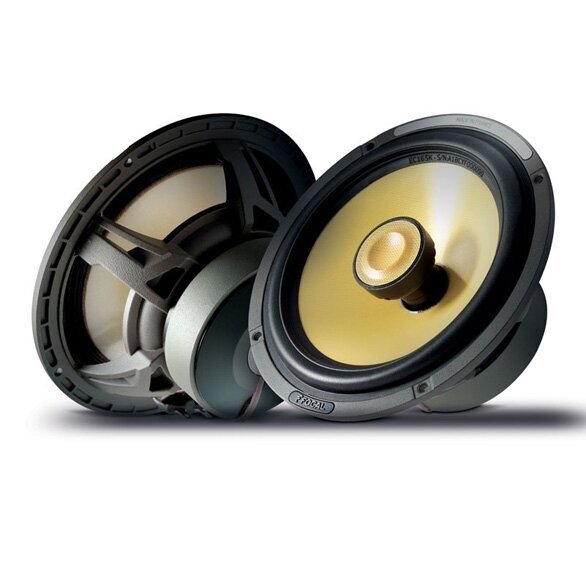

The EC 165 K kit is composed of two 165 mm (6½") woofers with coaxial tweeters.
Like all speaker drivers in the K2 Power line, the coaxial woofers of the EC 165 K kit are also equipped with Kevlar® cones. These cones are endowed with all the ideal qualities: lightness, rigidity and excellent damping, to deliver dynamic sound and perfect definition. The cones are fixed to the frame using TMD suspension, whose exclusive design removes unwanted resonances and reduces the effects of distortion.
The two TKM inverted dome tweeters are composed of aramid fibres. Their exclusive “M”-shaped profile is designed to control deformation of the dome, and to reproduce with precision smoothly high frequencies up to 22 kHz. The frames have been redesigned to make them more robust and shorter; their depth has been reduced as much as possible: 74 mm (3"). These tweeters are equipped with built-in crossovers.
The kit is supplied with aluminium and mesh grilles.
