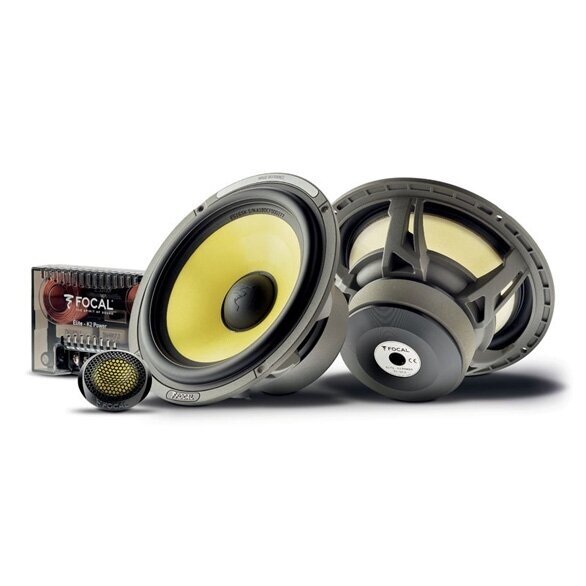

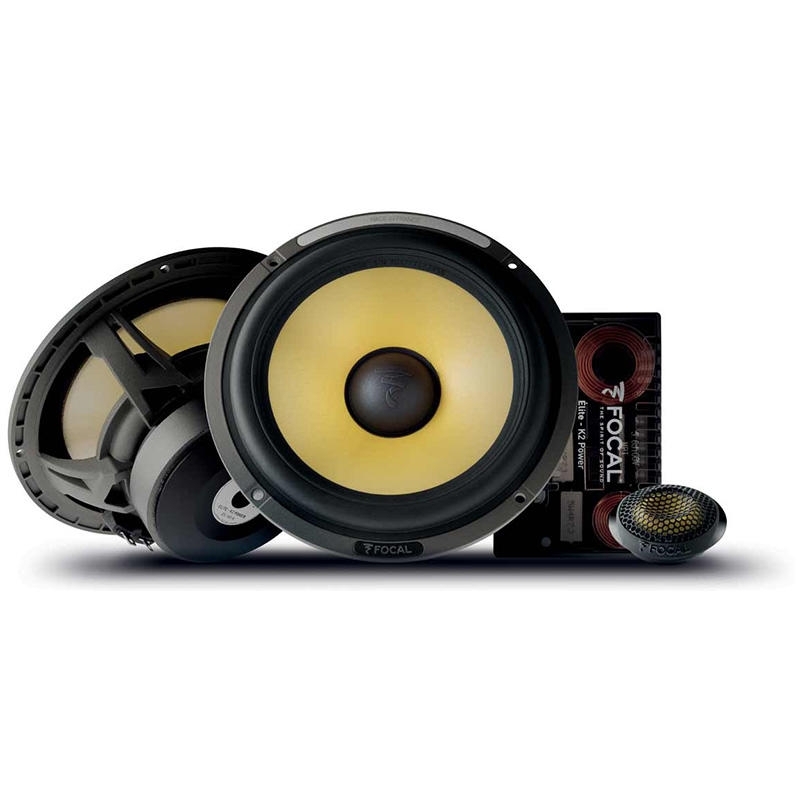

Focal ES 165 K

Diameter: 6 1/2" (165mm)
Voice coil diameter: 1" (25mm)
Voice coil height: 01/2" (12mm)
Motor: Magnet
Tweeter: TKM ("M" profil aramid fiber inverted dome)
Cone: Composite K2 Power "W" sandwich cone
Surround: Tuned Mass Damper (TMD®)
Separated crossover: 6-12/12dB (3.5kHz)
Tweeter adjustable level: +3; 0; -3dB/oct
Max. power: 160W
Nom. power: 80W RMS
Sensitivity (2.83V/1m): 90dB
Frequency response: 65Hz-22kHz
Impedance: 4Ω
Accessories: supplied grilles

2 WOOFERS + 2 TWEETERS

The car audio kit ES 165 K is composed of two 6,5" (165 mm) woofers and two 025/32" (20mm) TKM tweeters. This is a compact solution that’s easy to install. The K2 Power Kevlar® cones used for the speaker drivers of the ES 165 K component kit deliver extremely dynamic sound and perfect definition. These cones endowed with all the ideal qualities, lightness, rigidity and excellent damping, have also been given the new TMD suspension. Initially developed for Sopra high-fidelity loudspeakers, the exclusive design of the suspension removes unwanted resonances and reduces the effects of distortion.

The two TKM inverted dome tweeters are composed of aramid fibres. Their exclusive “M”-shaped profile is designed to control deformation of the dome, and to perfectly reproduce high frequencies up to 22 kHz smoothly and with precision. Their compact crossovers are quick to install and easy to set up. Various accessories are supplied for assembling the tweeters, which can be installed in the factory locations, on tilting frames or flush-mounted.
The kit is supplied with aluminum and mesh grilles.
