Focal FPX 5.1200
Focal FPX 5.1200
GamintojasKanalų skaičius5-
CEA power (4 ohms) 4 x 75 Wrms + 1 x 420 Wrms
Max. power (2 ohms) 4 x 120 Wrms + 1 x 720 Wrms
Power max (channels 1to 4 bridged at 4 ohms) + channel 5 at 2 ohms 2 x 240 Wrms + 1 x 720 Wrms
Bandwidth (-3dB) 10 Hz - 20 kHz
THD 0,03%
SNR (1W/A) > 75 dB
Subsonic filter 10Hz-50Hz
(24dB/oct)
High-pass/low-pass filter 50 Hz – 500 Hz
Bass boost 0 to 12 dB linear
Phase 0 to 180° linear
Full-range function ✓
Mirror mode ✓
Standby current (A) 1,7
Protections Short circuit/low impedance/reverse polarity/
DC/voltage drop/overheat
protection
Dimensions: (337 x 175 x 57 mm)
Weight (kg) 4.1kg
5-channel FPX 5.1200 amplifier has a maximum power of 4 x 120 Watt + 1 x 720 Watt at 2 Ohms!
The input selector (2/4/6 channels) duplicates channels, meaning there will always be 5 output channels, even if the head unit only has one or two stereo outputs.

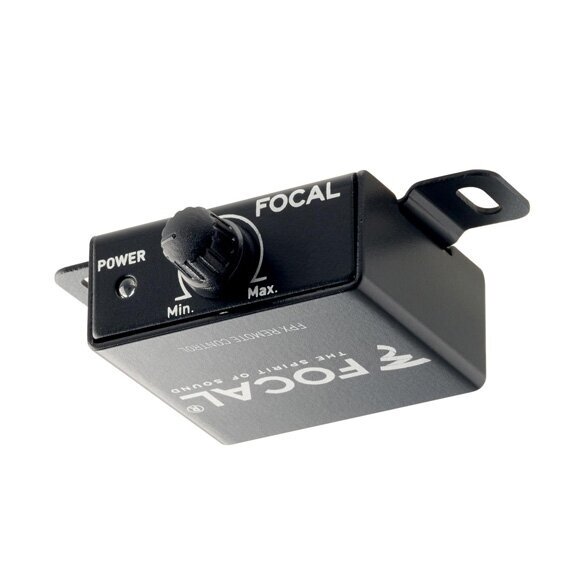

To perfectly tune the subwoofer to the rest of the installation, the bass channel has a low-pass active crossover, a bass equaliser, phase adjustment and a subsonic filter (particularly useful for cutting off frequencies which are too low for a small subwoofer). The remote control enables you to adjust the bass level from the driving seat depending on the type of music you’re listening to.
Stable at 4 and 2 Ohms, this new FPX amplifier will drive most speaker drivers on the market with just the right amount of power: 4 x 75 Watts + 1 x 420 Watts RMS at 4 Ohms (CEA standard). With its power and contained volume, FPX 5.1200 makes the installation easier in order to make the most of your boot space.
