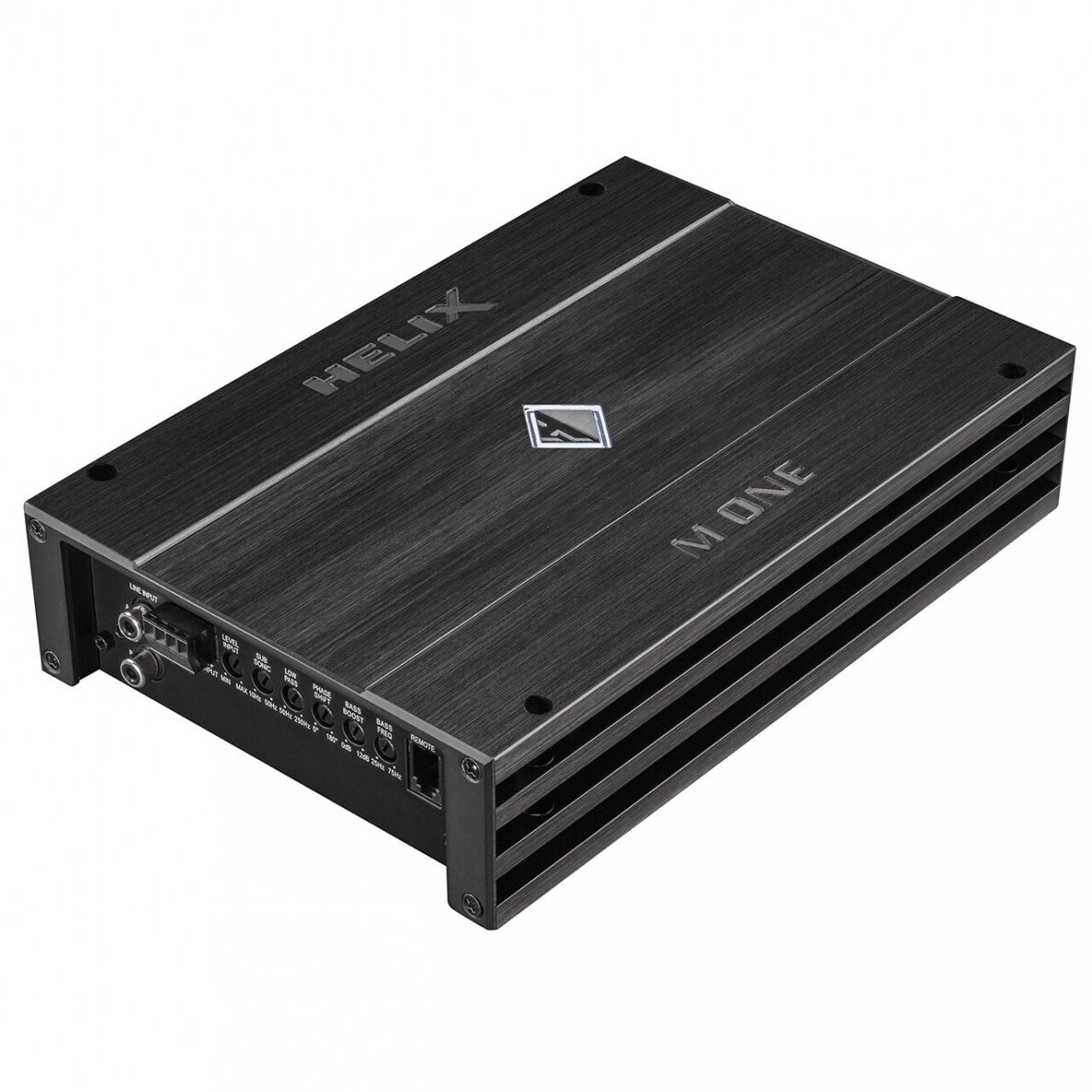

Helix M ONE

Technical data

Output power RMS ≤ 1% THD+N
- @ 4 Ohms 1 x 240 Watts
- @ 2 Ohms 1 x 410 Watts
- @ 1 Ohm 1 x 600 Watts
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
Max. output power per channel* Up to 720 Watts RMS @ 1 Ohm
Amplifier technology Class D

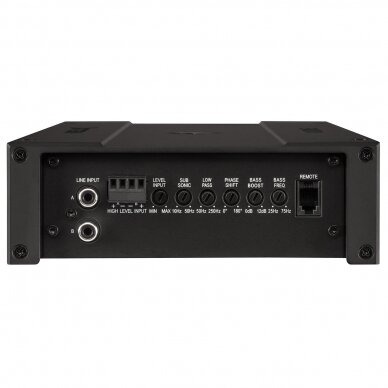

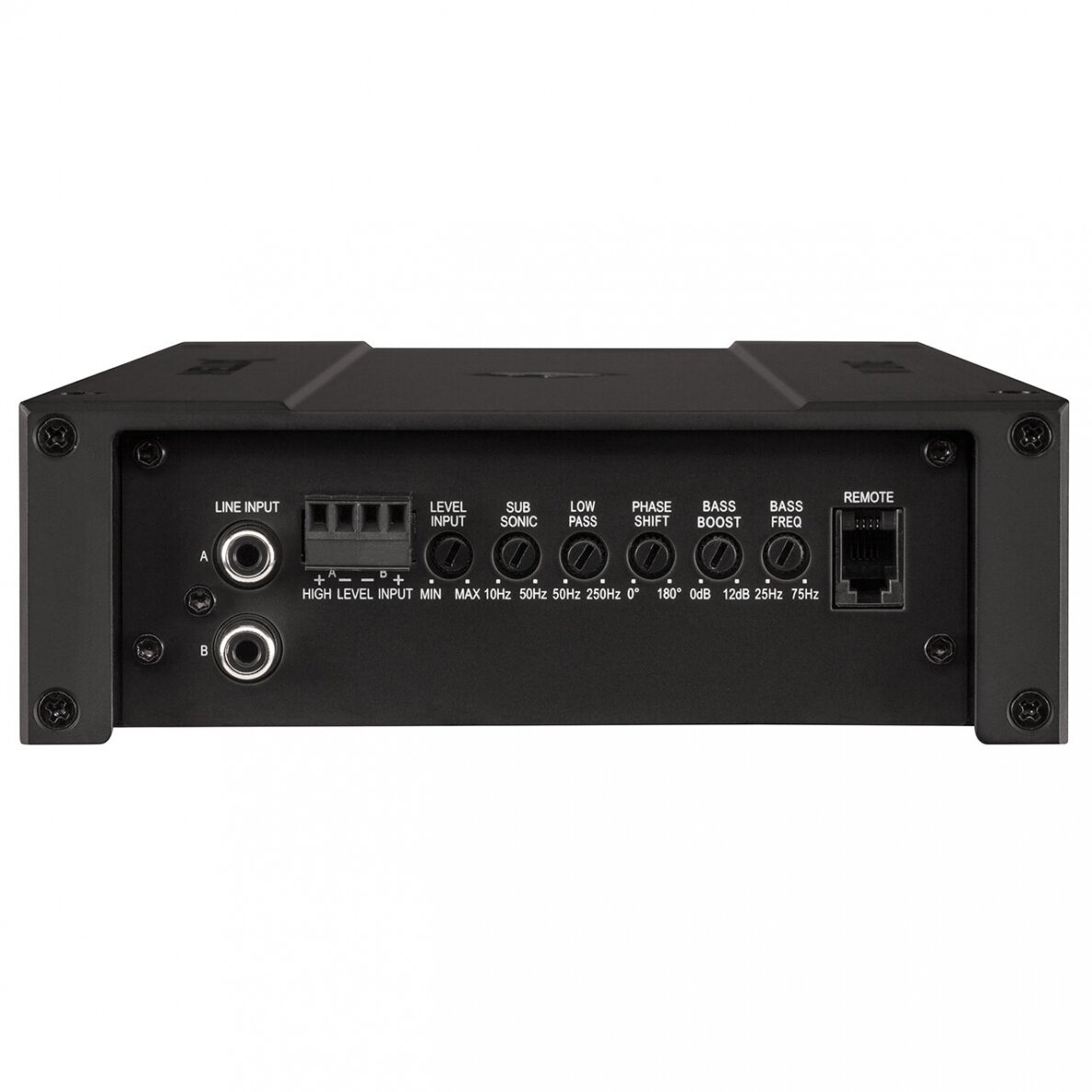

Inputs 2 x RCA / Cinch
2 x Highlevel speaker input
1 x Remote In
1 x Remote control input
Input sensitivity RCA / Cinch 0.5 - 6 Volts
Highlevel 1.1 - 13 Volts
Input impedance RCA / Cinch 20 kOhms
Input impedance highlevel 13 Ohms
Outputs 1 x Speaker output
Output voltage RCA / Cinch -
Signal converter for digital input -
Frequency response 10 Hz - 250 Hz
Bass boost 0 - 12 dB / 25 - 75 Hz
Highpass -
Lowpass 50 Hz - 250 Hz adjustable
Bandpass 10 Hz - 250 Hz adjustable
Subsonic 10 Hz - 50 Hz adjustable
Phase 0 - 180° adjustable
Slope high- / lowpass -
Slope subsonic / lowpass 12 / 24 dB/Oct.
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 95 dB (A-weighted)
Distortion (THD) 0.20 %
Damping factor 100
Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 650 mA
Operating temperature range -40° C to +70° C

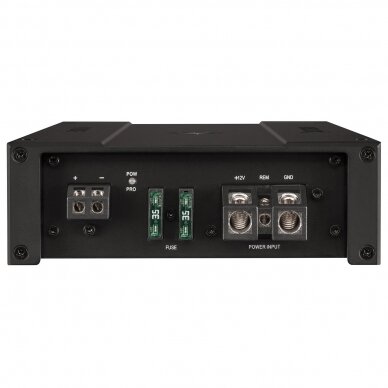

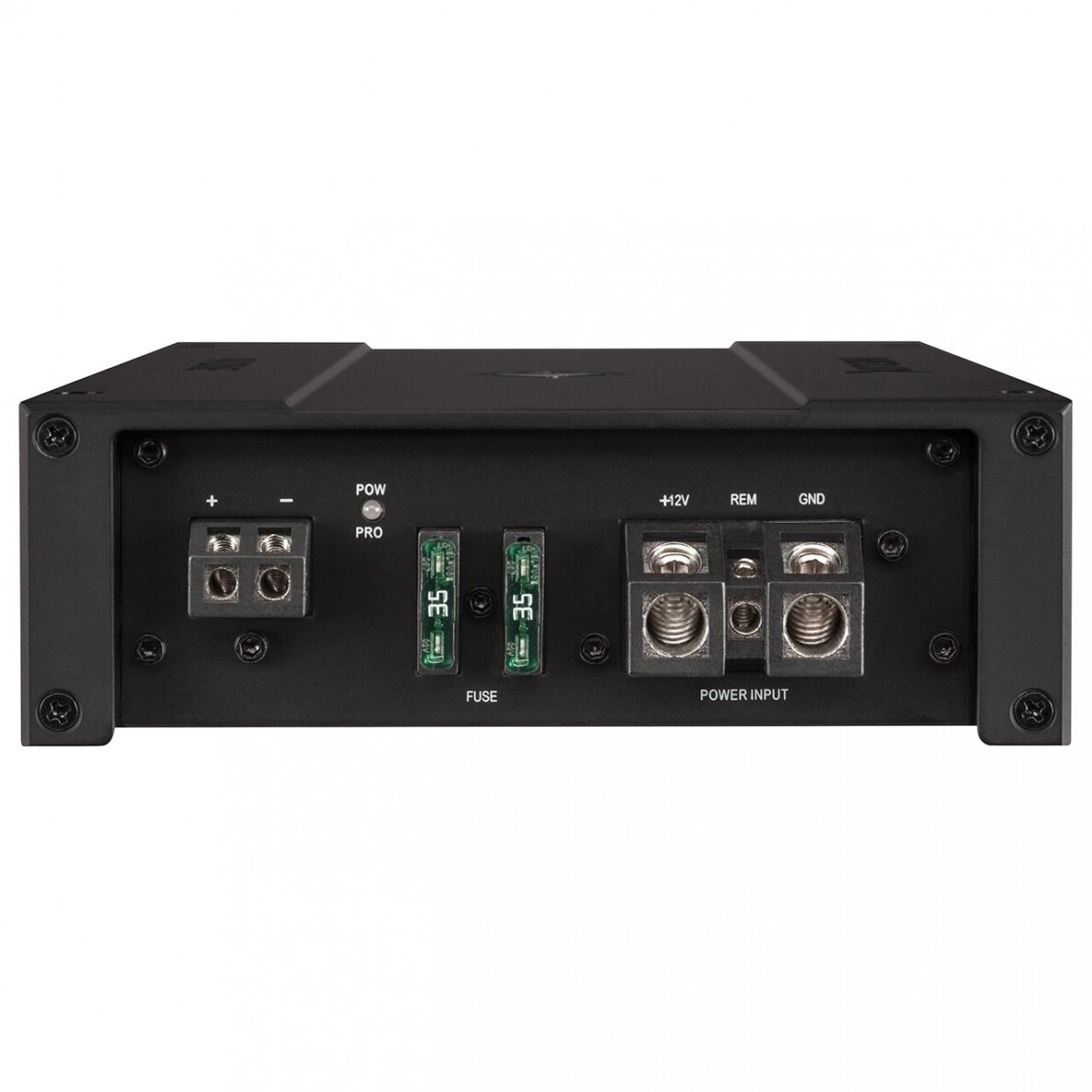

Fuse 2 x 35 A Maxi-fuse (APX)
Additional features Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
Dimensions (H x W x D) 50 x 230 x 154 mm /
2.00 x 9.06 x 6.06”
