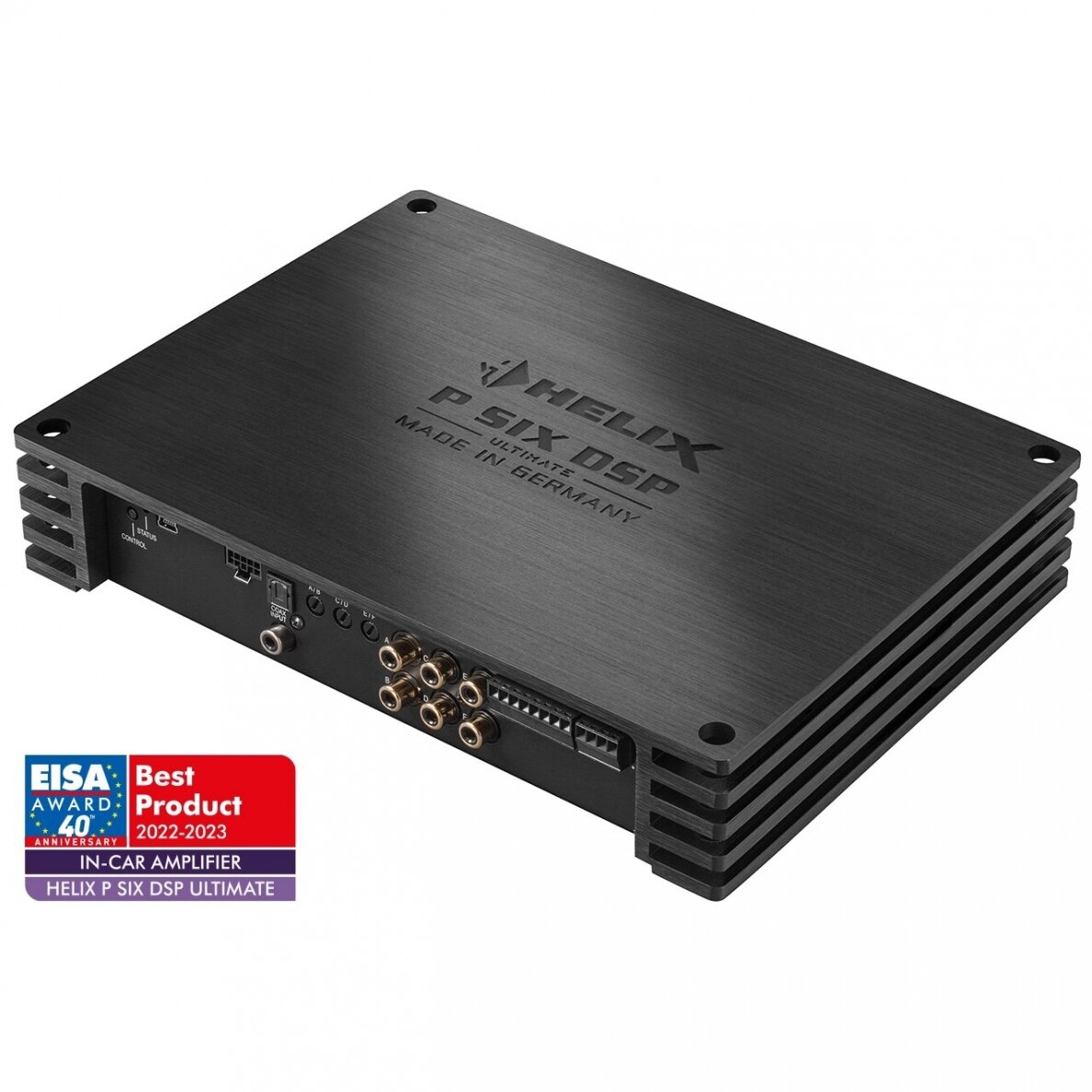

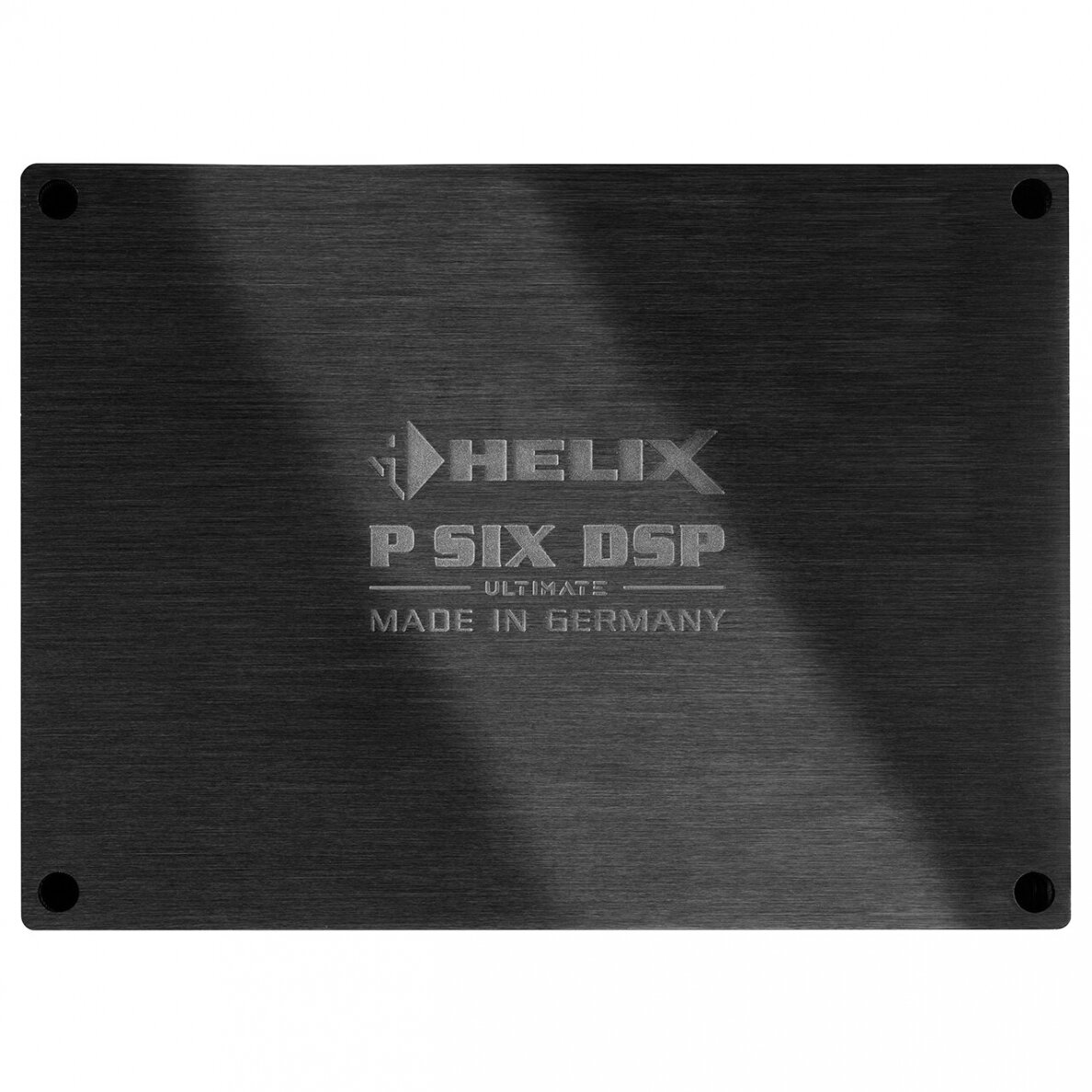

Helix P SIX DSP Ultimate

Technical data

Power RMS ≤ 1% THD+N
- @ 4 Ohms Channel A - F: 6 x 120 Watts
- @ 2 Ohms Channel C - F: 4 x 230 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
Max. output power per channel* Channel A - F: up to 145 Watts RMS @ 4 Ohms
Channel C - F: up to 285 Watts RMS @ 2 Ohms
Amplifier technology Ultra HD Class D

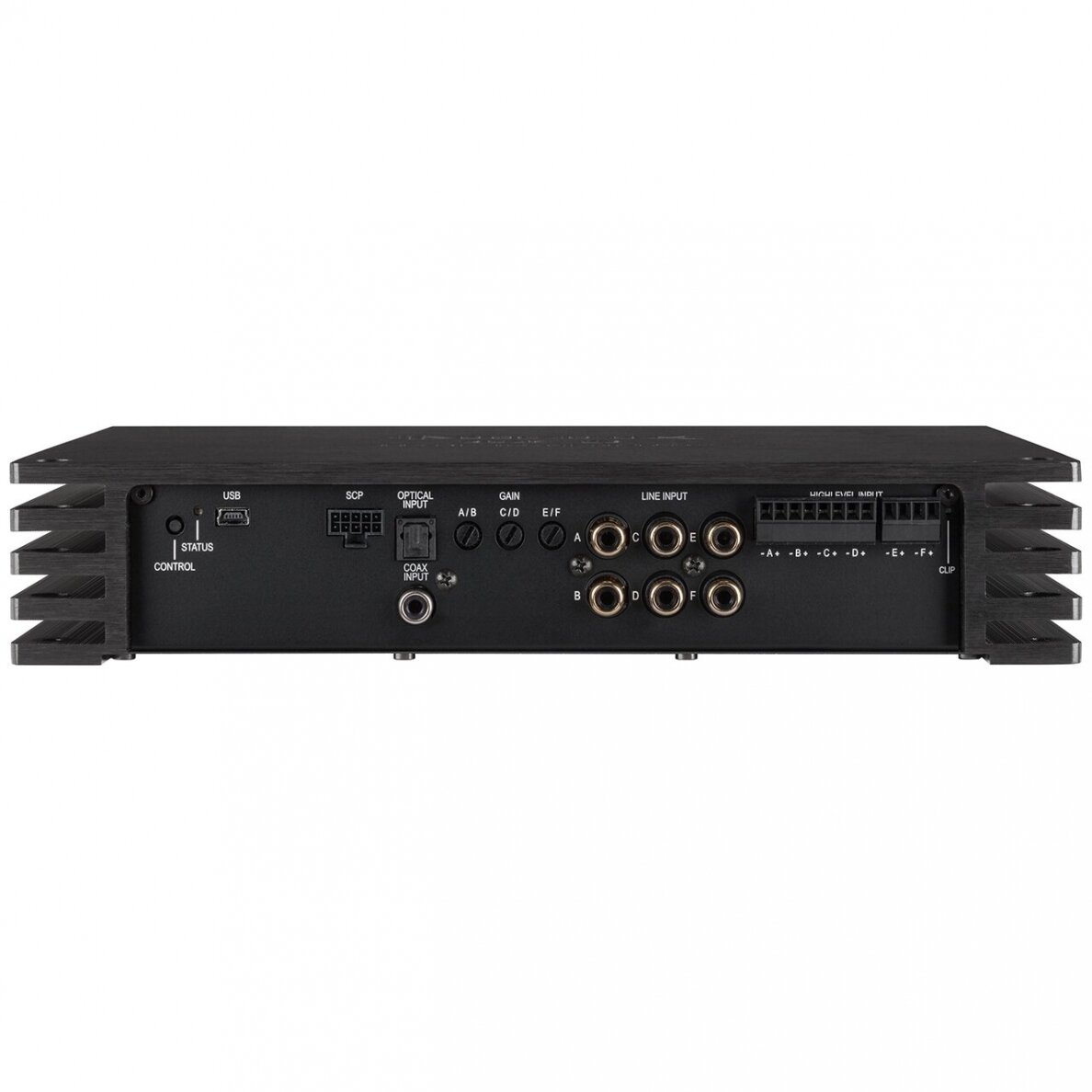

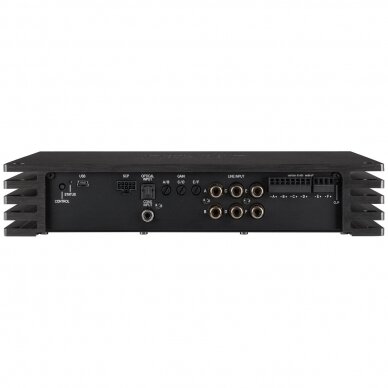

Inputs 6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivity RCA / Cinch 1 - 4 Volts or 4 - 8 Volts
Highlevel 4 - 16 Volts or 8 - 32 Volts
Input impedance RCA / Cinch 13 kOhms
Input impedance highlevel 9 - 33 Ohms with ADEP.3

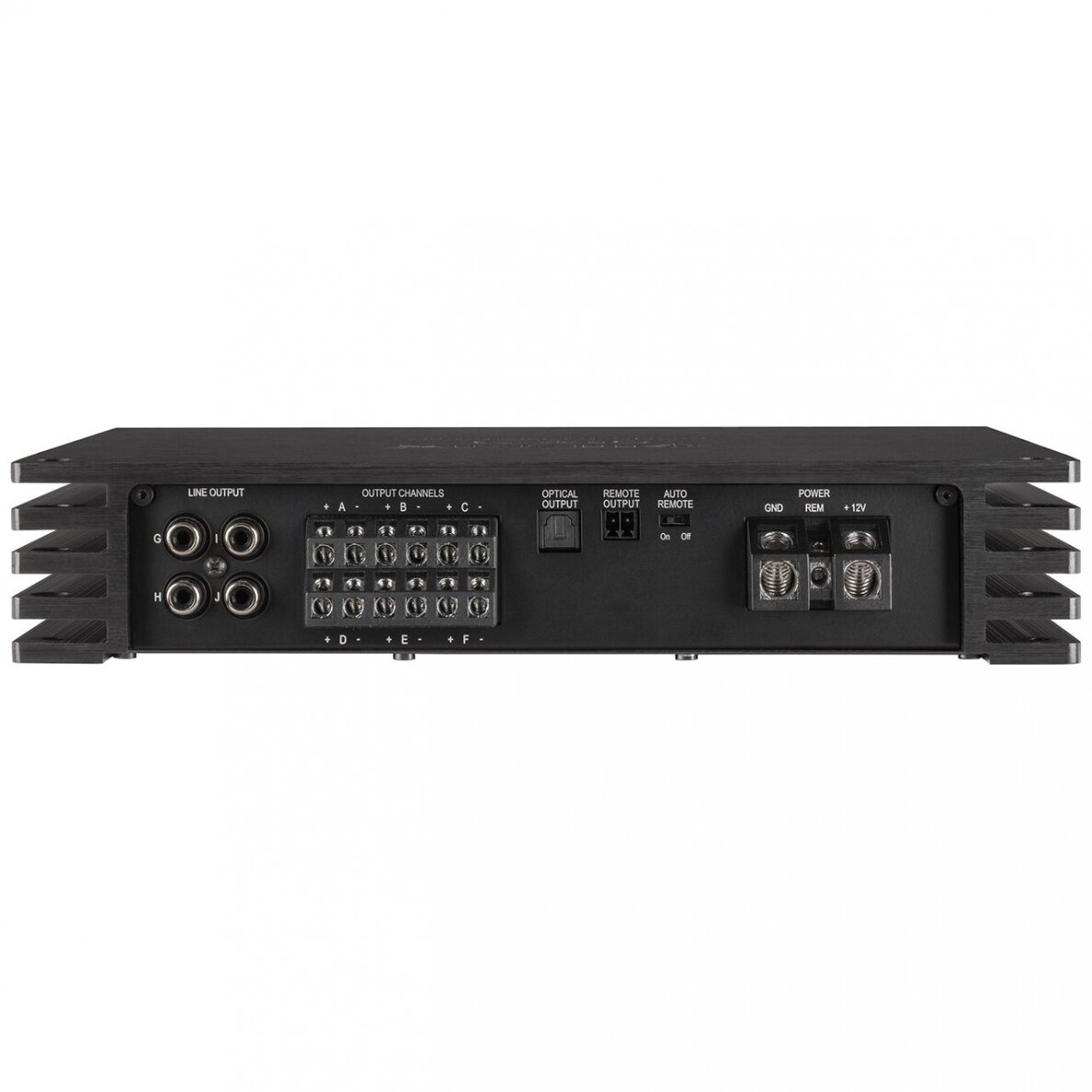

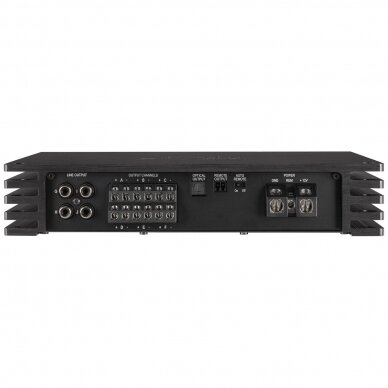

Outputs 6 x Speaker output
4 x RCA / Cinch
1 x Optical SPDIF (96 kHz)
2 x Remote Out
Output voltage RCA / Cinch 3 Volts
Frequency response 10 Hz - 44,000 Hz
DSP resolution 64 Bit
DSP power 2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate 96 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 108 dB (A-weighted)
Signal-to-noise ration analog input 102 dB (A-weighted)
Distortion (THD) < 0,004 %
Damping factor > 100
Operating voltage 10.5 - 32 Volts (max. 5 sec.down to 6 Volts)
Power rating DC 12 / 24 V ⎓ 65 A max.
Idle current 1350 mA
Max. remote output current 500 mA
Operating temperature range -40° C to +70° C
Fuse 3 x 20 A LP-Mini-fuse (APS)
Additional features 32 Bit CoProcessor, HEC slot, ADEP circuit, Auto Remote switch, Smart Control Port
Dimensions (H x W x D) 50 x 260 x 190 mm /
1.97 x 10.24 x 7.48“
