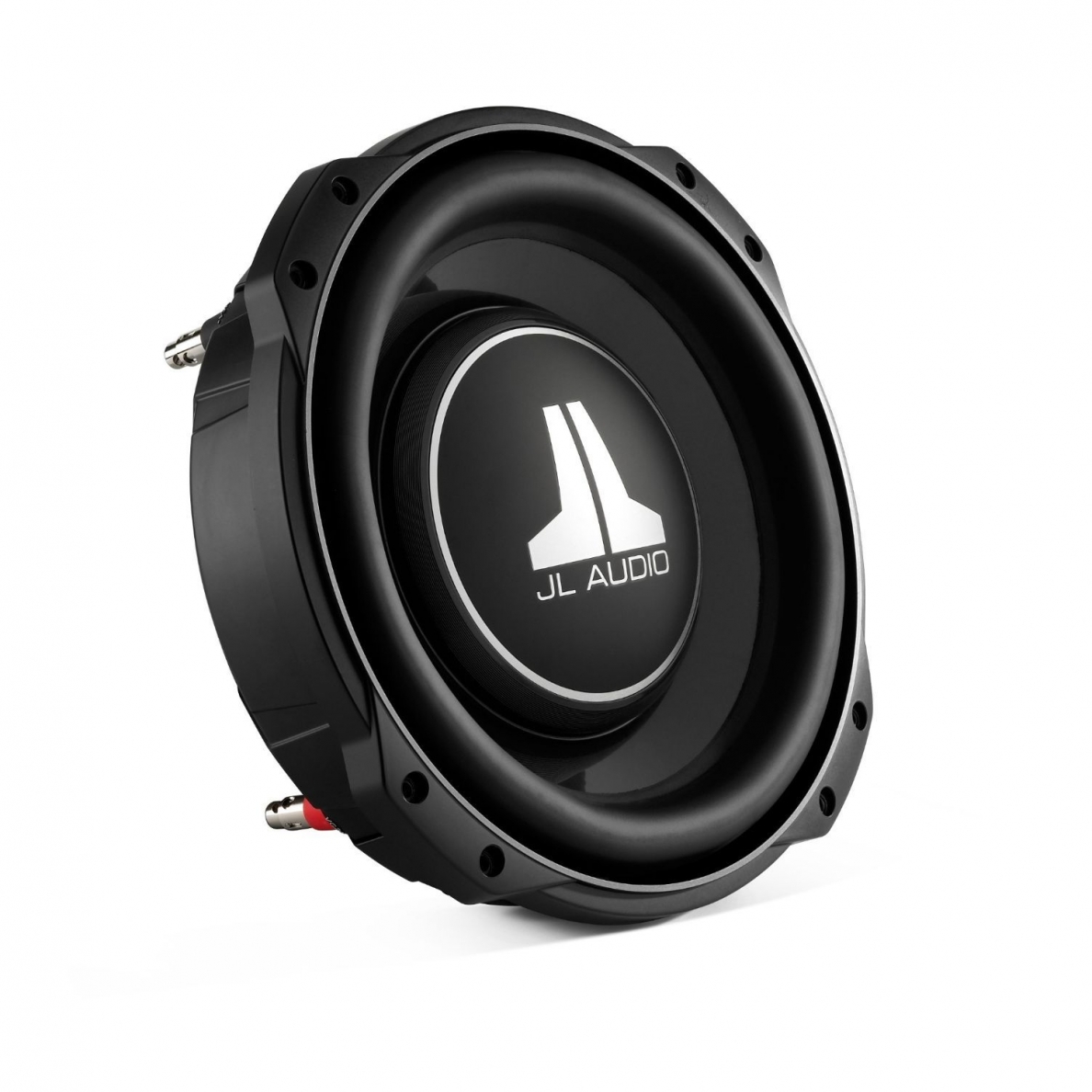

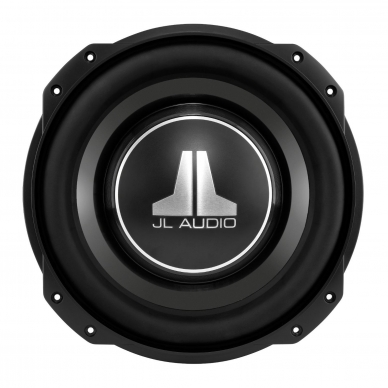

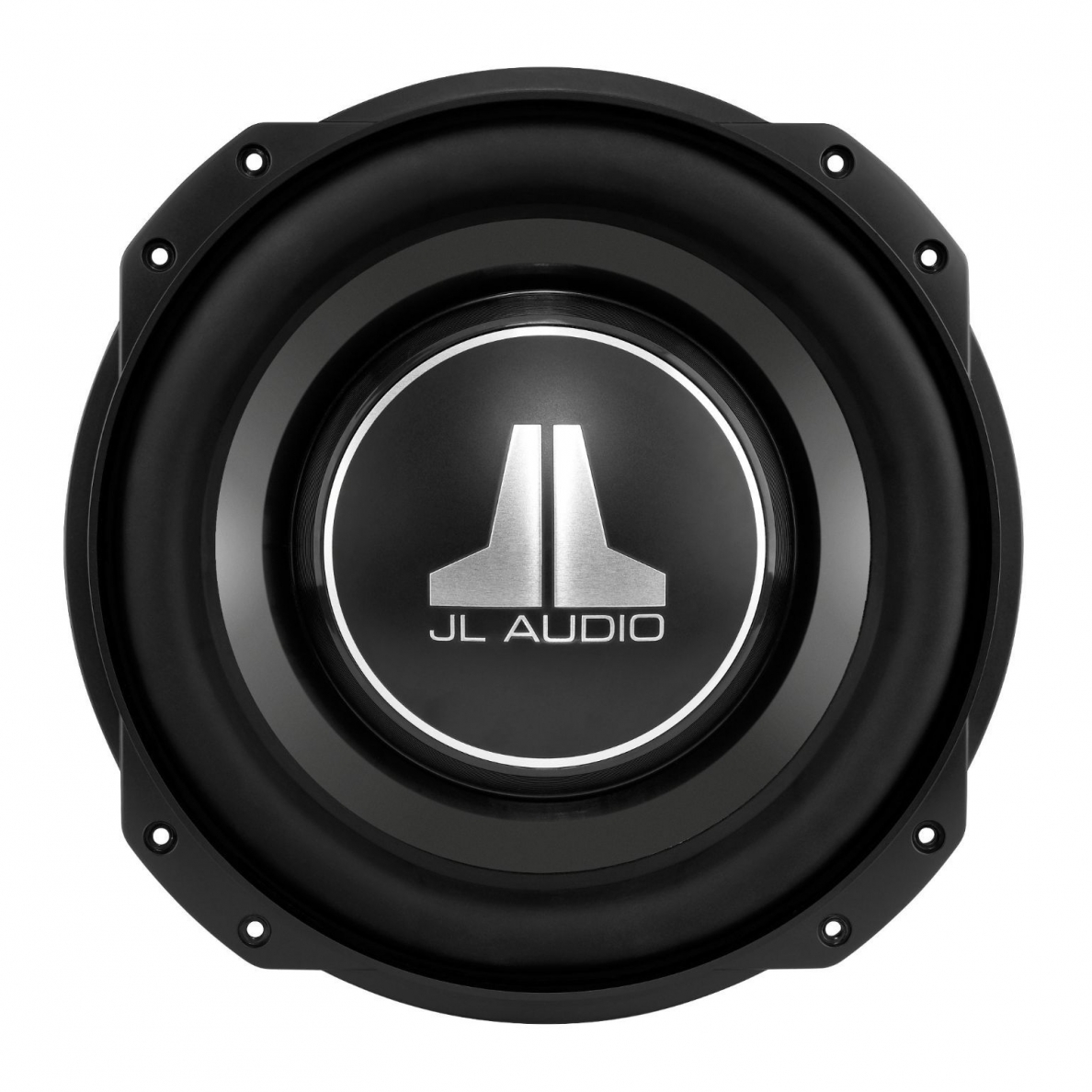

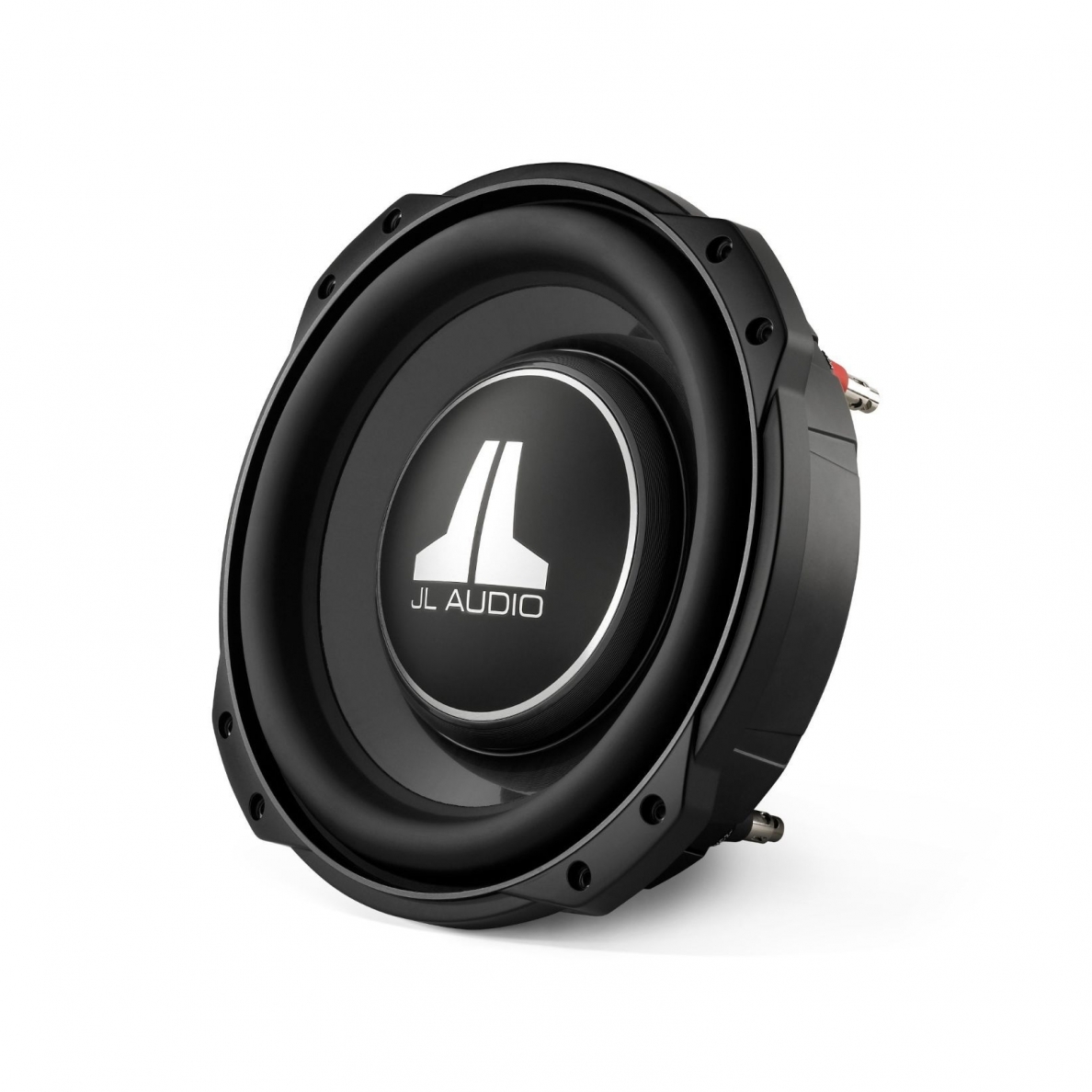

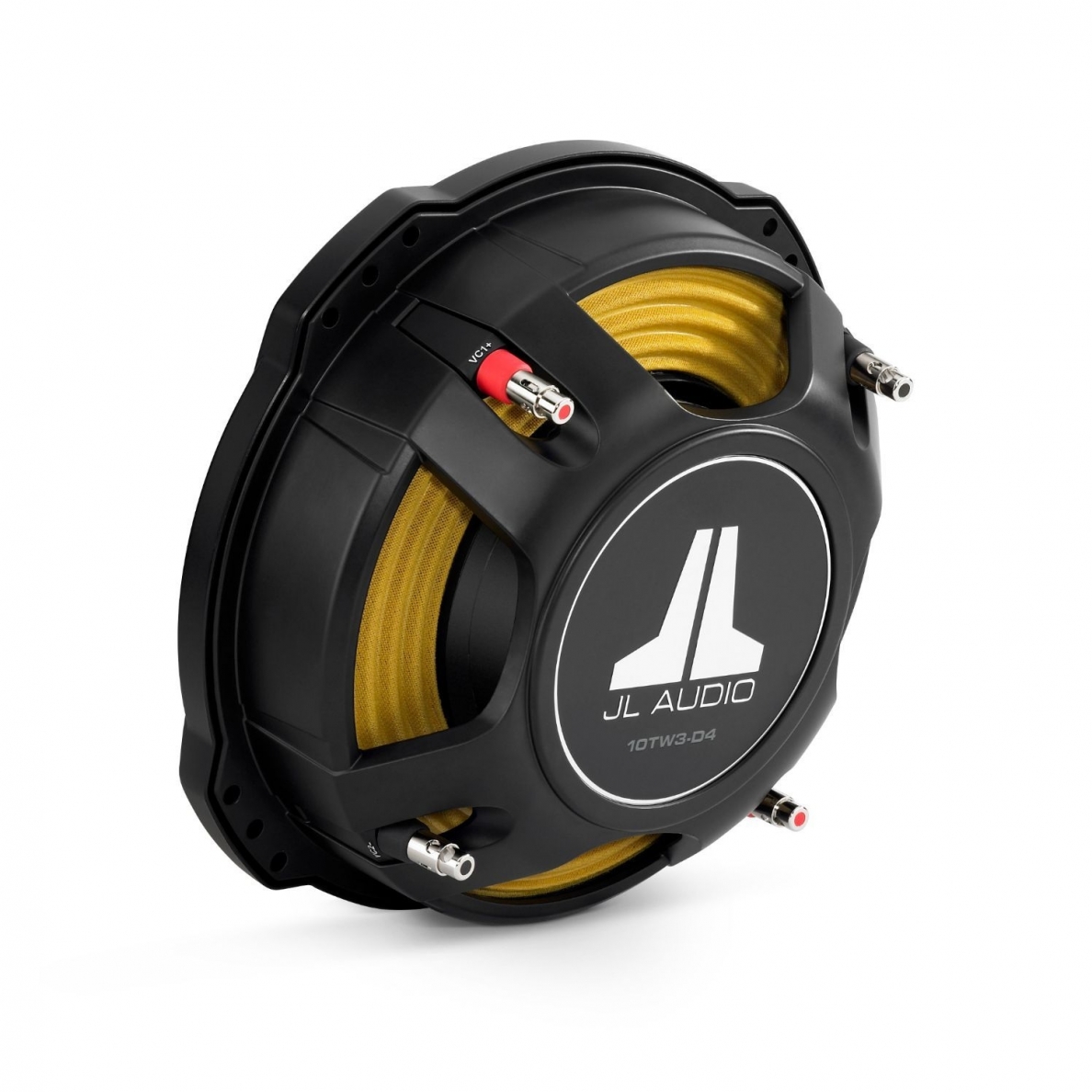

JL Audio 10TW3-D4
JL Audio 10TW3-D4
GamintojasSkersmuo10" (254mm)-
Continuous Power Handling (RMS) 400 W
Recommended Amplifier Power (RMS) 200 - 400 W
Nominal Impedance (Znom) Dual 4 Ω
Nominal Diameter 10 in / 250 mm
Overall Diameter (A) A1: 11.2 in / 284 mm
A2: 10.5 in / 267 mm
Mounting Hole Diameter (B) 9.625 in / 244 mm
Bolt Hole Circle Diameter (C) 10.5 in / 267 mm
Motor Outer Diameter (D) 5.1 in / 130 mm
Mounting Depth (E) 3.25 in / 83 mm
Driver Displacement 0.019 cu ft / 0.54 L
Net Weight 10.1 lb / 4.6 kg
