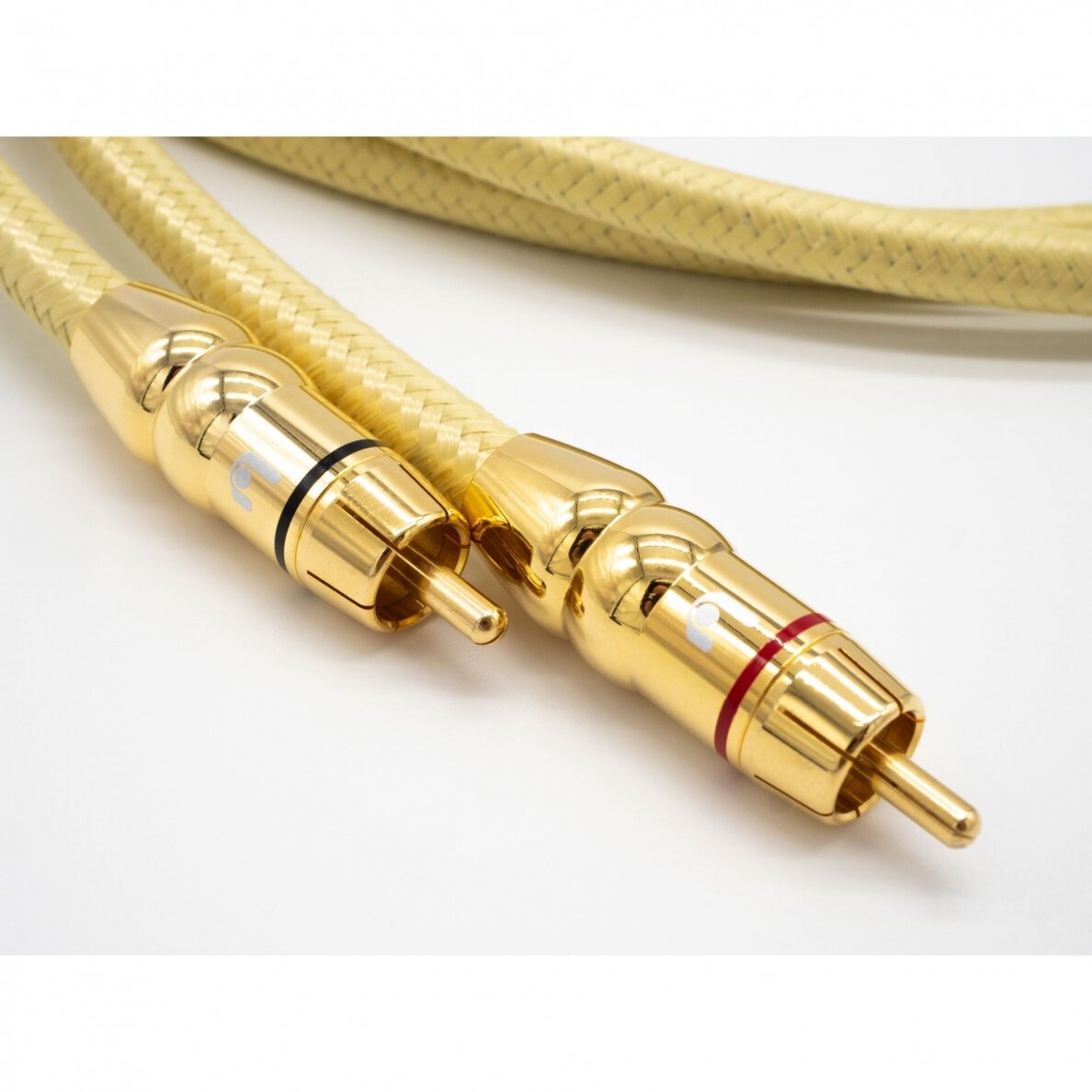

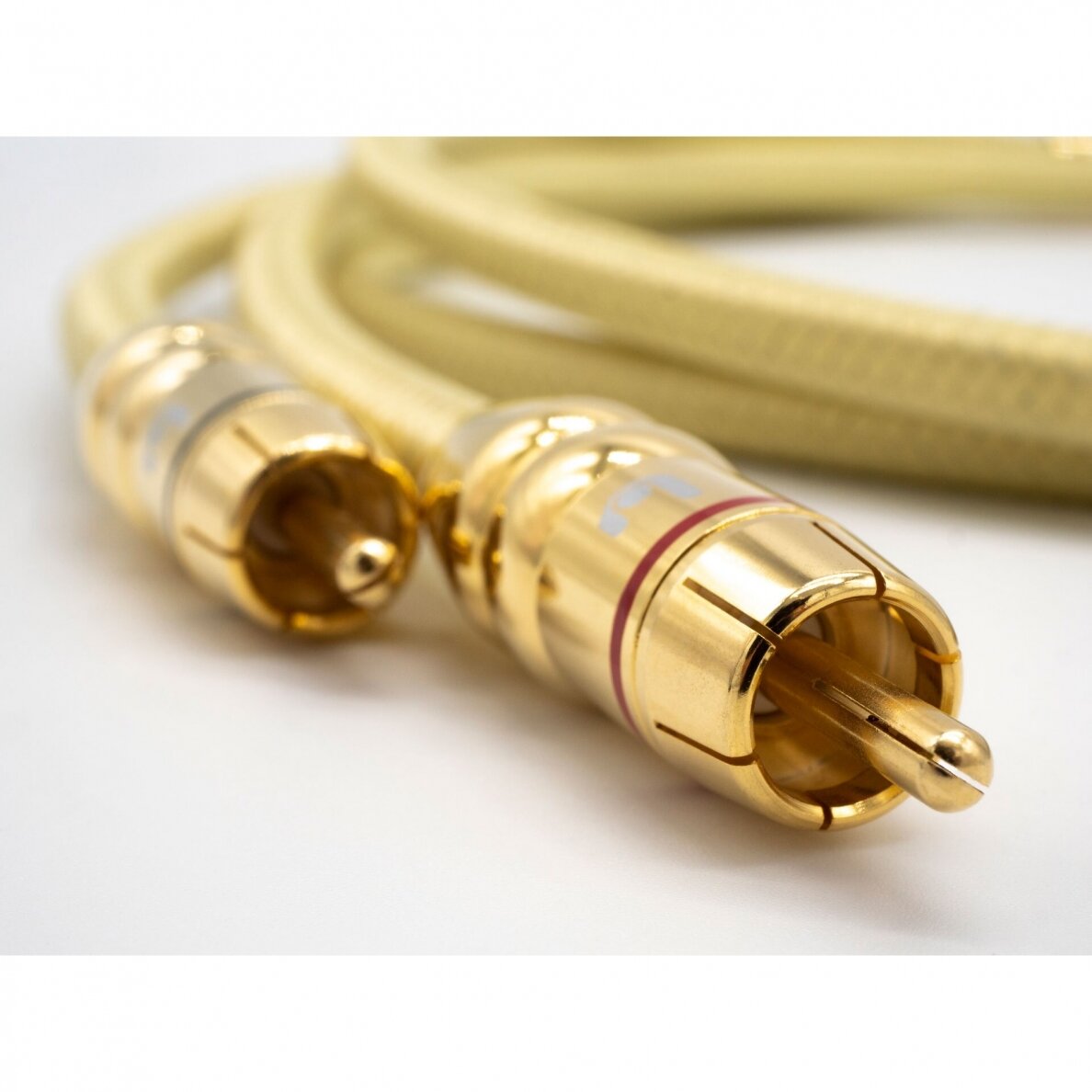

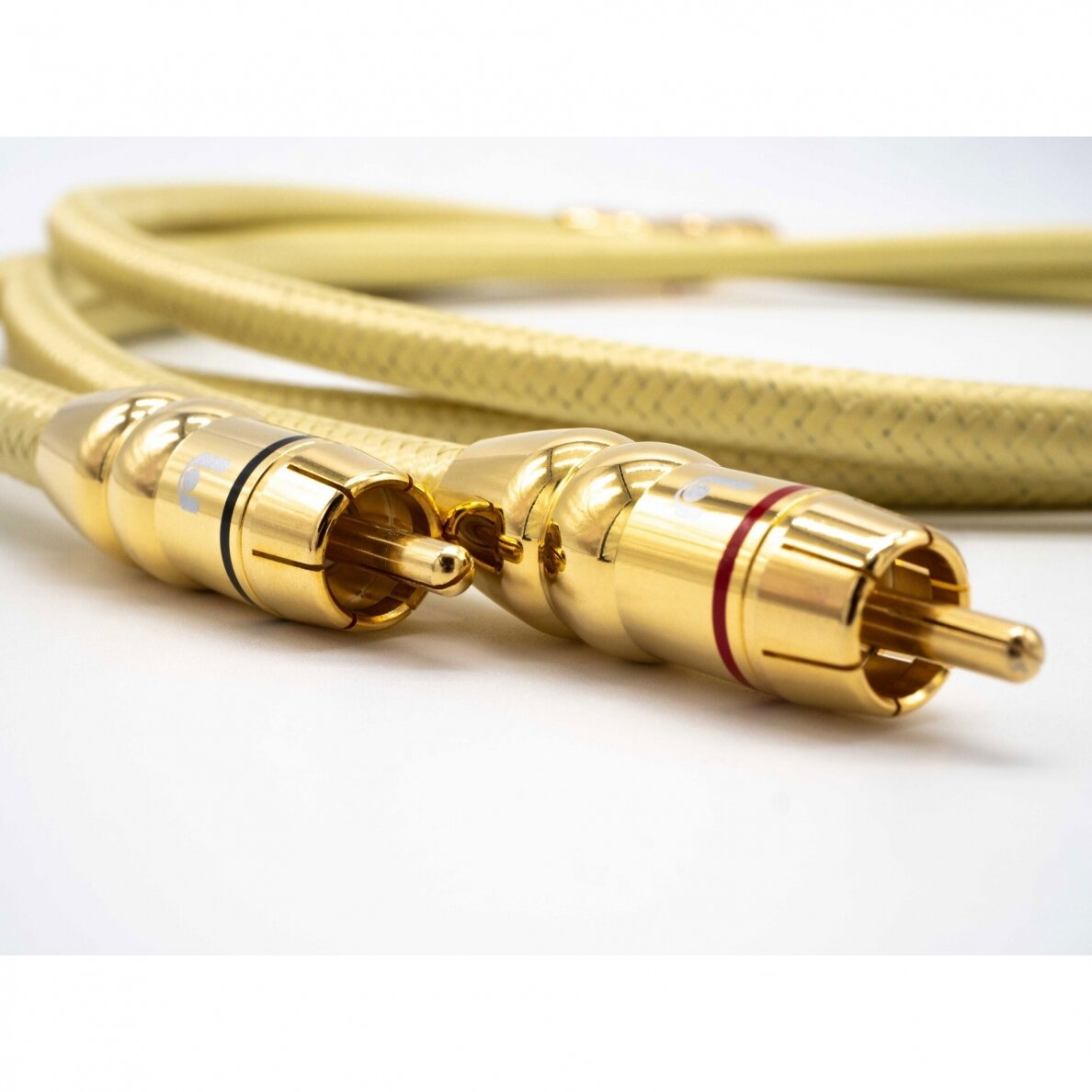

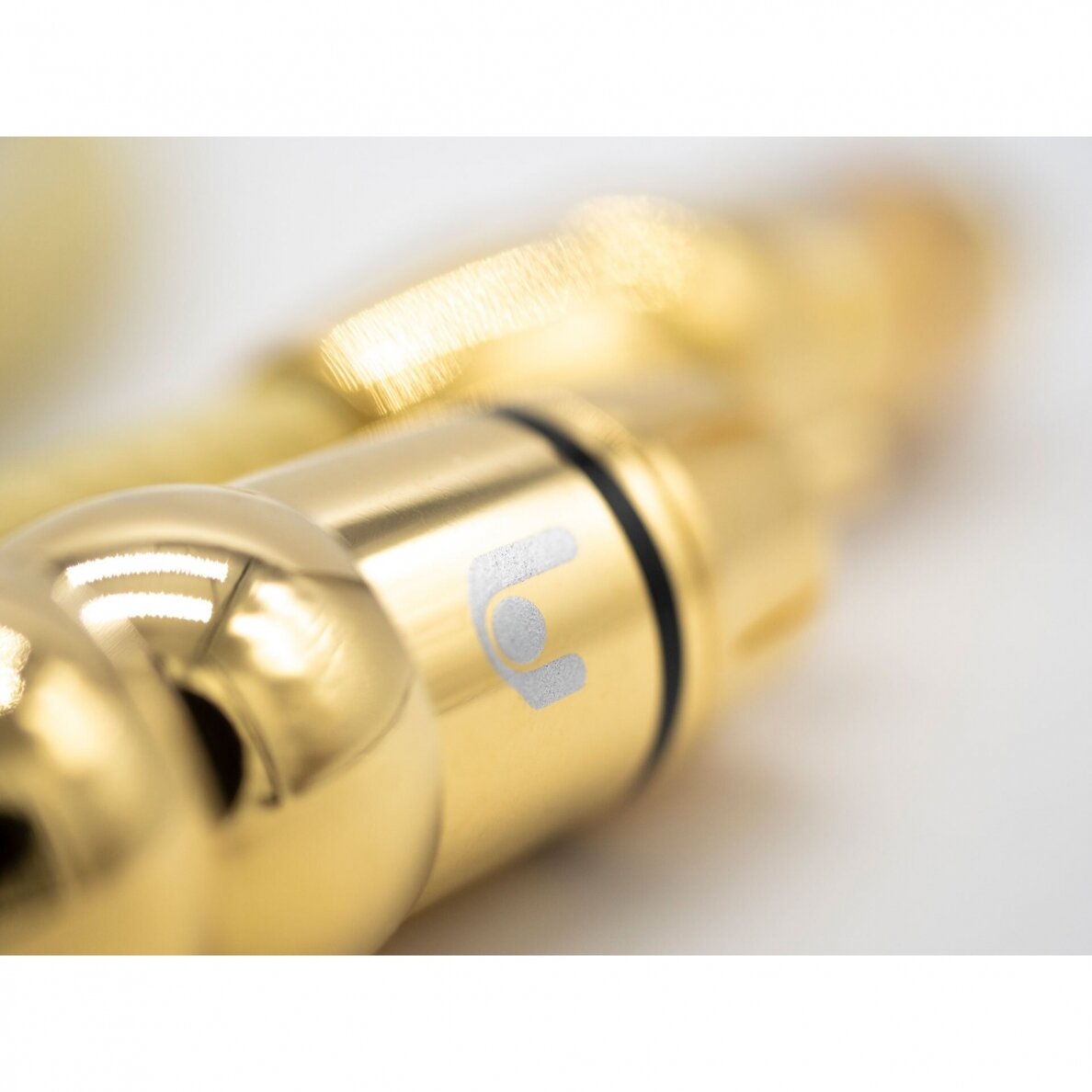

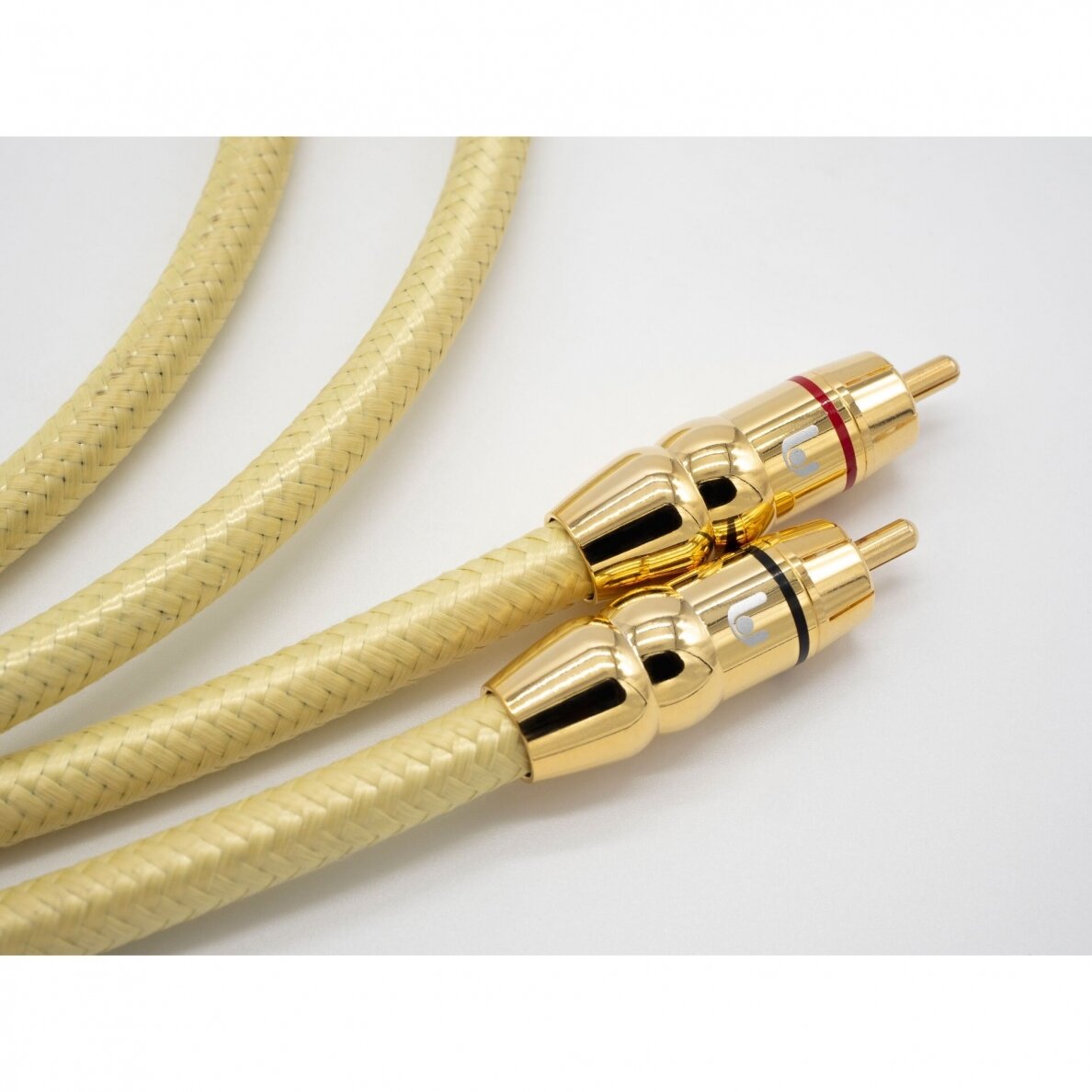

Quartorigo CORDA 1M

Outer diameter 7.50 mm
Operating temperature range -15°C ÷ 90°C
Conductor Material Bare Copper Cu ETP 5649/88
Conductor Formation Strand 28x0.10 mm
Conductor Section 0.22mm2
Insulation Material Cross-linked polyolefin
Insulation Diameter 2.00 mm
Overall shield Double wound-up spiral shield.Bare copper wires, 0,10 mm diameter.
Wrapping No-woven Aluminium coated Tape
Outer Jacket Material Special technopolymer
Outer Jacket Diameter 7.10 mm

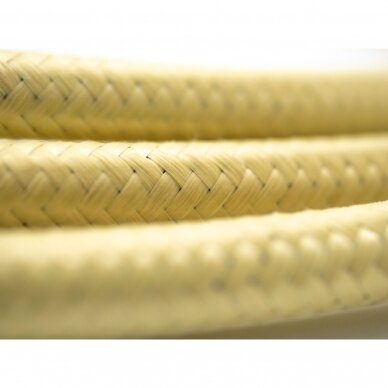

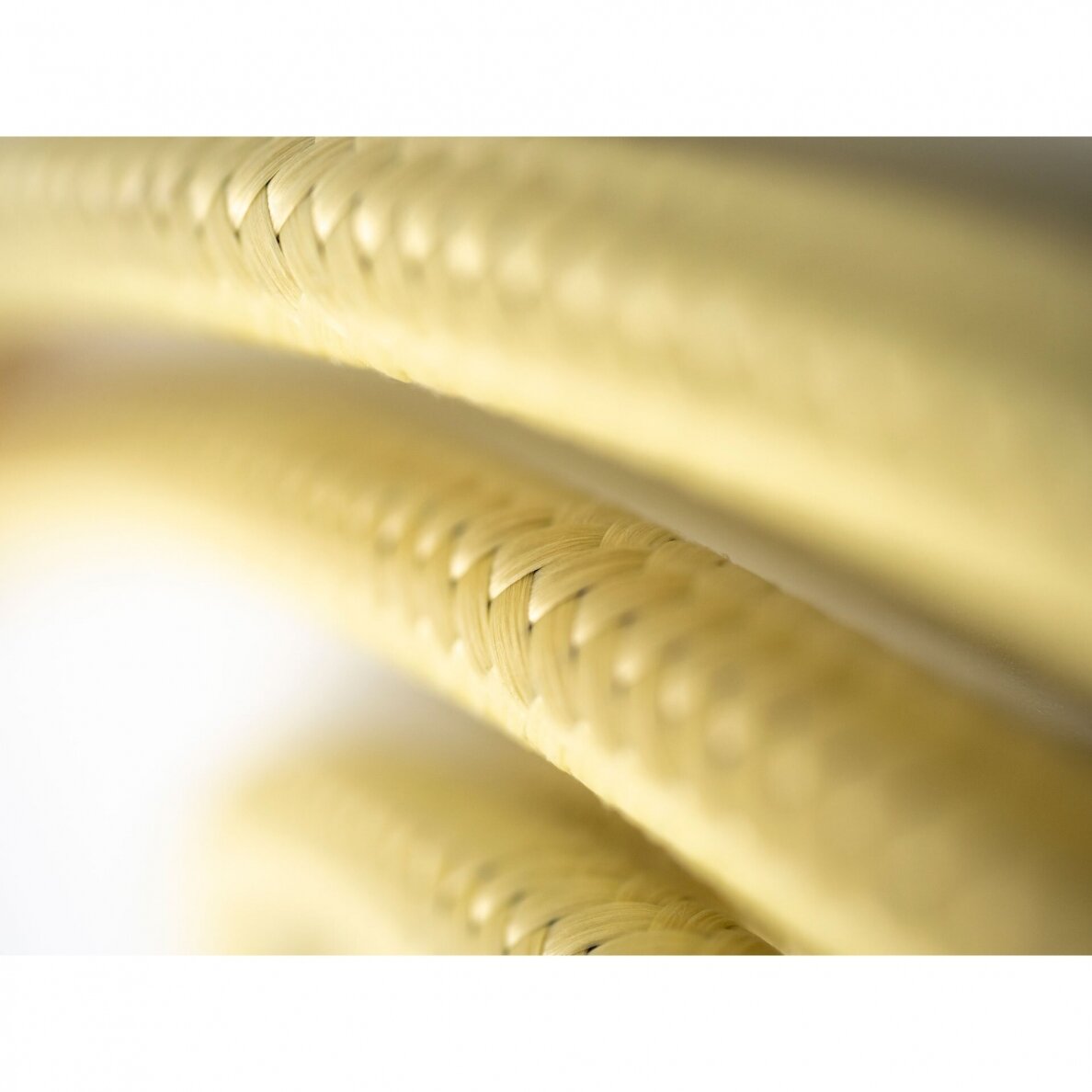

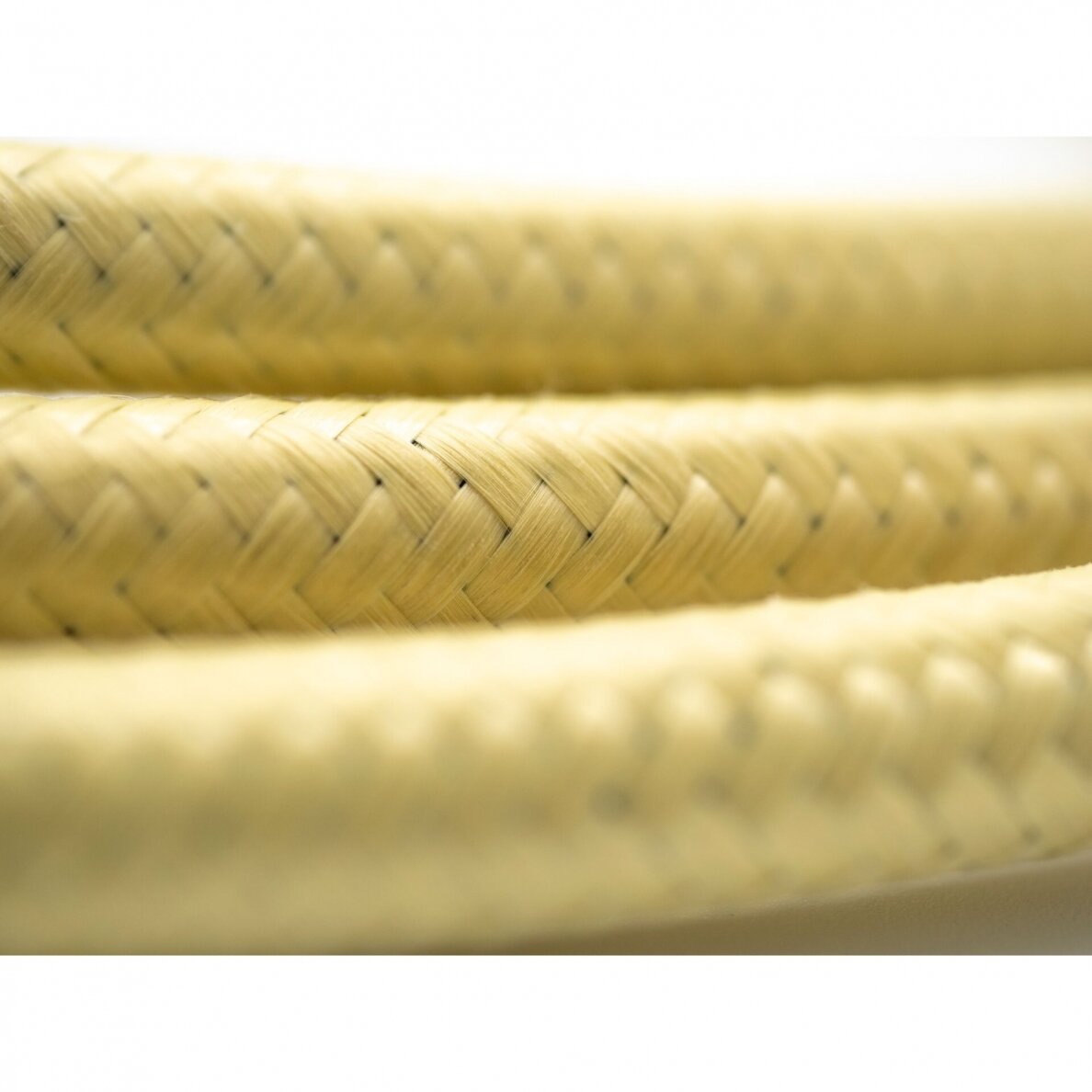

Braid element Kevlar (aramid fiber)
Test Voltage 1000 Va.c. x 1’
Conductor DC resistance ≤ 83 Ω/km (at 20°C)
